57350001-A DSTV110视频板连接单元 PDF资料
1.产 品 资 料 介 绍：
57350001-A DSTV110 视频板连接单元
产品概述
DSTV110 是一种工业级视频板连接单元，用于将工业视频采集设备（如摄像头、图像传感器）与控制系统或处理模块进行可靠连接和信号传输。它通常用于监控、视觉检测、远程观察等场景，确保图像数据稳定、高效传输。
主要功能
信号接口：支持模拟或数字视频信号输入与输出，兼容工业标准接口类型。
数据传输：将视频信号传输至控制器或显示终端，实现远程监控和记录。
模块化设计：可方便地与DST系列其他模块组合，快速安装和维护。
状态指示：LED 指示灯显示工作状态和通信状态，便于故障诊断。
信号保护：具备过压、过流和电磁干扰保护功能，保证工业环境下稳定运行。
技术参数
输入信号：复合视频或工业数字视频接口（具体型号视系统而定）
输出接口：向处理器或显示单元提供标准视频信号
电源要求：符合工业标准的直流电源供电
工作温度：-20℃ ~ +60℃
安装方式：机架式或面板式安装，便于扩展和维护
尺寸：紧凑设计，占用空间小
应用场景
工业自动化系统的视觉监控与图像采集
远程站点视频监控与数据传输
过程控制系统中需要实时图像反馈的场景
能源、化工、冶金及生产线自动检测系统
维护与操作
模块化便捷性：可快速插拔，降低维护成本
诊断功能：通过状态指示灯快速定位连接或信号异常
兼容性：与DST系列其他I/O模块和控制器完全兼容
优势特点
高可靠性和工业环境适应性
易于集成到现有自动化控制系统
实时图像传输，支持远程监控与控制
模块化设计，便于系统扩展
57350001-A DSTV110视频板连接单元 英文介绍
57350001-A DSTV110 video board connection unit
Product Overview
DSTV110 is an industrial grade video board connection unit used to reliably connect and transmit signals between industrial video capture devices (such as cameras, image sensors) and control systems or processing modules. It is usually used in monitoring, visual inspection, remote observation and other scenarios to ensure stable and efficient transmission of image data.
Main functions
Signal interface: Supports analog or digital video signal input and output, compatible with industry standard interface types.
Data transmission: Transmit video signals to controllers or display terminals for remote monitoring and recording.
Modular design: It can be easily combined with other modules in the DST series for quick installation and maintenance.
Status indication: LED indicator lights display the working and communication status, facilitating fault diagnosis.
Signal protection: It has overvoltage, overcurrent, and electromagnetic interference protection functions to ensure stable operation in industrial environments.
Technical Specifications
Input signal: Composite video or industrial digital video interface (specific model depends on the system)
Output interface: Provide standard video signals to the processor or display unit
Power requirements: DC power supply that meets industrial standards
Working temperature: -20 ℃~+60 ℃
Installation method: rack or panel installation, easy to expand and maintain
Size: Compact design, small footprint
Application scenarios
Visual Monitoring and Image Acquisition of Industrial Automation Systems
Remote site video surveillance and data transmission
Scenarios requiring real-time image feedback in process control systems
Automatic detection system for energy, chemical, metallurgical and production lines
Maintenance and operation
Modular convenience: can be quickly plugged in and out, reducing maintenance costs
Diagnostic function: Quickly locate connection or signal abnormalities through status indicator lights
Compatibility: Fully compatible with other I/O modules and controllers in the DST series
Advantages and Features
High reliability and adaptability to industrial environments
Easy to integrate into existing automation control systems
Real time image transmission, supporting remote monitoring and control
Modular design for easy system expansion

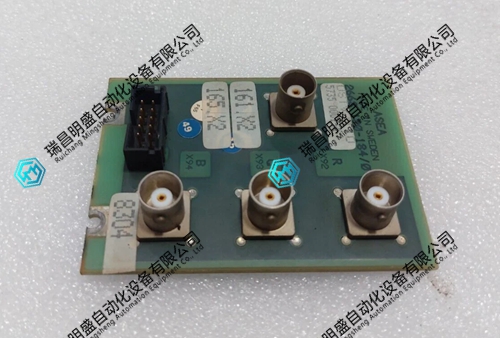

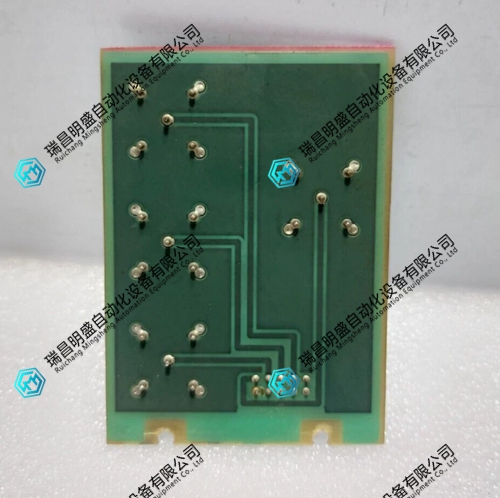

57350001-A DSTV110视频板连接单元 产品展示
