3BSE022366R1通信接口模块 PDF资料
1.产 品 资 料 介 绍：
3BSE022366R1 通信接口模块是 ABB 自动化控制系统中的一款通信单元，主要用于控制器与现场设备或分布式 I/O 之间的数据通信，属于系统里的关键“通信桥梁”。
核心作用
系统通信接口
连接主控制器（PLC / DCS）与远程 I/O、驱动器、仪表或其他智能设备。
负责现场数据的实时上传与控制指令的下发。
工业总线通讯
支持工业现场常用的通信方式（如现场总线/工业网络）。
保证数据传输的稳定性、实时性和抗干扰能力。
分布式控制支持
在分布式 I/O 架构中作为通信节点使用。
让控制系统可以灵活扩展，而不受物理距离限制。
工作方式（通俗理解）
模块安装在控制系统机架或 I/O 站中；
一侧与主控制器相连，另一侧接现场通信电缆；
实时接收现场设备状态数据并上传；
同时把控制器的指令发送到现场执行设备；
通过指示灯或诊断信息反映通信状态，方便维护。
典型应用场景
ABB DCS / PLC 系统中的通信接口
工业生产线分布式 I/O 系统
电力、石化、水处理、制造业自动化控制系统
控制器与远程设备、仪表之间的通信连接
3BSE022366R1通信接口模块 英文介绍
The 3BSE022366R1 communication interface module is a communication unit in ABB automation control systems, mainly used for data communication between controllers and field devices or distributed I/O. It is a key "communication bridge" in the system.
core function
System communication interface
Connect the main controller (PLC/DCS) with remote I/O, drivers, instruments, or other intelligent devices.
Responsible for real-time uploading of on-site data and issuing control instructions.
Industrial bus communication
Support commonly used communication methods in industrial sites (such as fieldbus/industrial network).
Ensure the stability, real-time performance, and anti-interference ability of data transmission.
Distributed control support
Used as a communication node in distributed I/O architecture.
Enable the control system to expand flexibly without being limited by physical distance.
Working method (in layman's terms)
The module is installed in the control system rack or I/O station;
One side is connected to the main controller, and the other side is connected to the on-site communication cable;
Real time reception and uploading of on-site equipment status data;
Simultaneously sending the instructions of the controller to the on-site execution device;
Reflecting communication status through indicator lights or diagnostic information for easy maintenance.
Typical application scenarios
Communication interface in ABB DCS/PLC system
Distributed I/O System for Industrial Production Line
Automation control systems for power, petrochemical, water treatment, and manufacturing industries
Communication connection between controller and remote devices, instruments

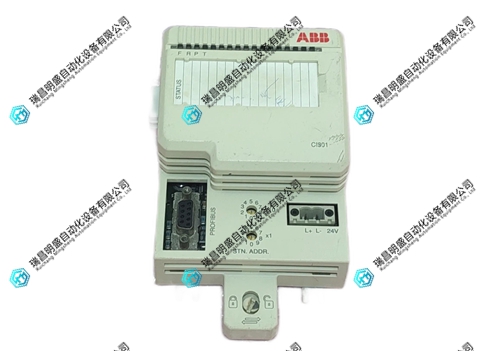

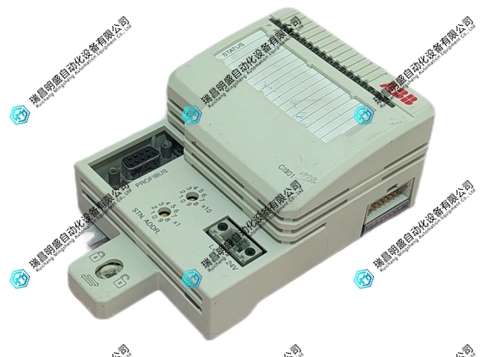

3BSE022366R1通信接口模块 产品展示
