Motorola POWERCORE CPCI-6750单板计算机 PDF资料

1.产 品 资 料 介 绍：

Motorola POWERCORE CPCI-6750 单板计算机

产品概述

Motorola POWERCORE CPCI-6750 是一款基于 CompactPCI（CPCI）总线架构的高性能单板计算机（SBC），采用 PowerPC 处理器，面向嵌入式控制、工业自动化、通信系统和实时数据处理场景。该模块集成了 CPU、内存、I/O 接口及总线控制功能，可作为系统核心处理单元，与其他 CPCI 模块协同工作，实现高性能数据处理、设备控制和可靠通信。

技术参数

• 处理器：Motorola PowerPC 系列 CPU

• 内存：

• RAM：64 MB – 512 MB，可扩展

• Flash/ROM：用于引导程序和固件

• NVRAM：带实时时钟

• 总线接口：CompactPCI（CPCI）标准，支持 32/64 位数据传输

• I/O 接口：

• 多路串行接口（RS-232/RS-422/RS-485）

• 并行接口

• 以太网接口（可选）

• 控制功能：

• DMA 数据传输

• 总线仲裁与中断管理

• 定时器和看门狗

• 系统兼容性：支持 VxWorks、Linux 等实时操作系统

• 工作环境：工业级设计，抗干扰能力强，适合长时间连续运行

应用场景

1. 工业自动化控制

• 核心控制单元管理生产线、PLC 系统和工业设备的数据采集与执行。

2. 嵌入式实时控制系统

• 多任务高速处理，实时控制和信号反馈。

3. 测试与测量系统

• 数据采集、实验控制及信号处理平台。

4. 通信与网络嵌入式系统

• 嵌入式网络节点、协议处理和数据交换。

5. 能源与电力系统

• 实时监控和控制发电、变电及配电系统。

6. 科研与仿真系统

• 实时数据处理和嵌入式控制实验平台。

Motorola  POWERCORE CPCI-6750单板计算机 英文资料：

Motorola POWERCORE CPCI-6750 Single Board Computer

Product Overview

Motorola POWERCORE CPCI-6750 is a high-performance single board computer (SBC) based on the CompactPCI (CPCI) bus architecture, using a PowerPC processor, aimed at embedded control, industrial automation, communication systems, and real-time data processing scenarios. This module integrates CPU, memory, I/O interface, and bus control functions, and can serve as the core processing unit of the system. It works in conjunction with other CPCI modules to achieve high-performance data processing, device control, and reliable communication.

Technical Specifications

Processor: Motorola PowerPC series CPU

Memory:

RAM：64 MB – 512 MB， scalable

Flash/ROM: Used for booting programs and firmware

NVRAM: with real-time clock

Bus interface: CompactPCI (CPCI) standard, supports 32/64 bit data transfer

I/O interface:

Multi channel serial interface (RS-232/RS-422/RS-485)

Parallel Interface

Ethernet interface (optional)

Control function:

DMA data transfer

Bus arbitration and interrupt management

Timer and watchdog

System compatibility: Supports real-time operating systems such as VxWorks and Linux

Work environment: Industrial grade design, strong anti-interference ability, suitable for long-term continuous operation

Application scenarios

industrial automation control

The core control unit manages the data collection and execution of production lines, PLC systems, and industrial equipment.

Embedded real-time control system

Multi task high-speed processing, real-time control, and signal feedback.

Testing and Measurement System

Data collection, experimental control, and signal processing platform.

Communication and Network Embedded Systems

Embedded network nodes, protocol processing, and data exchange.

Energy and Power Systems

Real time monitoring and control of power generation, transformation, and distribution systems.

Research and Simulation System

Real time data processing and embedded control experimental platform.

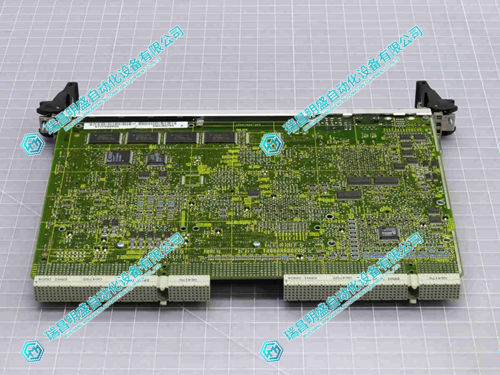

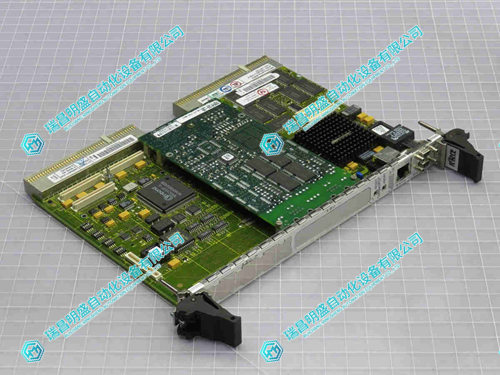

Motorola POWERCORE CPCI-6750单板计算机 产品展示
