DEIF OPM-1 输出模块 PDF资料
1.产 品 资 料 介 绍：
中文资料：
DEIF OPM-1 输出模块 是 DEIF 公司推出的一款用于发电机组控制系统中的输出模块，主要用于处理从控制系统向外部执行设备（如发电机、负载开关、继电器等）发出的控制信号。以下是该模块的详细介绍：
产品名称
品牌：DEIF
型号：OPM-1
类别：输出模块
产品概述
DEIF OPM-1 输出模块是 DEIF 发电机组自动化系统中的一部分，旨在提供控制输出功能。通过该模块，控制系统可以输出控制信号来驱动外部设备或执行器。OPM-1 模块支持多种输出方式，包括数字输出、模拟输出等，并可以与多种 DEIF 系列控制系统和模块配合使用。
主要功能
数字输出：支持数字信号输出，可以直接控制继电器、断路器、启停信号等。
模拟输出：提供模拟电压或电流信号，用于调节负载或其他设备的运行状态。
远程控制能力：OPM-1 可通过网络与远程监控系统进行通信，实现远程控制和管理。
可靠性高：具有过载保护和短路保护功能，确保在各种工况下稳定运行。
易于集成：与 DEIF 系列其他模块兼容，可以方便地集成进复杂的发电机组控制系统中。
技术规格
输出类型：数字输出（继电器驱动、开关控制）、模拟输出（电流、电压）
输出电流：通常为 0-1A（数字输出），0-20mA 或 0-10V（模拟输出），具体依据模块配置
工作电压：支持 24V DC 或其他电压输入，具体根据系统要求而定
工作温度范围：-20°C 到 +70°C
防护等级：一般为 IP20，适合安装于控制柜内部
安装方式：可在标准 19 英寸机架中安装，或根据系统需求进行定制安装
英文资料：
The DEIF OPM-1 output module is an output module developed by DEIF company for use in generator control systems. It is mainly used to process control signals sent from the control system to external executing devices such as generators, load switches, relays, etc. The following is a detailed introduction to the module:
product name
Brand: DEIF
Model: OPM-1
Category: Output Module
product overview
The DEIF OPM-1 output module is a part of the DEIF generator automation system, designed to provide control output functionality. Through this module, the control system can output control signals to drive external devices or actuators. The OPM-1 module supports multiple output modes, including digital output, analog output, etc., and can be used in conjunction with various DEIF series control systems and modules.
major function
Digital output: Supports digital signal output and can directly control relays, circuit breakers, start stop signals, etc.
Analog output: Provides analog voltage or current signals to regulate the operating status of loads or other devices.
Remote control capability: OPM-1 can communicate with remote monitoring systems through the network to achieve remote control and management.
High reliability: equipped with overload protection and short circuit protection functions, ensuring stable operation under various working conditions.
Easy to integrate: Compatible with other modules in the DEIF series, it can be easily integrated into complex generator control systems.
technical specifications
Output types: digital output (relay driven, switch controlled), analog output (current, voltage)
Output current: usually 0-1A (digital output), 0-20mA or 0-10V (analog output), depending on module configuration
Working voltage: Supports 24V DC or other voltage inputs, depending on system requirements
Working temperature range: -20 ° C to+70 ° C
Protection level: generally IP20, suitable for installation inside control cabinets
Installation method: It can be installed in a standard 19 inch rack or customized according to system requirements

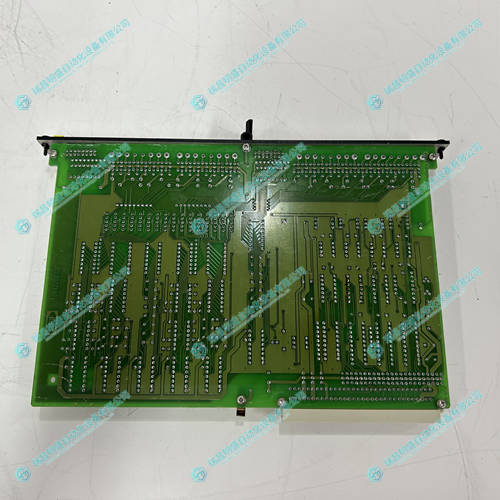

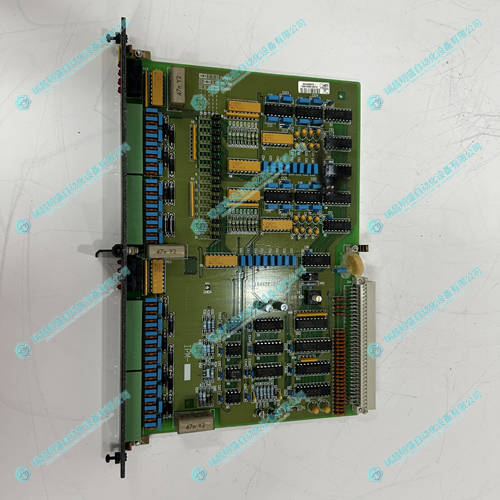

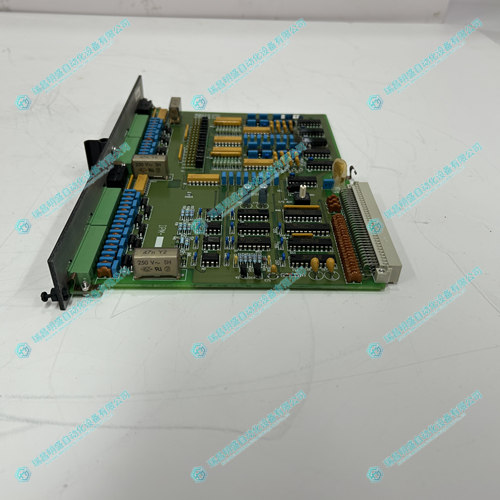

2.产 品 展 示
