3BHB003431R0001 励磁控制模块
1.产 品 资 料 介 绍：
中文资料：
3BHB003431R0001励磁控制模块是ABB的一种关键组件，广泛应用于电力发电领域，特别是用于控制发电机的励磁系统。以下是关于该励磁控制模块的一些主要特点和应用：
主要特点：
- 励磁系统控制：该模块主要用于调整发电机的磁场激励，从而控制电压和频率，确保发电机在运行时产生稳定的电力输出。
- 稳定性控制：3BHB003431R0001励磁控制模块通常具有确保电力系统稳定性的功能，这包括电压稳定性和频率稳定性。
- 通信接口：模块通常配备有通信接口，以便与其他电力系统组件、监控设备和控制系统进行通信。
- 保护功能：该模块具有发电机和励磁系统的保护功能，能够防止过载和故障。
- 可编程性：部分励磁控制模块支持编程，以适应不同类型的发电机和应用需求。
应用领域：
- 电力发电：3BHB003431R0001励磁控制模块通常用于控制各种类型的发电机，包括同步发电机和异步发电机，在电力发电厂中发挥着关键作用。
- 电力系统稳定性：对于确保电力系统的稳定性至关重要，特别是在负载变化和故障情况下，能够保持电力系统的稳定。
- 发电机保护：该模块还用于保护发电机，防止因过载、短路和其他可能的故障情况导致的损害。
- 电网控制：在电网控制系统中，该模块确保电力系统的稳定性和可靠性。
检查与维护：
在维护3BHB003431R0001励磁控制模块时，需要检查模块是否接地。在电源关闭的情况下，通过测量每个端子和位于端子9下方的接地螺栓，可以检查接地情况。通常，任一端子都可以接地，根据当地法规或通过其他设备供电。如果检测到接地电阻过高，可能需要进行进一步的排查和修复。
总之，3BHB003431R0001励磁控制模块是ABB电力发电解决方案中的重要组成部分，为发电机的稳定运行和电力系统的可靠性提供了关键支持。
英文资料
The 3BHB003431R0001 excitation control module is a key component of ABB, widely used in the field of power generation, especially for controlling the excitation system of generators. The following are some main characteristics and applications of the excitation control module:
Main features:
Excitation system control: This module is mainly used to adjust the magnetic field excitation of the generator, in order to control voltage and frequency, and ensure stable power output of the generator during operation.
Stability control: The 3BHB003431R0001 excitation control module usually has the function of ensuring the stability of the power system, including voltage stability and frequency stability.
Communication Interface: Modules are typically equipped with communication interfaces for communication with other power system components, monitoring equipment, and control systems.
Protection function: This module has protection functions for the generator and excitation system, which can prevent overload and faults.
Programmability: Some excitation control modules support programming to adapt to different types of generators and application requirements.
Application field:
Electric power generation: The 3BHB003431R0001 excitation control module is commonly used to control various types of generators, including synchronous and asynchronous generators, playing a crucial role in power plants.
Power system stability: It is crucial to ensure the stability of the power system, especially in the event of load changes and faults, to maintain the stability of the power system.
Generator protection: This module is also used to protect the generator from damage caused by overload, short circuit, and other possible fault situations.
Power grid control: In the power grid control system, this module ensures the stability and reliability of the power system.
Inspection and maintenance:
When maintaining the 3BHB003431R0001 excitation control module, it is necessary to check whether the module is grounded. With the power off, the grounding condition can be checked by measuring each terminal and the grounding bolt located below terminal 9. Usually, any terminal can be grounded and powered by local regulations or other equipment. If a high grounding resistance is detected, further investigation and repair may be necessary.
In summary, the 3BHB003431R0001 excitation control module is an important component of ABB's power generation solution, providing critical support for the stable operation of the generator and the reliability of the power system.

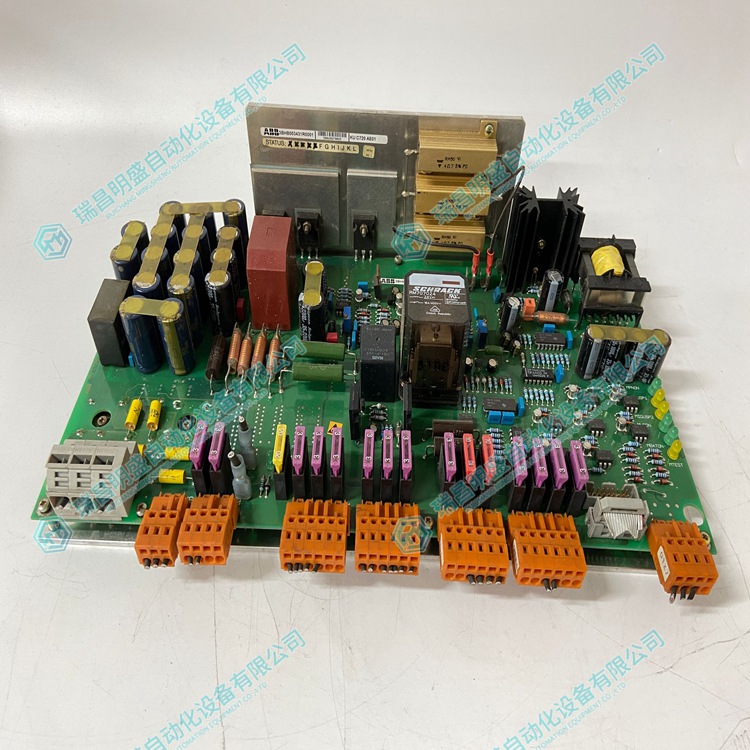

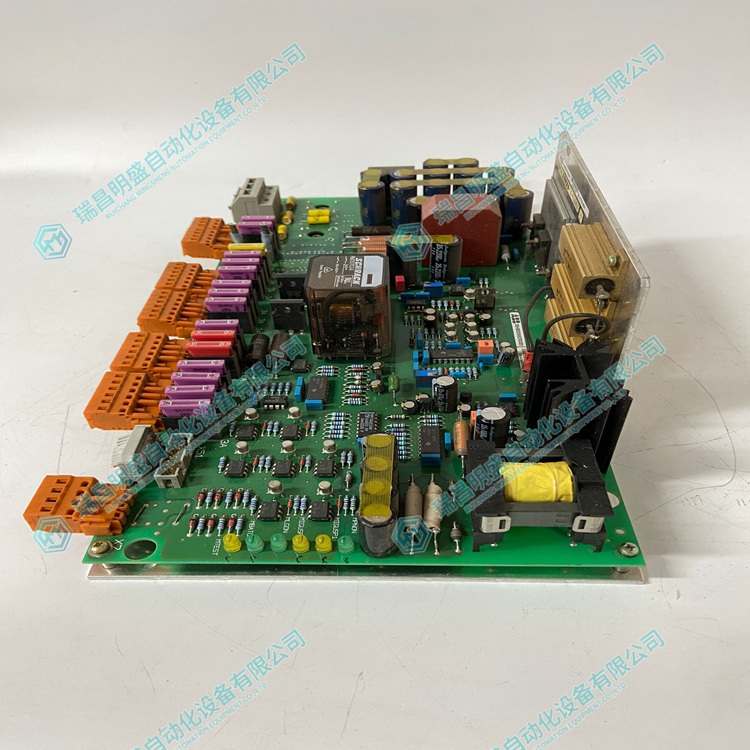

2.产 品 展 示
3.产 品 展 示
