Motorola MVME5110-2263 单板计算机

产品概述

Motorola MVME5110-2263 是一款 VMEbus 架构的高性能单板计算机（SBC），属于 MVME5000 系列。该模块集成了 高性能 CPU、内存、I/O 接口和总线控制器，用于工业自动化、嵌入式控制、通信系统和科研测试等场景。MVME5110-2263 可作为系统核心处理单元，与 VME 总线及其他模块无缝协作，实现高速数据处理和可靠控制。

技术参数

• 处理器：PowerPC 或 Motorola PowerPC 系列（具体型号取决于版本）

• 内存：

• RAM：64 MB – 256 MB，可扩展

• Flash/ROM：用于引导程序和固件

• NVRAM：带实时时钟

• 总线接口：VME64 或 VME64x 标准，支持 32/64 位数据传输

• I/O 接口：

• 多路串行接口（RS-232/RS-422/RS-485）

• 并行接口

• USB 或 Ethernet（依型号可选）

• 控制功能：

• 总线仲裁和 DMA 数据传输

• 中断管理

• 定时器和看门狗

• 系统兼容性：支持 VxWorks、Linux、pSOS 等嵌入式操作系统

• 工作环境：工业级设计，适应宽温工作，长期可靠运行

应用场景

1. 工业自动化控制

• 作为核心计算和控制单元管理生产线和设备。

2. 嵌入式实时控制系统

• 高速数据处理、多任务控制及实时反馈。

3. 测试测量与科研设备

• 数据采集、实验控制和信号处理平台。

4. 通信与网络设备

• 嵌入式网络节点、控制器和通信协议处理。

5. 能源与电力系统

• 发电、变电和配电系统的实时监控与控制。

6. 军工及航空航天应用

• 高可靠性嵌入式平台，用于实时任务处理和数据采集。

Motorola  MVME5110-2263单板计算机 英文资料：

Motorola MVME5110-2263 Single Board Computer

Product Overview

Motorola MVME5110-2263 is a high-performance single board computer (SBC) with VMEbus architecture, belonging to the MVME5000 series. This module integrates high-performance CPUs, memory, I/O interfaces, and bus controllers, and is used in scenarios such as industrial automation, embedded control, communication systems, and scientific research testing. MVME5110-2263 can serve as the core processing unit of the system, seamlessly collaborating with VME bus and other modules to achieve high-speed data processing and reliable control.

Technical Specifications

Processor: PowerPC or Motorola PowerPC series (specific model depends on version)

Memory:

RAM：64 MB – 256 MB， scalable

Flash/ROM: Used for booting programs and firmware

NVRAM: with real-time clock

Bus interface: VME64 or VME64x standard, supporting 32/64 bit data transmission

I/O interface:

Multi channel serial interface (RS-232/RS-422/RS-485)

Parallel Interface

USB or Ethernet (optional by model)

Control function:

Bus arbitration and DMA data transfer

interrupt management

Timer and watchdog

System compatibility: Supports embedded operating systems such as VxWorks, Linux, pSOS, etc

Work environment: Industrial grade design, suitable for wide temperature operation, long-term reliable operation

Application scenarios

industrial automation control

Manage production lines and equipment as the core computing and control unit.

Embedded real-time control system

High speed data processing, multitasking control, and real-time feedback.

Testing, Measurement, and Research Equipment

Data collection, experimental control, and signal processing platform.

Communication and network equipment

Embedded network nodes, controllers, and communication protocol processing.

Energy and Power Systems

Real time monitoring and control of power generation, transformation, and distribution systems.

Military and aerospace applications

High reliability embedded platform for real-time task processing and data acquisition.

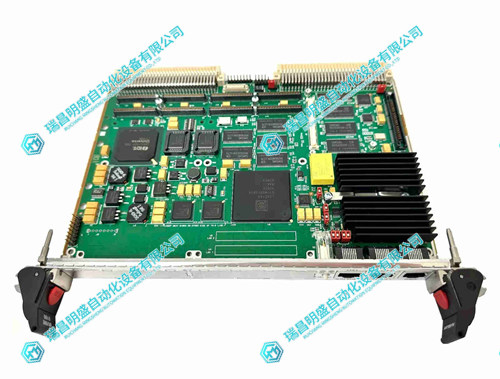

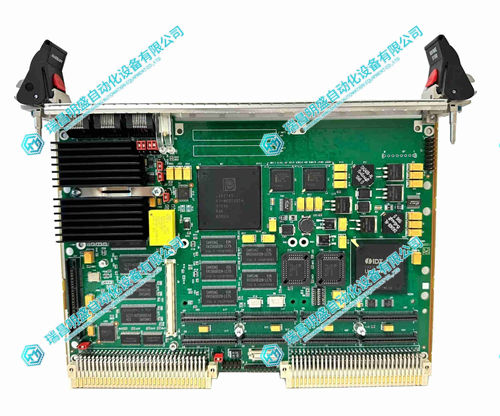

Motorola MVME5110-2263单板计算机 产品展示
