Motorola MVME332PA1端口模块 PDF资料

1.产 品 资 料 介 绍：

Motorola MVME332PA1 端口模块

产品概述

Motorola MVME332PA1 是一款 VMEbus 架构的端口模块，用于 MVME332 系列单板计算机系统，主要提供 高速数据接口和端口管理功能。该模块可以扩展 CPU 模块的通讯能力，实现多通道 I/O 端口管理，支持工业自动化、测试测量、数据采集和嵌入式系统中的高速数据传输。MVME332PA1 可与 MVME332 系列 CPU 模块及其他 VME 扩展板件协同工作，实现系统总线与外围设备的高效连接。

技术参数

• 总线接口：VMEbus 标准，支持 16/32 位数据传输

• 端口类型：

• 串行端口（RS-232/RS-422/RS-485，可选）

• 并行数据端口

• 数据速率：支持高速数据传输，根据接口类型可达 1 Mbps 以上（串行）

• 控制功能：

• 数据缓冲与传输管理

• 中断和状态监控

• 与 CPU 模块同步通讯

• 兼容性：与 MVME332 系列 CPU 模块及其他 VME 扩展板件兼容

• 工作环境：工业级设计，抗干扰能力强，适合长期连续运行

应用场景

1. 工业自动化系统

• 为控制器提供多通道数据接口，实现设备监控与数据交换。

2. 测试与测量系统

• 高速采集数据、管理实验设备和信号接口。

3. 通信与网络设备

• 提供数据接口扩展，实现嵌入式交换和通信节点控制。

4. 分布式控制系统

• 多模块协作，实现总线内数据同步与任务分发。

5. 科研与仿真系统

• 管理多路信号输入输出，保证系统数据处理和实时性。

Motorola  MVME332PA1端口模块 英文资料：

Motorola MVME332PA1 Port Module

Product Overview

Motorola MVME332PA1 is a VMEbus architecture port module used in the MVME332 series of single board computer systems, mainly providing high-speed data interfaces and port management functions. This module can expand the communication capability of the CPU module, achieve multi-channel I/O port management, support industrial automation, testing and measurement, data acquisition, and high-speed data transmission in embedded systems. MVME332PA1 can work in conjunction with MVME332 series CPU modules and other VME expansion boards to achieve efficient connection between the system bus and peripheral devices.

Technical Specifications

Bus interface: VMEbus standard, supports 16/32-bit data transmission

Port type:

Serial port (RS-232/RS-422/RS-485, optional)

Parallel data port

Data rate: Supports high-speed data transmission, up to 1 Mbps or more depending on the interface type (serial)

Control function:

Data buffering and transmission management

Interruption and status monitoring

Synchronize communication with CPU module

Compatibility: Compatible with MVME332 series CPU modules and other VME expansion boards

Work environment: Industrial grade design, strong anti-interference ability, suitable for long-term continuous operation

Application scenarios

Industrial automation system

Provide multi-channel data interfaces for controllers to achieve device monitoring and data exchange.

Testing and Measurement System

High speed data collection, management of experimental equipment and signal interfaces.

Communication and network equipment

Provide data interface extensions to achieve embedded switching and communication node control.

DCS

Multi module collaboration enables data synchronization and task distribution within the bus.

Research and Simulation System

Manage multiple signal inputs and outputs to ensure system data processing and real-time performance.

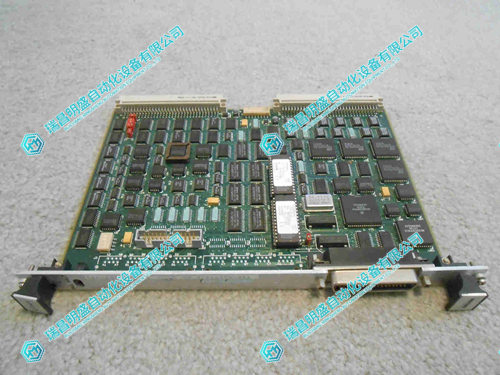

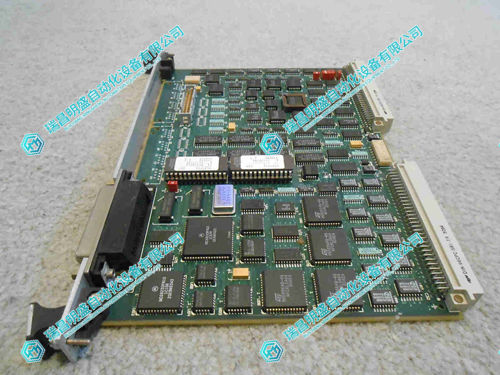

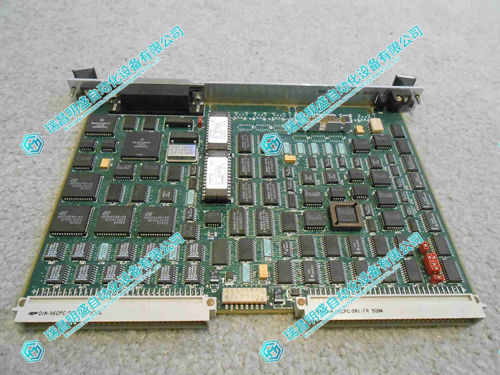

Motorola MVME332PA1端口模块 产品展示
