Motorola MVME172-263 01-W3183F-10A数字量控制板卡 PDF资料

1.产 品 资 料 介 绍：

Motorola MVME172-263 01-W3183F-10A 数字量控制板卡

产品概述

Motorola MVME172-263 是一款基于 VMEbus 架构的数字量控制板卡，型号 01-W3183F-10A 表示其具体硬件版本和修订号。该模块用于嵌入式控制系统中，实现 数字输入/输出（DI/DO）控制，广泛用于工业自动化、测试测量、机床控制和通信系统中。MVME172-263 可与 MVME172 系列 CPU 模块及其他 I/O 板协同工作，提供可靠的数字量控制接口和信号管理能力。

技术参数

• 总线接口：VMEbus 标准，支持 16/32 位数据传输

• 数字量接口：

• 多路数字输入（DI）

• 多路数字输出（DO）

• 输出可驱动继电器或开关量负载

• 控制逻辑：

• 支持脉冲、定时控制与状态反馈

• 可配置触发条件与中断响应

• 兼容性：与 MVME172 系列 CPU 模块及 VMEbus 其他板件兼容

• 可靠性设计：工业级设计，具备抗干扰和短路保护功能

• 工作环境：适应工业温度范围，长时间连续运行

应用场景

1. 工业自动化控制

• 负责生产线机械设备、PLC 系统的数字信号输入输出控制。

2. 机床和运动控制系统

• 控制电机启动/停止、限位开关检测和执行器状态反馈。

3. 实验室和测试设备

• 实现数字信号采集、触发控制和数据记录。

4. 通信设备

• 管理数字信号接口，实现设备状态监控与控制。

5. 能源与电力系统

• 数字量监控和控制开关设备、继电器及保护装置。

Motorola  MVME172-263 01-W3183F-10A数字量控制板卡  英文资料：

Motorola MVME172-263 01-W3183F-10A Digital Control Board

Product Overview

Motorola MVME172-263 is a digital control board based on the VMEbus architecture, with model 01-W3183F-10A indicating its specific hardware version and revision number. This module is used in embedded control systems to implement digital input/output (DI/DO) control and is widely used in industrial automation, testing and measurement, machine tool control, and communication systems. MVME172-263 can work in conjunction with MVME172 series CPU modules and other I/O boards, providing reliable digital control interfaces and signal management capabilities.

Technical Specifications

Bus interface: VMEbus standard, supports 16/32-bit data transmission

Digital quantity interface:

Multi channel digital input (DI)

Multi channel digital output (DO)

Output can drive relays or switch loads

Control logic:

Support pulse, timing control, and status feedback

Configurable trigger conditions and interrupt response

Compatibility: Compatible with MVME172 series CPU modules and other VMEbus boards

Reliability design: Industrial grade design with anti-interference and short-circuit protection functions

Work environment: Suitable for industrial temperature range, long-term continuous operation

Application scenarios

industrial automation control

Responsible for digital signal input and output control of production line mechanical equipment and PLC systems.

Machine tools and motion control systems

Control motor start/stop, limit switch detection, and actuator status feedback.

Laboratory and testing equipment

Realize digital signal acquisition, trigger control, and data recording.

communication equipment

Manage digital signal interfaces to achieve device status monitoring and control.

Energy and Power Systems

Digital monitoring and control of switchgear, relays, and protective devices.

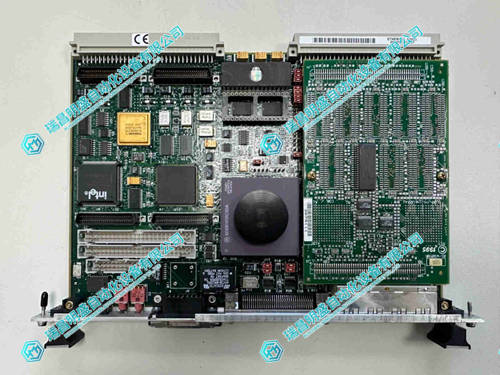

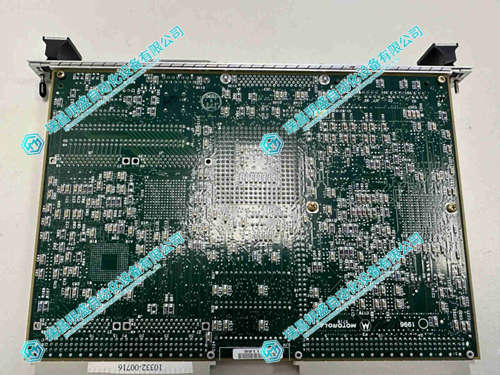

Motorola MVME172-263 01-W3183F-10A数字量控制板卡  产品展示
