Motorola MVME162-523控制主板卡件 PDF资料

1.产 品 资 料 介 绍：

Motorola MVME162-523 控制主板卡件

产品概述

Motorola MVME162-523 是一款基于 VMEbus 架构的控制主板卡件，属于 MVME162 系列单板计算机的扩展模块。该模块主要用于 工业自动化和嵌入式控制系统，承担系统总线管理、信号调度以及外围设备接口控制的核心任务。它可与 MVME162 系列 CPU 模块协同工作，作为整个嵌入式系统的 核心控制单元，适合实时控制和高可靠性应用。

技术参数

• 总线接口：符合 VMEbus 标准，支持 16/32 位数据传输

• 功能定位：

• 系统控制与总线管理

• 中断和优先级仲裁

• 定时器与看门狗控制

• I/O 接口：

• 串行接口（RS-232/RS-422）

• 并行接口

• 定时器和脉冲输出控制

• 系统兼容性：

• 与 MVME162 系列 CPU 模块及扩展板件兼容

• 支持 VxWorks、pSOS 等实时操作系统

• 电气与环境特性：

• 工业级设计，抗干扰能力强

• 支持长时间连续运行

• 扩展能力：可通过 VMEbus 与多种 I/O 模块及脉冲控制卡件配合，实现系统功能扩展

应用场景

1. 工业自动化控制

• 作为主控模块，管理生产线设备和过程控制逻辑。

2. 机床与机器人系统

• 提供脉冲输出与总线管理，实现多轴同步控制。

3. 科研测试与实验设备

• 负责系统协调和实时信号管理，实现精确控制和数据采集。

4. 电力与能源系统

• 监控与调度发电设备、变电站和配电系统的控制模块。

5. 通信与信号处理

• 在通信设备中提供总线管理、信号分发和接口协调。

产品优势

• 核心控制能力：集成系统总线管理、定时器、脉冲输出，作为主控模块非常稳定。

• 可靠性强：工业级设计，支持长时间 7×24 小时运行，抗干扰能力高。

• 扩展性好：模块化设计，可与 MVME162 系列脉冲控制卡件、I/O 模块协同使用。

• 兼容性强：与 MVME 系列 CPU 和板件无缝集成，易于系统升级。

• 实时性能优越：具备中断、定时器和看门狗机制，适合实时控制系统。

Motorola  MVME162-523控制主板卡件  英文资料：

Motorola MVME162-523 Control Motherboard Card

Product Overview

Motorola MVME162-523 is a control motherboard card based on the VMEbus architecture, belonging to the expansion module of MVME162 series single board computers. This module is mainly used for industrial automation and embedded control systems, undertaking core tasks such as system bus management, signal scheduling, and peripheral device interface control. It can work in conjunction with MVME162 series CPU modules as the core control unit of the entire embedded system, suitable for real-time control and high reliability applications.

Technical Specifications

Bus interface: compliant with VMEbus standard, supporting 16/32-bit data transmission

Functional positioning:

System Control and Bus Management

Interruption and priority arbitration

Timer and watchdog control

I/O interface:

Serial interface (RS-232/RS-422)

Parallel Interface

Timer and pulse output control

System compatibility:

Compatible with MVME162 series CPU modules and expansion boards

Support real-time operating systems such as VxWorks and pSOS

Electrical and environmental characteristics:

Industrial grade design, strong anti-interference ability

Support long-term continuous operation

Scalability: The system's functionality can be expanded through the integration of VMEbus with various I/O modules and pulse control cards

Application scenarios

industrial automation control

As the main control module, manage production line equipment and process control logic.

Machine Tool and Robot Systems

Provide pulse output and bus management to achieve multi axis synchronous control.

Research testing and experimental equipment

Responsible for system coordination and real-time signal management, achieving precise control and data acquisition.

Power and Energy Systems

Control modules for monitoring and scheduling power generation equipment, substations, and distribution systems.

Communications and Signal Processing

Provide bus management, signal distribution, and interface coordination in communication devices.

Product advantages

Core control capability: Integrated system bus management, timer, pulse output, as the main control module, it is very stable.

Strong reliability: Industrial grade design, supports long-term 7 × 24-hour operation, and has high anti-interference ability.

Good scalability: Modular design, can be used in conjunction with MVME162 series pulse control cards and I/O modules.

Strong compatibility: seamlessly integrated with MVME series CPUs and boards, easy to upgrade the system.

Superior real-time performance: equipped with interrupt, timer, and watchdog mechanisms, suitable for real-time control systems.

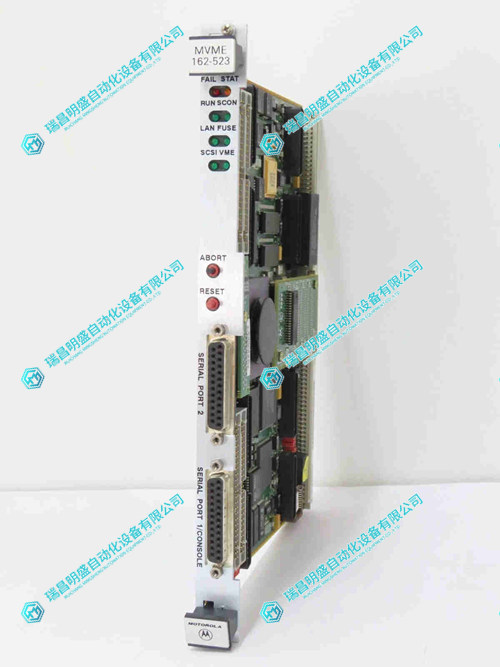

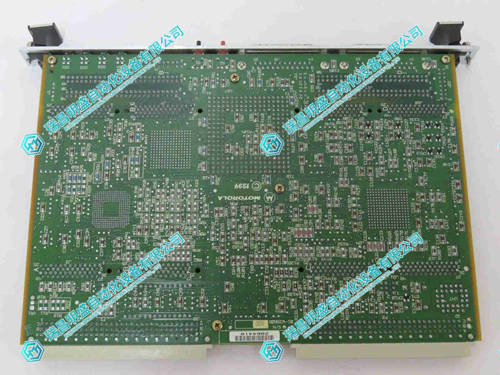

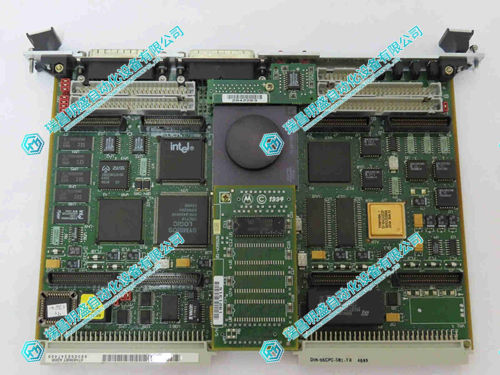

Motorola MVME162-523控制主板卡件  产品展示
