Motorola MVME162-522A 控制脉冲卡件 PDF资料

1.产 品 资 料 介 绍：

Motorola MVME162-522A 控制脉冲卡件

产品概述

Motorola MVME162-522A 是一款 VMEbus 架构的控制脉冲卡件，属于 MVME162 系列单板计算机的扩展模块。它主要用于 脉冲控制、运动控制和实时信号生成，可与 MVME 系列 CPU 模块协同工作，为工业自动化、机床控制和测试测量系统提供精确的脉冲输出和控制能力。
该模块通过 VME 总线与 CPU 及其他 I/O 模块连接，实现多通道脉冲控制、同步计数和定时管理，是工业和科研场景中高精度控制的理想组件。

技术参数

• 总线接口：VMEbus 标准，总线宽度 16/32 位，支持 A16/A24/A32 地址空间

• 功能定位：

• 多通道脉冲输出

• 计数器/定时器功能

• 脉冲同步与周期控制

• 通道数量：典型 4–8 路独立脉冲通道（具体型号可配置）

• 控制精度：微秒级脉冲控制，支持高速实时运算

• 电气特性：工业级隔离，抗干扰设计

• 兼容性：与 Motorola MVME162 系列 CPU 模块兼容，可运行 VxWorks、pSOS 等 RTOS

• 工作环境：工业温度范围，适应长时间高负荷运行

应用场景

1. 工业自动化与机床控制

• 控制伺服驱动器、步进电机，实现精确位置与速度调节。

2. 机器人与运动控制系统

• 多轴控制与同步运动管理，支持高速闭环控制。

3. 科研与测试系统

• 用于实验设备脉冲生成、计数和同步控制。

4. 过程控制与自动化装置

• 在流水线或自动化设备中提供精确时间和脉冲信号。

5. 通信与信号处理

• 生成和管理时间敏感的同步信号。

Motorola  MVME162-02 工控控制卡件  英文资料：

Motorola MVME162-522A Control Pulse Card

Product Overview

Motorola MVME162-522A is a control pulse card with VMEbus architecture, belonging to the expansion module of MVME162 series single board computers. It is mainly used for pulse control, motion control, and real-time signal generation, and can work in conjunction with MVME series CPU modules to provide accurate pulse output and control capabilities for industrial automation, machine tool control, and testing measurement systems.

This module is connected to the CPU and other I/O modules through the VME bus, achieving multi-channel pulse control, synchronous counting, and timing management. It is an ideal component for high-precision control in industrial and scientific research scenarios.

Technical Specifications

Bus interface: VMEbus standard, bus width 16/32 bits, supports A16/A24/A32 address space

Functional positioning:

Multi channel pulse output

Counter/Timer Function

Pulse synchronization and cycle control

Number of channels: Typical 4-8 independent pulse channels (specific models can be configured)

Control accuracy: microsecond level pulse control, supporting high-speed real-time computation

Electrical characteristics: Industrial grade isolation, anti-interference design

Compatibility: Compatible with Motorola MVME162 series CPU modules, capable of running RTOS such as VxWorks and pSOS

Working environment: Industrial temperature range, suitable for long-term high load operation

Application scenarios

Industrial Automation and Machine Tool Control

Control servo drivers and stepper motors to achieve precise position and speed adjustment.

Robots and Motion Control Systems

Multi axis control and synchronous motion management, supporting high-speed closed-loop control.

Research and Testing System

Used for pulse generation, counting, and synchronization control of experimental equipment.

Process control and automation equipment

Provide precise time and pulse signals in assembly lines or automated equipment.

Communications and Signal Processing

Generate and manage time sensitive synchronization signals.

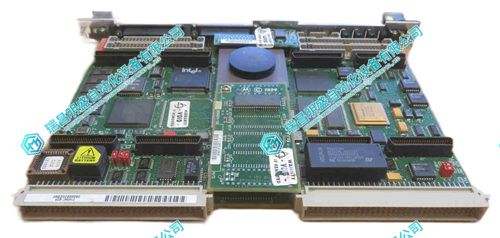

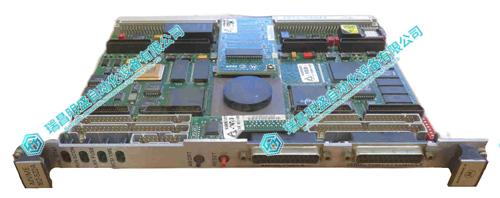

Motorola MVME162-02 工控控制卡件  产品展示
