Motorola MVME147-014 单板计算机 PDF资料

1.产 品 资 料 介 绍：

Motorola MVME147-014 单板计算机

产品概述

Motorola MVME147-014 是一款基于 VMEbus 架构的单板计算机（SBC），属于 Motorola MVME147 系列的一个具体型号。该系列是 Motorola 在 80 年代后期至 90 年代广泛应用的 嵌入式实时控制计算平台，采用 Motorola 68030 处理器，辅以浮点协处理器（68882）和内存扩展能力，支持运行多种实时操作系统（如 VxWorks、UNIX、pSOS）。
MVME147-014 常用于工业控制、军事电子、电力能源和通信领域，因其高可靠性和长期供货能力而被广泛部署。

技术参数

• 处理器：Motorola 68030，主频 16–25 MHz（依不同版本而定）

• 协处理器：Motorola 68882 浮点协处理器（FPU）

• 内存：

• 动态 RAM (DRAM)：典型配置 4 MB–16 MB，可扩展

• EPROM/Flash：用于存储固件和启动程序

• 总线接口：符合 VMEbus 规范，支持 32 位地址与数据传输

• I/O 接口：

• 串口（RS-232/RS-422）

• 并口

• 定时器与看门狗

• 中断控制接口

• 操作系统支持：VxWorks、pSOS、UNIX System V、LynxOS 等

• 电气与环境：工业级设计，支持长时间稳定运行

应用场景

1. 工业自动化

• 用于过程控制、运动控制、数控机床的核心计算平台。

2. 电力与能源

• 应用于电力调度、变电站自动化、实时监控与数据采集。

3. 国防与航空航天

• 部署在雷达控制、任务计算、飞控与导航系统中。

4. 电信与网络

• 用作交换机、路由器或通信管理系统中的嵌入式控制单元。

5. 科研与测试设备

• 用于实验室自动化测试系统和科学仪器数据采集控制。

Motorola  MVME147-014 单板计算机 英文资料：

Motorola MVME147-014 Single Board Computer

Product Overview

The Motorola MVME147-014 is a single board computer (SBC) based on the VMEbus architecture, belonging to a specific model of the Motorola MVME147 series. This series is an embedded real-time control computing platform widely used by Motorola in the late 1980s and 1990s. It uses the Motorola 68030 processor, supplemented by floating-point coprocessors (68882) and memory expansion capabilities, and supports running multiple real-time operating systems (such as VxWorks, UNIX, pSOS).

MVME147-014 is commonly used in industrial control, military electronics, power energy, and communication fields, and is widely deployed due to its high reliability and long-term supply capability.

Technical Specifications

Processor: Motorola 68030, clock speed 16-25 MHz (depending on different versions)

Coprocessor: Motorola 68882 Floating Point Coprocessor (FPU)

Memory:

Dynamic RAM (DRAM): Typical configuration 4 MB – 16 MB, expandable

EPROM/Flash: Used for storing firmware and boot programs

Bus interface: compliant with the VMEbus specification, supporting 32-bit address and data transmission

I/O interface:

Serial port (RS-232/RS-422)

parallel port

Timer and watchdog

Interrupt Control Interface

Operating system support: VxWorks, pSOS, UNIX System V, Lynx OS, etc

Electrical and Environmental: Industrial grade design, supporting long-term stable operation

Application scenarios

Industrial Automation

The core computing platform used for process control, motion control, and CNC machine tools.

Electricity and Energy

Applied to power dispatching, substation automation, real-time monitoring, and data collection.

Defense and Aerospace

Deploy in radar control, mission computation, flight control, and navigation systems.

Telecommunications and Networks

Used as an embedded control unit in switches, routers, or communication management systems.

Research and testing equipment

Used for laboratory automation testing systems and scientific instrument data acquisition and control.

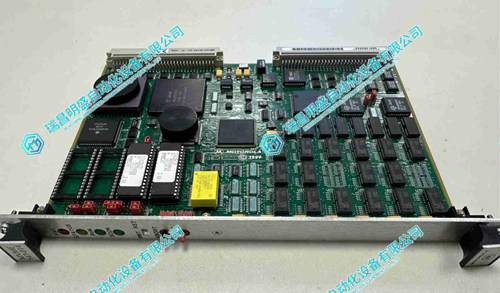

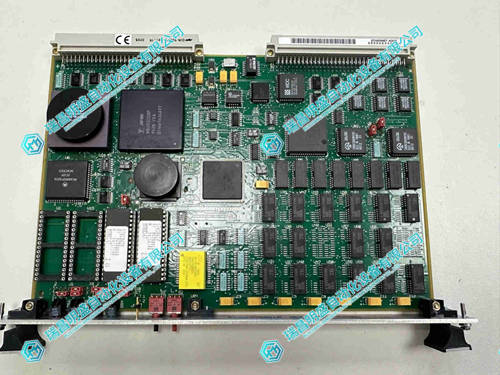

Motorola MVME147-014 单板计算机 产品展示
