1.产 品 资 料 介 绍：

Motorola MVME-5500 CPU 模块

产品概述

Motorola MVME-5500 是一款高性能 VMEbus 架构的嵌入式 CPU 模块，基于 PowerPC 7455/7447 处理器，主频可达 1GHz 以上。该模块属于 Motorola 的 下一代高性能 VME 控制器，在保持 VME 总线兼容性的同时，提供更强的运算能力、更大内存容量和更快的 I/O 通道。MVME-5500 常用于国防、工业自动化、电力能源和电信领域，是高可靠性实时控制与嵌入式计算的核心。

技术参数

• 处理器：

• PowerPC 7455 或 7447 CPU

• 主频范围：1.0 GHz – 1.26 GHz

• 内存：

• DDR SDRAM，最高可扩展至 1 GB

• 512 KB 二级缓存 (L2 Cache)

• 总线接口：

• VME64 标准，支持 64 位数据传输

• 提供 PCI Mezzanine Card (PMC) 扩展插槽

• I/O 接口：

• 双 10/100/1000 Mbps 千兆以太网端口

• 多个串口（RS-232/422）

• USB 接口（部分版本）

• 并行 I/O 通道

• 操作系统支持：

• VxWorks

• Linux (嵌入式)

• pSOS、LynxOS 等实时操作系统

• 工作环境：

• 工业级温度范围设计

• 符合抗电磁干扰和长时间运行需求

应用场景

1. 工业自动化

• 作为工厂自动化、过程控制系统的中央处理单元，实现运动控制、逻辑运算和高速数据采集。

2. 电力与能源

• 应用于电网调度、变电站自动化、发电厂监控系统，提供高可靠实时计算能力。

3. 国防与航空航天

• 部署在雷达系统、舰船作战管理系统、飞控与导航平台，用于实时任务处理。

4. 电信与网络

• 用于交换机、数据通信系统的信令与流量处理。

5. 科研与测试设备

• 在高能物理实验、自动化测试平台中作为核心控制器。

Motorola  MVME-5500 CPU模块 英文资料：

Motorola MVME-5500 CPU Module

Product Overview

The Motorola MVME-5500 is a high-performance embedded CPU module with VMEbus architecture, based on PowerPC 7455/7447 processors, with a clock speed of over 1GHz. This module belongs to Motorola's next-generation high-performance VME controller, which provides stronger computing power, larger memory capacity, and faster I/O channels while maintaining VME bus compatibility. MVME-5500 is commonly used in the fields of national defense, industrial automation, power energy, and telecommunications, and is the core of high reliability real-time control and embedded computing.

Technical Specifications

Processor:

PowerPC 7455 or 7447 CPU

Main frequency range: 1.0 GHz -1.26 GHz

Memory:

DDR SDRAM， Up to 1 GB expandable

512 KB L2 Cache

Bus interface:

VME64 standard, supports 64 bit data transfer

Provide PCI Mezzanine Card (PMC) expansion slots

I/O interface:

Dual 10/100/1000 Mbps Gigabit Ethernet ports

Multiple serial ports (RS-232/422)

USB interface (partial versions)

Parallel I/O channel

Operating system support:

VxWorks

Linux (Embedded)

Real time operating systems such as pSOS and Lynx OS

Working environment:

Industrial grade temperature range design

Meets the requirements of anti electromagnetic interference and long-term operation

Application scenarios

Industrial Automation

As the central processing unit of factory automation and process control systems, it realizes motion control, logical operation, and high-speed data acquisition.

Electricity and Energy

Applied to power grid dispatching, substation automation, and power plant monitoring systems, providing highly reliable real-time computing capabilities.

Defense and Aerospace

Deploy in radar systems, ship combat management systems, flight control and navigation platforms for real-time task processing.

Telecommunications and Networks

Used for signaling and traffic processing in switches and data communication systems.

Research and testing equipment

As a core controller in high-energy physics experiments and automated testing platforms.

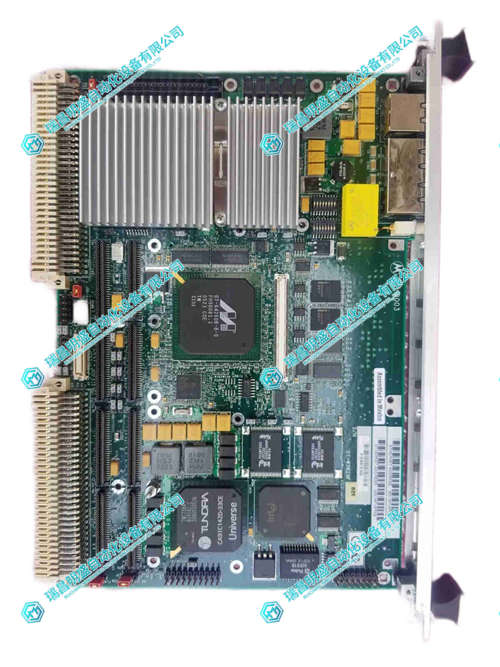

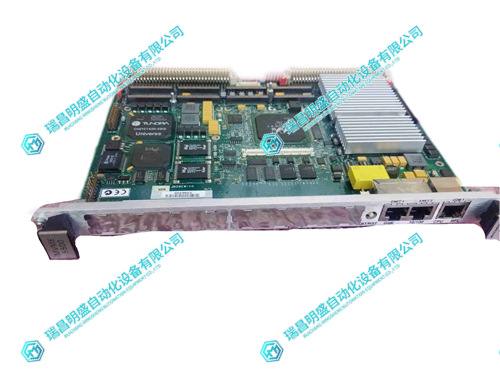

Motorola MVME-5500 CPU模块 产品展示
