Motorola MVME 2301 01-W3345F-01H控制器模块 PDF资料

1.产 品 资 料 介 绍：

Motorola MVME 2301 01-W3345F-01H 控制器模块

产品概述

Motorola MVME 2301 是一款基于 VME 总线架构的高性能控制器模块，属于 Motorola MVME 系列嵌入式计算平台。该模块通常采用 PowerPC 处理器，具备高带宽总线接口与丰富的 I/O 扩展能力，主要用于工业自动化、通信系统、能源监控以及国防/航空电子等领域的实时控制和数据处理。
型号 01-W3345F-01H 属于特定硬件版本，常应用于对稳定性、实时性和可扩展性要求较高的场合。

技术参数

• 处理器架构：基于 PowerPC 的高性能 CPU（常见配置为 603/604 系列）

• 存储资源：支持 SDRAM/EDO DRAM，容量可扩展

• 总线接口：兼容 VME64/VMEbus 标准，支持主控与从控模式

• I/O 接口：串口、以太网接口（部分版本）、通用并行 I/O

• 扩展性：支持 VME 背板扩展，便于与多种 I/O 板卡或专用处理单元组合

• 操作系统支持：可运行 VxWorks、LynxOS、pSOS 以及部分嵌入式 Linux

应用场景

1. 工业自动化：在工厂生产线控制系统中作为核心控制单元，实现运动控制、逻辑运算和数据采集。

2. 电力与能源：用于电网监控、变电站自动化系统，保障电力实时调度。

3. 通信系统：应用于交换机、基站控制系统，实现高速数据处理与信令控制。

4. 国防与航空电子：部署在舰船、雷达、导航和飞控系统中，提供可靠的实时运算能力。

5. 科学研究设备：在实验装置和测试仪器中作为核心控制器。

产品优势

• 高可靠性：采用工业级设计，适用于严苛环境下的长期运行。

• 实时性能强：支持多任务实时操作系统，保证低延迟响应。

• 扩展灵活：VME 总线架构使其易于与多种功能模块组合。

• 应用成熟：广泛应用于国防、能源和工业领域，经过市场验证。

• 维护性好：模块化设计便于替换和升级，延长系统生命周期。

Motorola  MVME 2301 01-W3345F-01H控制器模块 英文资料：

Motorola MVME 2301 01-W3345F-01H Controller Module

Product Overview

Motorola MVME 2301 is a high-performance controller module based on the VME bus architecture, belonging to the Motorola MVME series of embedded computing platforms. This module typically uses PowerPC processors with high bandwidth bus interfaces and rich I/O expansion capabilities, mainly used for real-time control and data processing in industrial automation, communication systems, energy monitoring, and defense/aerospace electronics fields.

Model 01-W3345F-01H belongs to a specific hardware version and is often used in situations where high stability, real-time performance, and scalability are required.

Technical Specifications

Processor architecture: High performance CPU based on PowerPC (commonly configured as 603/604 series)

Storage resources: Supports SDRAM/EDO DRAM, expandable capacity

Bus interface: compatible with VME64/VMEbus standards, supporting master and slave modes

I/O interfaces: serial port, Ethernet interface (some versions), universal parallel I/O

Scalability: Supports VME backplane expansion, making it easy to combine with multiple I/O cards or dedicated processing units

Operating system support: can run VxWorks, Lynx OS, pSOS, and some embedded Linux

Application scenarios

Industrial automation: As the core control unit in the factory production line control system, it realizes motion control, logical operation, and data acquisition.

Electricity and Energy: Used for power grid monitoring and substation automation systems to ensure real-time power dispatch.

Communication system: applied to switch and base station control systems to achieve high-speed data processing and signaling control.

Defense and aviation electronics: deployed in ships, radar, navigation, and flight control systems, providing reliable real-time computing capabilities.

Scientific research equipment: used as the core controller in experimental setups and testing instruments.

Product advantages

High reliability: Adopting industrial grade design, suitable for long-term operation in harsh environments.

Strong real-time performance: supports multitasking real-time operating systems, ensuring low latency response.

Scalable flexibility: The VME bus architecture makes it easy to combine with multiple functional modules.

Mature application: widely used in the fields of national defense, energy, and industry, verified by the market.

Good maintainability: Modular design facilitates replacement and upgrade, extending the system lifecycle.

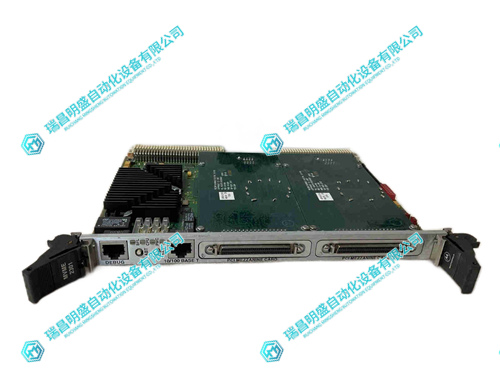

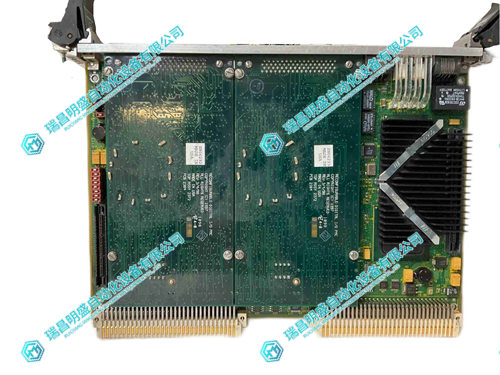

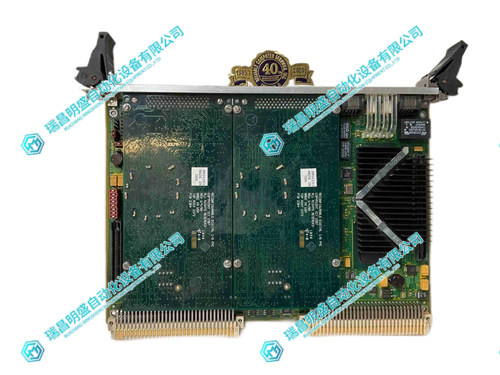

Motorola MVME 2301 01-W3345F-01H控制器模块 产品展示
