Motorola VME162PA344SE CPU控制总线板 PDF资料

1.产 品 资 料 介 绍：

产品概述

Motorola VME162PA344SE 是一款基于 VME 总线架构的嵌入式 CPU 控制总线板，属于 VME162 系列处理器模块。该板卡集成高性能处理器、存储器和多种接口，主要作为系统核心控制单元，广泛应用于工业控制、军工、通信和科研领域。

技术特点

• 处理器：基于 Motorola 68040 或 68030 系列处理器，具备较强的实时运算能力

• 总线架构：完全符合 VMEbus 标准，支持与其他 VME 模块协同工作

• 存储能力：支持大容量 DRAM、SRAM 及 EPROM/Flash 存储器

• 接口丰富：多路串口、并口、定时器及以太网/串行通讯接口

• 操作系统：兼容 VxWorks、OS-9 等实时操作系统

• 结构设计：坚固耐用，适合高负荷与长时间运行环境

应用领域

1. 工业自动化

• 生产设备的实时监测与过程控制

• 工厂数据采集与执行单元管理

• 自动化生产线调度控制

2. 电力与能源

• 电站自动化控制与保护

• 输配电网络监控与数据采集

• 能源调度与负载管理

3. 交通与运输

• 铁路与地铁的信号与列控系统

• 智能交通监测与调度

• 车辆/船舶控制与安全系统

4. 国防与航空航天

• 导弹制导与雷达信号处理

• 飞机航电与舰载控制系统

• 航天地面测控与姿态控制

5. 通信与网络

• 电信交换机控制单元

• 卫星通信与数据处理

• 网络协议处理和路由控制

6. 科研与医疗

• 高能物理实验设备的核心控制

• 医疗成像设备的嵌入式计算

• 实验室自动化与测控系统

Motorola VME162PA344SE CPU控制总线板 英文资料：

Product Overview

Product Overview

Motorola VME162PA344SE is an embedded CPU control bus board based on the VME bus architecture, belonging to the VME162 series of processor modules. This board integrates high-performance processors, memory, and multiple interfaces, mainly serving as the core control unit of the system, and is widely used in industrial control, military industry, communication, and scientific research fields.

Technical Features

Processor: Based on Motorola 68040 or 68030 series processors, it has strong real-time computing capabilities

Bus architecture: fully compliant with the VMEbus standard, supporting collaboration with other VME modules

Storage capacity: Supports large capacity DRAM, SRAM, and EPROM/Flash memory

Rich interfaces: multiple serial ports, parallel ports, timers, and Ethernet/serial communication interfaces

Operating System: Compatible with real-time operating systems such as VxWorks and OS-9

Structural design: sturdy and durable, suitable for high load and long-term operating environments

Application field

Industrial Automation

Real time monitoring and process control of production equipment

Factory data collection and execution unit management

Automated production line scheduling and control

Electricity and Energy

Power plant automation control and protection

Monitoring and Data Collection of Transmission and Distribution Networks

Energy dispatch and load management

Traffic and Transportation

Signal and train control systems for railways and subways

Intelligent Traffic Monitoring and Scheduling

Vehicle/Ship Control and Safety System

Defense and Aerospace

Missile Guidance and Radar Signal Processing

Aircraft avionics and onboard control system

Aerospace Ground Control and Attitude Control

Communications and Networking

Telecommunications switch control unit

Satellite Communication and Data Processing

Network protocol processing and routing control

Research and Medical

Core control of high-energy physics experimental equipment

Embedded computing of medical imaging equipment

Laboratory Automation and Measurement and Control System

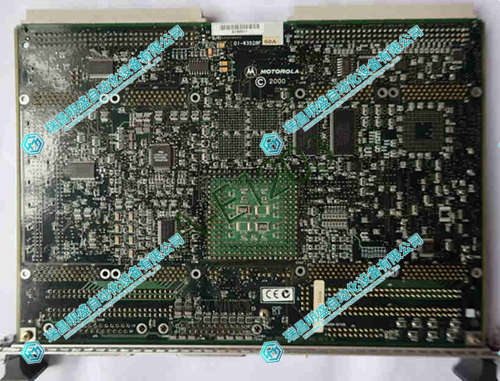

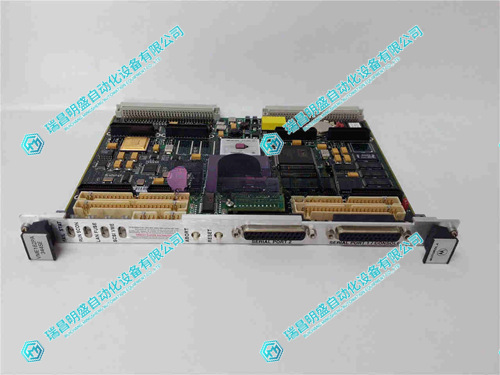

Motorola VME162PA344SE CPU控制总线板 产品展示
