Motorola  VME162PA-344SE 01-W3528F60A电路板 PDF资料

1.产 品 资 料 介 绍：

产品概述

Motorola VME162PA-344SE 01-W3528F60A 电路板属于 VME总线架构的嵌入式处理器板卡，广泛用于工业与科研系统。它以高性能 CPU、灵活的 I/O 接口以及良好的扩展能力著称，适合在高可靠性、长周期运行的场合中使用。

技术特点

• 基于 Motorola 68040/68030 系列处理器

• 支持 VME 总线标准，便于与其他模块化设备集成

• 多通道串口、并口等外设接口，满足数据通信需求

• 支持实时操作系统（如 VxWorks、OS-9）

• 结构坚固，适合在工业与军工环境中长期运行

应用领域

1. 工业控制

• 生产线实时监控

• 过程自动化控制

• 工厂数据采集与设备调度

2. 电力与能源

• 电网保护与自动化控制

• 输配电监测系统

• 能源数据采集与管理

3. 交通运输

• 城轨与地铁信号系统

• 交通监控与调度平台

• 智能车辆控制模块

4. 国防与航空航天

• 导弹、雷达控制处理单元

• 飞机与舰船控制系统

• 航天器地面测试与监测设备

5. 通信与网络

• 电信交换与信号处理

• 卫星通信与传输控制

• 网络协议处理单元

6. 科研与医疗

• 实验数据采集与处理平台

• 高能物理实验装置控制

• 医疗影像与诊断设备的嵌入式核心

Motorola  VME162PA-344SE 01-W3528F60A电路板 英文资料：

Product Overview

The Motorola VME162PA-344SE 01-W3528F60A circuit board is an embedded processor board based on the VME bus architecture, widely used in industrial and scientific research systems. It is known for its high-performance CPU, flexible I/O interfaces, and excellent scalability, making it suitable for use in high reliability, long-term operation scenarios.

Technical Features

Based on Motorola 68040/68030 series processors

Supports VME bus standard for easy integration with other modular devices

Multi channel serial port, parallel port and other peripheral interfaces to meet data communication requirements

Support real-time operating systems (such as VxWorks, OS-9)

Sturdy structure, suitable for long-term operation in industrial and military environments

Application field

industrial control

Real time monitoring of production line

Process automation control

Factory data collection and equipment scheduling

Electricity and Energy

Power grid protection and automation control

Transmission and distribution monitoring system

Energy data collection and management

transportation

Urban rail and subway signal system

Traffic Monitoring and Dispatch Platform

Intelligent vehicle control module

Defense and Aerospace

Missile and radar control processing unit

Aircraft and Ship Control Systems

Ground testing and monitoring equipment for spacecraft

Communications and Networking

Telecommunications Switching and Signal Processing

Satellite Communication and Transmission Control

Network Protocol Processing Unit

Research and Medical

Experimental data collection and processing platform

Control of High Energy Physics Experimental Equipment

Embedded Core of Medical Imaging and Diagnostic Equipment

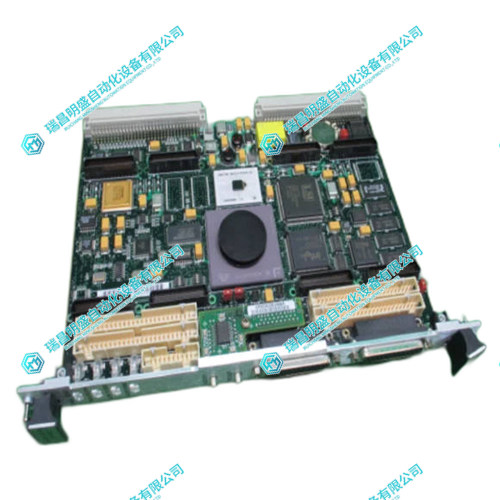

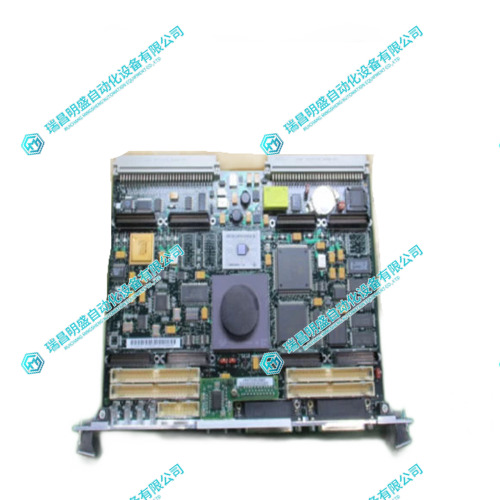

Motorola  VME162PA-344SE 01-W3528F60A电路板 产品展示
