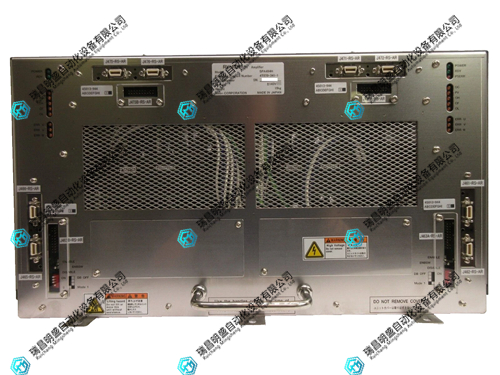

Nikon 4T070-341-1放大器模块 PDF资料
聊到Nikon 4T070-341-1这个放大器模块，它是Nikon NSR光刻机里负责信号放大和调理的电子单元。
特点
与4T070-335-1同系列但配置不同，增益参数或适配通道有所区别。
用于提升传感器或反馈信号的强度和质量。
模块化设计，便于快速替换和故障排查。
与主控系统之间采用标准化接口。
在NSR系列机台的电子系统维保中比较常见。
参数
货号：Nikon 4T070-341-1。
产品类别：放大器模块。
适配平台：Nikon NSR系列光刻系统。
主要功能：信号放大与噪声抑制。
供应形式：以功能完好的备件为主。
用途
运动平台的位置反馈信号调理。
对准系统传感器信号的前置放大。
环境监测传感器信号的采集链路放大。
老旧NSR机台信号链路的备件更换。
光刻机维护中信号质量问题的排查修复。
总的来说，4T070-341-1是Nikon NSR光刻机信号链路中的放大器模块，与同系列其他型号在配置上有所区分，主要用于提升信号传输质量，是光刻机电子系统维护中的常见备件
When it comes to the Nikon 4T070-341-1 amplifier module, it is the electronic unit responsible for signal amplification and conditioning in the Nikon NSR lithography machine.
Characteristics
Same series as 4T070-335-1 but with different configurations, gain parameters or adaptation channels.
Used to enhance the strength and quality of sensors or feedback signals.
Modular design facilitates quick replacement and troubleshooting.
Standardized interfaces are used between the main control system.
It is quite common in the electronic system maintenance of NSR series machines.
parameter
Item number: Nikon 4T070-341-1.
Product category: Amplifier module.
Adaptation platform: Nikon NSR series lithography system.
Main functions: signal amplification and noise suppression.
Supply form: Mainly functional spare parts.
Purpose
Adjust the position feedback signal of the sports platform.
Align the preamplifier of the system sensor signal.
Amplification of the collection link for environmental monitoring sensor signals.
Replacement of spare parts for the signal link of the old NSR machine.
Troubleshooting and repairing signal quality issues during lithography machine maintenance.
Overall, 4T070-341-1 is an amplifier module in the Nikon NSR lithography machine signal link, which differs in configuration from other models in the same series. It is mainly used to improve signal transmission quality and is a common spare part in the maintenance of lithography machine electronic systems
