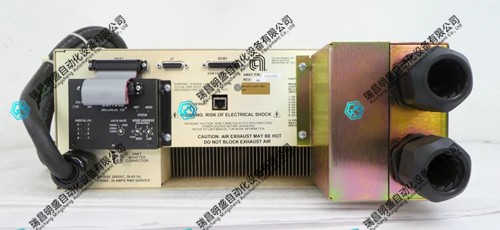

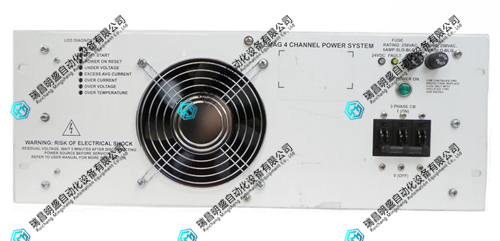

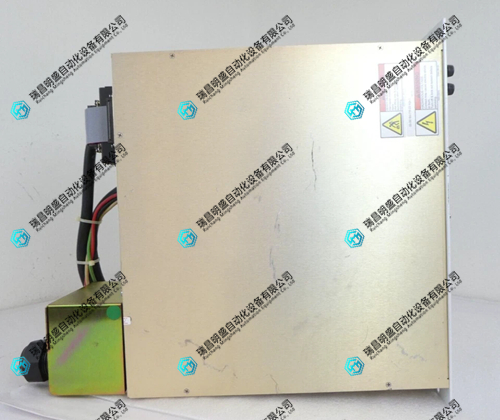

AMAT 0195-05598电源系统模块 PDF资料
说到AMAT 0195-05598这个电源模块，搞设备维护的兄弟应该都不陌生。它算是AMAT机台里跑得比较勤快的“供电管家”，虽然长得不起眼，但要是它撂挑子，整个腔体基本就得停工等配件了。我简单捋了捋这玩意儿的门道，大伙凑合看。
产品特点（核心亮点）
四路独立供电：一个模块顶四个用，能分别给腔体不同区域送电，互不干扰。
响应贼快：带Kollmorgen的血统，调压调速跟手，工艺切换时稳得住。
能热插拔：机台不停机也能抽换，抢修时能省不少事儿。
铜排加强版：高负荷下发热小，导电效率高，适合长时间跑重活。
适配性强：能跟主流射频电源和流量计搭着用，不用改太多线路。
产品参数（硬指标）
原厂货号：AMAT 0195-05598，认准这个号。
系统系列：EMAG四通道电源系统。
关联代号：Kollmorgen MAG05-25041-007。
物理形态：有标准款和铜排外露加强散热款可选。
状态标定：买二手务必确认是“可上机工作”状态，别买成配件拆机件。
应用领域（用在哪）
半导体刻蚀机（氧化层、金属层）。
PVD溅射镀膜（给靶材加压）。
CVD沉积（给反应气体提供能量）。
腔体干法清洗。
大尺寸玻璃基板镀膜（光伏/显示面板）。
结尾：
反正这玩意儿吧，用好了是台柱子，用不好就是定时炸弹。采购的时候眼睛瞪大点，0195-05598后面带的小版本号一个字母都不能差，否则插上去系统直接跟你翻脸不认人。
When it comes to the AMAT 0195-05598 power module, those who are involved in equipment maintenance should be familiar with it. It can be considered as the diligent "power manager" in AMAT machines. Although it looks unremarkable, if it is abandoned, the entire cavity will basically have to stop working and wait for accessories. I briefly traced the way of this thing, and everyone made do with it.
Product Features (Core Highlights)
Four independent power supplies: one module can provide power to four different areas of the cavity without interfering with each other.
Quick response: With the bloodline of Kollmorgen, it can adjust pressure and speed with ease, and is stable when switching processes.
Hot swappable: The machine can be replaced without stopping, saving a lot of trouble during emergency repairs.
Copper bar enhanced version: generates less heat under high load, has high conductivity efficiency, and is suitable for long-term heavy work.
Strong adaptability: It can be used with mainstream RF power supplies and flow meters without changing too many circuits.
Product parameters (hard indicators)
Original product number: AMAT 0195-05598, identify this number.
System series: EMAG four channel power supply system.
Association code: Kollmorgen MAG05-25041-007.
Physical form: There are standard models and copper bar exposed enhanced heat dissipation models to choose from.
Status calibration: When buying second-hand goods, it is necessary to confirm that they are in the "machine working" status, and do not buy them as disassembled parts.
Application field (where to use it)
Semiconductor etching machine (oxide layer, metal layer).
PVD sputtering coating (applying pressure to the target material).
CVD deposition (providing energy to the reaction gas).
Dry cleaning of the cavity.
Large size glass substrate coating (photovoltaic/display panel).
ending:
Anyway, this thing is a pillar when used properly, and a ticking time bomb when not used properly. When making purchases, keep your eyes wide open. The small version number after 0195-05598 must not be missing a single letter, otherwise it will directly turn against you and not recognize you when plugged into the system.
