Nikon 4S288-370-1前置放大器单元 PDF资料

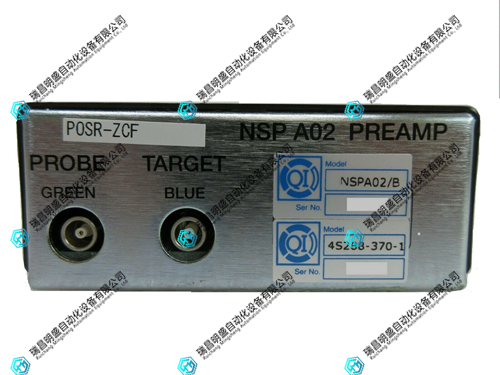

Nikon 4S288-370-1前置放大器单元：光刻机的位置信号翻译官
这款4S288-370-1是英国Queensgate Instruments为Nikon代工的前置放大器，型号NSPA02/B，用在Nikon NSR-S620D等浸没式光刻机里，负责把位置传感器的微弱信号放大到控制器能读懂的程度。
五个核心特点：
1、Queensgate Instruments原厂代工，型号NSPA02/B，属于精密位置传感系统的一部分。
2、负责把传感器捕捉到的微弱位移信号进行初级放大和调理，保证信号传输不失真。
3、Nikon NSR-S620D光刻机配套组件，常见于ArF浸没式扫描光刻系统。
4、插卡式模块设计，安装在主控机架中，方便维护和更换。
5、英国制造，工艺扎实，满足半导体设备的严苛要求。
五个关键参数：
1、零件号4S288-370-1，型号NSPA02/B。
2、Queensgate Instruments品牌，用于Nikon NSR系列光刻机。
3、常见于Nikon NSR-S620D ArF浸没式扫描光刻系统。
4、属于位置传感系统的前置放大单元。
5、二手市场多为功能完好的拆机备件。
五个典型应用：
1、Nikon NSR-S620D光刻机位置传感器信号放大。
2、光刻机晶圆台和掩模台的精密位置反馈。
3、Nikon NSR系列光刻设备维护中的备件更换。
4、光刻机干涉仪定位系统的信号调理。
5、二手半导体设备翻新和维修配套。
Nikon这块4S288-370-1前置放大器，在光刻机精密定位系统里扮演着信号翻译官的角色。它不显眼，但晶圆台能不能走准、套刻精度能不能达标，都跟它直接相关。对于维护NSR-S620D这类光刻机的朋友来说，了解这块板卡有助于信号链路排查，备着它心里也踏实。
Nikon 4S288-370-1 preamplifier unit: position signal translator for lithography machines
This 4S288-370-1 is a preamplifier manufactured by Queensgate Instruments for Nikon in the UK, model NSPA02/B. It is used in immersion lithography machines such as Nikon NSR-S620D to amplify weak signals from position sensors to a level that the controller can understand.
Five core characteristics:
1. Queensgate Instruments OEM, model NSPA02/B, is part of the precision position sensing system.
2. Responsible for primary amplification and conditioning of weak displacement signals captured by sensors to ensure signal transmission is not distorted.
3. Nikon NSR-S620D lithography machine matching components, commonly used in ArF immersion scanning lithography systems.
4. Plug in card module design, installed in the main control rack for easy maintenance and replacement.
5. Made in the UK with solid craftsmanship, meeting the stringent requirements of semiconductor equipment.
Five key parameters:
1. Part number 4S288-370-1, model NSPA02/B.
2. Queensgate Instruments brand, used for Nikon NSR series lithography machines.
3. Commonly seen in Nikon NSR-S620D ArF immersion scanning lithography system.
4. It belongs to the preamplifier unit of the position sensing system.
5. The second-hand market mostly consists of fully functional disassembled spare parts.
Five typical applications:
1. Nikon NSR-S620D lithography machine position sensor signal amplification.
2. Precise position feedback of lithography machine wafer stage and mask stage.
3. Replacement of spare parts in the maintenance of Nikon NSR series lithography equipment.
4. Signal conditioning for positioning system of lithography interferometer.
5. Renovation and maintenance of second-hand semiconductor equipment.
The Nikon 4S288-370-1 preamplifier plays the role of a signal translator in the precision positioning system of lithography machines. It is not conspicuous, but whether the crystal frustum can move accurately and whether the engraving accuracy can meet the standard are directly related to it. For friends who maintain lithography machines such as NSR-S620D, understanding this board is helpful for signal link troubleshooting, and having it prepared is also reassuring.
