HITACHI 560BIR01 1KGT034000R0101 二进制输入模块 PDF资料
1.产 品 资 料 介 绍：
HITACHI 560BIR01 1KGT034000R0101 二进制输入模块 产品简介
HITACHI 560BIR01 1KGT034000R0101 是 Hitachi Energy（原ABB电网业务）旗下 RTU560 产品线的一款高密度二进制输入模块，专为电网变电站自动化与控制而设计，负责采集断路器状态、隔离刀闸位置等关键信号并传输至 SCADA 系统。
产品特点
提供 16 路电隔离数字量输入通道，分为两组，每组 8 路。
支持 24-60V DC 过程电压版本。
具备 1ms 高分辨率事件时间戳（SOE）功能。
输入采用光电耦合隔离技术，保护内部电路。
每通道配备独立 LED 指示灯，实时显示信号状态。
支持高达 120Hz 的脉冲计数功能。
输入采用恒流二极管设计，稳定输入电流。
支持多种信号类型配置，包括单点、双点及数字测量值等。
内置事件缓存区，可存储最多 50 条带时间戳的事件记录。
通过背板总线供电并与 RTU560 主控单元通信，无需独立电源接口。
产品参数
型号：560BIR01 / 1KGT034000R0101。
品牌：Hitachi Energy（原ABB）。
通道数：16 路数字量输入（光耦隔离）。
所属系统：RTU560 变电站自动化远程终端单元。
产地：瑞典。
综上所述，Hitachi Energy 560BIR01 凭借其 16 路高密度通道、1ms 高精度事件时间戳及可靠的光耦隔离设计，是电网变电站自动化监控中的可靠组件。
HITACHI 560BIR01 1KGT034000R0101 二进制输入模块 英文介绍
HITACHI 560BIR01 1KGT034000R0101 Binary Input Module Product Introduction
HITACHI 560BIR01 1KGT034000R0101 is a high-density binary input module for the RTU560 product line under Hitachi Energy (formerly ABB Power Grid Business), designed specifically for automation and control of power grid substations. It is responsible for collecting key signals such as circuit breaker status and isolation switch position, and transmitting them to SCADA systems.
Product Features
Provide 16 electrically isolated digital input channels, divided into two groups of 8 channels each.
Supports 24-60V DC process voltage versions.
Equipped with 1ms high-resolution event timestamp (SOE) function.
The input adopts optoelectronic coupling isolation technology to protect the internal circuit.
Each channel is equipped with independent LED indicator lights to display signal status in real-time.
Supports pulse counting function up to 120Hz.
The input adopts a constant current diode design to stabilize the input current.
Supports multiple signal type configurations, including single point, dual point, and digital measurement values.
Built in event cache that can store up to 50 timestamp event records.
Powered by the backplane bus and communicating with the RTU560 main control unit without the need for an independent power interface.
Product Parameters
Model: 560BIR01/1KGT034000R0101.
Brand: Hitachi Energy (formerly ABB).
Number of channels: 16 digital inputs (optocoupler isolated).
System: RTU560 Substation Automation Remote Terminal Unit.
Origin: Sweden.
In summary, Hitachi Energy 560BIR01 is a reliable component in the automation monitoring of power grid substations due to its 16 high-density channels, 1ms high-precision event timestamps, and reliable optocoupler isolation design.

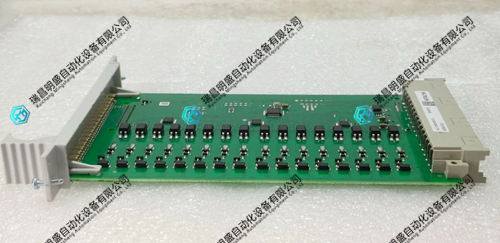

HITACHI 560BIR01 1KGT034000R0101 二进制输入模块 产品图片
