SMC HRZD020-WS-WS 双通道变频冷水机组 PDF资料
1.产 品 资 料 介 绍：
SMC HRZD020-WS-WS 双通道变频冷水机组：高效节能的双核温控利器
该机型将两套独立温控系统集成于一体，以紧凑设计实现高效、精准、节能的双通道温控，是高端制造的理想配套设备。
产品特点
双通道独立控温，可对两台不同设备分别设定不同温度。
压缩机和泵均采用变频技术，按需输出，节能效果显著。
集成化设计，安装占地面积比两台单通道机型减少23%。
整机只需单根主电源和单组冷却水管，安装配线简单。
高精度PID控制，温控稳定性可达±0.1℃。
单通道冷却能力达9.5kW，总能力接近19kW。
所需冷却设施水流量仅需15L/min，大幅节水。
循环液流量可在10~40 L/min范围内宽幅调节。
标配RS-485等通讯接口，便于接入上位机集中监控。
兼容纯水、氟化液、乙二醇水溶液等多种导热介质。
核心参数
单通道冷却能力：9.5 kW（标准工况下）。
温度设定范围：-30 至 90℃。
温度稳定性：±0.1℃。
循环液流量设定：10~40 L/min（每通道）。
电源与尺寸：三相200~208V AC；宽600×深845×高1525 mm。
总结
SMC HRZD020-WS-WS以双通道集成设计为核心，兼具大冷量、高精度和低能耗优势，能显著节省安装空间与水电资源，为精密温控需求提供了高效、可靠的一体化解决方案。
SMC HRZD020-WS-WS 双通道变频冷水机组 英文介绍
SMC HRZD020-WS-WS dual channel variable frequency chiller: an efficient and energy-saving dual core temperature control tool
This model integrates two independent temperature control systems into one, achieving efficient, precise, and energy-saving dual channel temperature control with a compact design, making it an ideal supporting equipment for high-end manufacturing.
Product Features
Dual channel independent temperature control, capable of setting different temperatures for two different devices.
Both the compressor and pump adopt frequency conversion technology, which outputs according to demand and has significant energy-saving effects.
Integrated design reduces installation footprint by 23% compared to two single channel models.
The whole machine only requires a single main power supply and a single set of cooling water pipes, with simple installation and wiring.
High precision PID control, temperature control stability can reach ± 0.1 ℃.
The single channel cooling capacity reaches 9.5kW, and the total capacity is close to 19kW.
The required cooling facility water flow rate is only 15L/min, which greatly saves water.
The circulating liquid flow rate can be widely adjusted within the range of 10-40 L/min.
Standard communication interfaces such as RS-485 are available for easy access to the upper computer for centralized monitoring.
Compatible with various thermal conductive media such as pure water, fluorinated liquids, and ethylene glycol aqueous solutions.
Core parameters
Single channel cooling capacity: 9.5 kW (under standard operating conditions).
Temperature setting range: -30 to 90 ℃.
Temperature stability: ± 0.1 ℃.
Circulating liquid flow rate setting: 10-40 L/min (per channel).
Power supply and size: three-phase 200~28V AC; Width 600 x Depth 845 x Height 1525mm.
Summary
SMC HRZD020-WS-WS features a dual channel integrated design as its core, combining the advantages of large cooling capacity, high precision, and low energy consumption. It can significantly save installation space and water and electricity resources, providing an efficient and reliable integrated solution for precision temperature control needs.

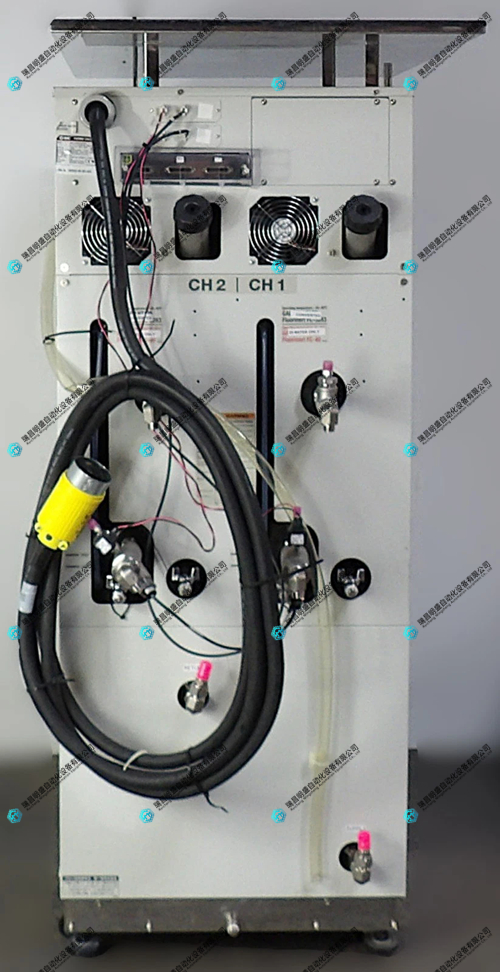

SMC HRZD020-WS-WS 双通道变频冷水机组 产品图片
