DS200ADGIH1A 辅助接口板 PDF资料
1.产 品 资 料 介 绍：
DS200ADGIH1A 是通用电气为 Mark V Speedtronic 涡轮控制系统设计的辅助接口板，用于涡轮控制柜与 DC2000 直流驱动系统之间的信号交互。
产品特点
作为辅助接口驱动板，为涡轮控制与直流驱动提供信号桥梁。
集成 40 芯扁平电缆接口与 60 只配置跳线，支持在线配置参数。
采用板上 DC-DC 隔离电源，实现 1500Vrms 强化隔离。
具备 32 路差分通道，输入/输出可跳线配置。
信号传输延迟≤3ms，满足实时性要求。
采用 FR-4 基材与三防漆涂层，适应恶劣机柜环境。
板载绿色 IMOK 与红色 FAIL LED 指示灯。
与 DS200LDCC 驱动控制板配合使用。
可搭配 μGENI 网络接口板接入 Genius I/O 网络。
适用于 9E、6B、7FA 等燃气轮机及 Mark V 升级项目。
产品参数
逻辑电源：5V DC ±5%，≤0.8A。
驱动电源：24V DC ±10%，≤1.2A。
I/O 通道：32 路差分，可配置。
隔离耐压：1500V AC，1 分钟。
尺寸：160×100×20mm，约 0.15kg。
结尾
DS200ADGIH1A 是 GE Mark V 系统的信号接口板，以高隔离电压和灵活配置为特点，适用于涡轮与直流驱动间的信号交互
DS200ADGIH1A 辅助接口板 英文介绍
DS200ADGIH1A is an auxiliary interface board designed by General Electric for the Mark V Speedtronic turbine control system, used for signal interaction between the turbine control cabinet and the DC2000 DC drive system.
Product Features
As an auxiliary interface driver board, it provides a signal bridge for turbine control and DC drive.
Integrated 40 core flat cable interface and 60 configured jumpers, supporting online parameter configuration.
Adopting on-board DC-DC isolated power supply to achieve 1500Vrms enhanced isolation.
Equipped with 32 differential channels, input/output can be configured with jumper wires.
Signal transmission delay ≤ 3ms, meeting real-time requirements.
Using FR-4 substrate and three proof paint coating, it is suitable for harsh cabinet environments.
Onboard green IMOK and red FAIL LED indicator light.
Used in conjunction with the DS200LDCC driver control board.
Can be paired with a μ GENI network interface board to connect to Genius I/O network.
Suitable for 9E, 6B, 7FA gas turbines and Mark V upgrade projects.
Product Parameters
Logic power supply: 5V DC ± 5%, ≤ 0.8A.
Drive power supply: 24V DC ± 10%, ≤ 1.2A.
I/O channels: 32 differential channels, configurable.
Isolation withstand voltage: 1500V AC, 1 minute.
Size: 160 × 100 × 20mm, approximately 0.15kg.
ending
DS200ADGIH1A is a signal interface board for the GE Mark V system, characterized by high isolation voltage and flexible configuration, suitable for signal interaction between turbines and DC drives

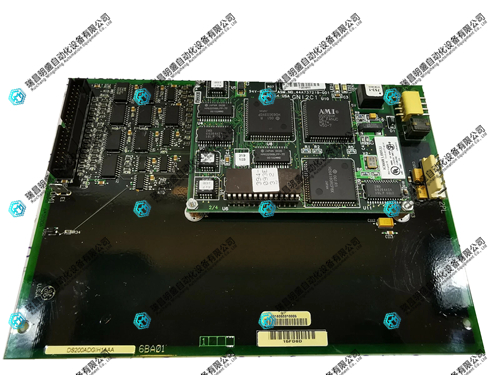

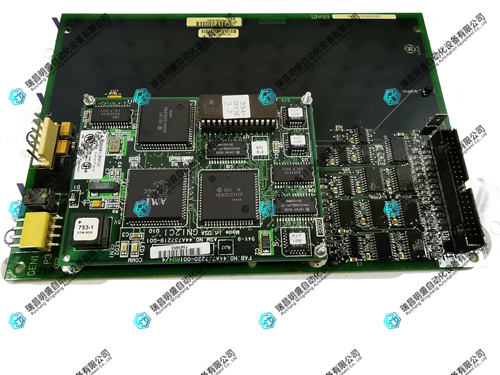

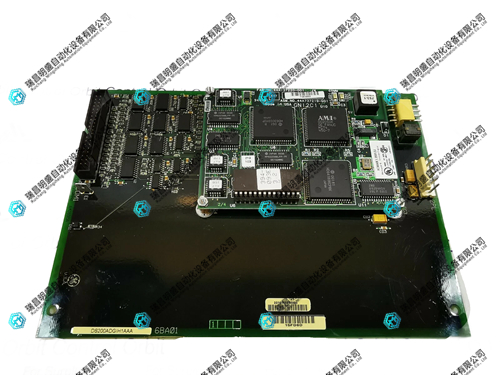

DS200ADGIH1A 辅助接口板 产品图片
