DS200ADCIH1ADB 输入 / 输出板 PDF资料
1.产 品 资 料 介 绍：

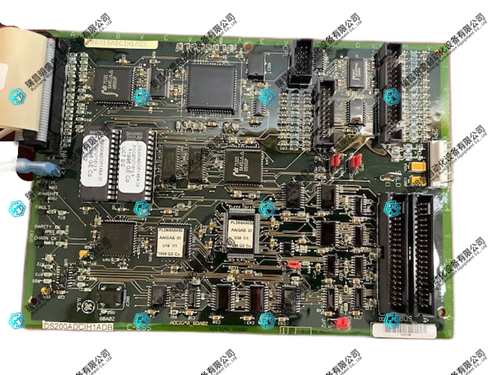

DS200ADCIH1ADB 是通用电气为 Speedtronic Mark V 涡轮控制系统设计的 Genius 通信适配器板，连接 Mark V 控制器与 Genius I/O 网络。
产品特点
管理 Mark V 控制器与 Genius I/O 网络之间的总线通信。
自动轮询 I/O 块并采集过程数据。
支持双 Genius 总线冗余配置，主总线故障时可切换至备用总线。
板载可插拔 PROM 模块，更换板卡时无需重新配置。
支持热插拔，更换模块无需中断系统运行。
同时适用于 Mark V 涡轮控制系统与 EX2100 励磁控制系统。
紧凑型 PCB 设计，适合标准 Mark V 机架插槽安装。
通信速率 153.6 Kbps，最大总线长度 750 米。
最多支持 32 个 Genius 设备。
总线与背板间隔离电压达 1500V DC。
产品参数
网络协议：Genius I/O，通信速率 153.6 Kbps。
接口：背板连接器，支持屏蔽双绞线总线。
隔离电压：1500V DC。
供电：+5V DC，约 300mA。
尺寸：6 英寸×1.25 英寸，重量约 0.52kg。
结尾
DS200ADCIH1ADB 是 GE Mark V 系统的 Genius 适配器板，承担控制器与现场 I/O 网络间的通信任务，以冗余设计和热插拔特性提升系统可靠性
DS200ADCIH1ADB is a Genius communication adapter board designed by General Electric for the Speedtronic Mark V turbine control system, connecting the Mark V controller to the Genius I/O network.
Product Features
Manage the bus communication between the Mark V controller and the Genius I/O network.
Automatically poll the I/O block and collect process data.
Supports dual Genius bus redundancy configuration, and can switch to the backup bus in case of main bus failure.
The onboard pluggable PROM module does not require reconfiguration when replacing the board.
Support hot swapping, replacing modules without interrupting system operation.
Suitable for both Mark V turbine control system and EX2100 excitation control system.
Compact PCB design, suitable for standard Mark V rack slot installation.
The communication speed is 153.6 Kbps and the maximum bus length is 750 meters.
Supports up to 32 Genius devices.
The isolation voltage between the bus and the backplane reaches 1500V DC.
Product Parameters
Network protocol: Genius I/O, communication rate 153.6 Kbps.
Interface: Backplane connector, supporting shielded twisted pair bus.
Isolation voltage: 1500V DC.
Power supply:+5V DC, approximately 300mA.
Size: 6 inches x 1.25 inches, weight approximately 0.52kg.
ending
DS200ADCIH1ADB is a Genius adapter board for the GE Mark V system, responsible for communication between the controller and the on-site I/O network. It enhances system reliability through redundant design and hot swappable features
