PHILIPS 453567026141 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
PHILIPS 453567026141 印刷电路板是飞利浦医疗或专业设备中的定制化PCBA组件，用于信号传输与电路控制。
产品特点
采用FR-4玻璃纤维基材，电气性能稳定。
表面沉金处理，可焊性与抗氧化性好。
布设高密度焊盘，支持BGA等细间距封装芯片。
边缘设连接器接口，用于与主控单元互联。
采用高TG阻焊油墨，耐热性与绝缘性良好。
走线包含差分阻抗控制，适配高频信号传输。
板面丝印位号清晰，便于贴片与维修。
设有光学定位点，适配高速贴片机。
外形裁切光滑，符合精密安装要求。
板厚约1.6mm，符合标准工业规格。
产品参数
基材：FR-4。
层数：多层板。
表面处理：沉金。
板厚：约1.6mm。
工艺：符合RoHS标准。
结尾
PHILIPS 453567026141 是一款医疗或专业设备用的定制PCB，在信号完整性和可靠性方面有较高设计标准
PHILIPS 453567026141 印刷电路板 英文介绍
PHILIPS 453567026141 printed circuit board is a customized PCBA component used for signal transmission and circuit control in Philips medical or professional equipment.
Product Features
Using FR-4 glass fiber substrate, the electrical performance is stable.
Surface immersion gold treatment, good weldability and oxidation resistance.
Install high-density solder pads and support BGA and other fine pitch packaged chips.
Install connector interfaces at the edge for interconnection with the main control unit.
Using high TG solder mask ink, it has good heat resistance and insulation properties.
The wiring includes differential impedance control and is suitable for high-frequency signal transmission.
The screen printing label on the board is clear, making it easy to apply and repair.
Equipped with optical positioning points, suitable for high-speed surface mount machines.
The shape is cut smoothly and meets the requirements of precision installation.
The plate thickness is about 1.6mm, which meets the standard industrial specifications.
Product Parameters
Substrate: FR-4.
Number of layers: multi-layer board.
Surface treatment: Sinking gold.
Plate thickness: approximately 1.6mm.
Process: Compliant with RoHS standards.
ending
PHILIPS 453567026141 is a customized PCB for medical or professional equipment, with high design standards for signal integrity and reliability

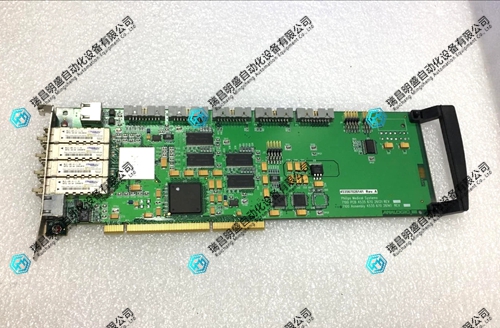

PHILIPS 453567026141 印刷电路板 产品图片
