NI PCI-6509 数字输入 / 输出卡 PDF资料
1.产 品 资 料 介 绍：
NI PCI-6509 数字输入/输出卡

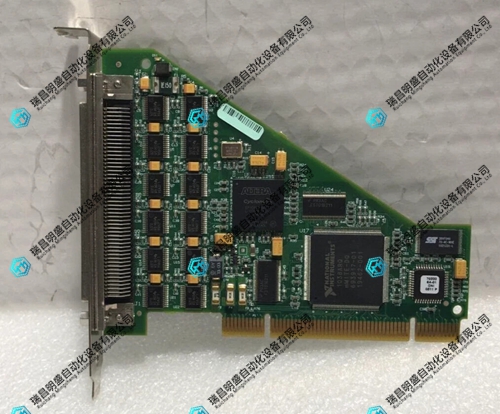

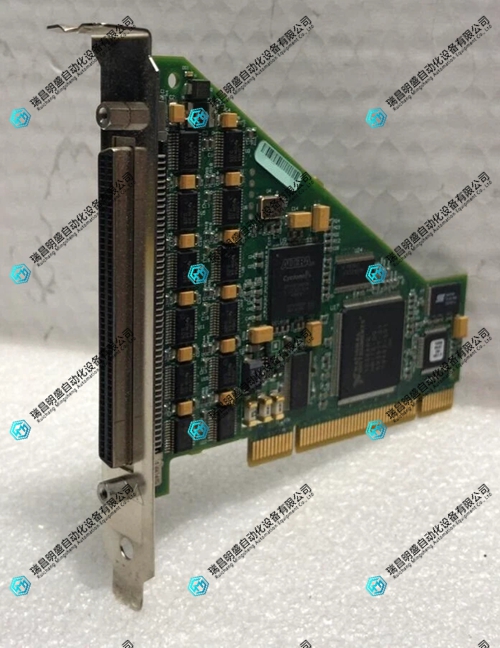

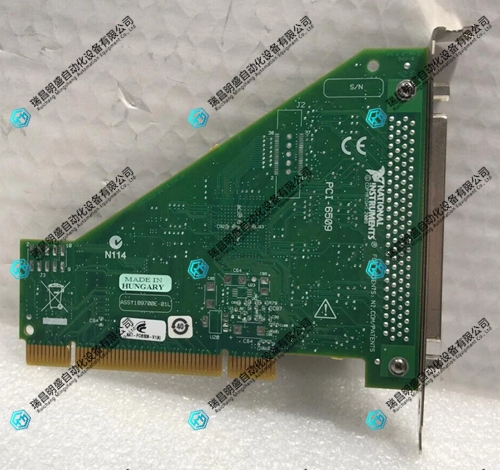

NI PCI-6509 是美国国家仪器推出的一款96通道数字I/O数据采集卡，适用于PCI总线计算机，常用于工业控制与自动化测试。以下是其核心特点与关键参数。
产品特点
提供96路双向数字I/O通道，可按8位端口独立配置方向。
兼容5V TTL/CMOS逻辑电平，可直接连接外部数字设备。
每通道驱动电流±24mA，可直接驱动多种执行器。
支持可编程上电状态，预设安全输出避免误动作。
内置数字I/O看门狗，故障时自动切换至安全状态。
支持变化检测功能，状态改变时主动触发响应。
可编程输入滤波器，消除信号毛刺和开关抖动。
采用100针SCSI连接器，需配合屏蔽电缆和接线盒使用。
配套NI-DAQmx驱动，支持LabVIEW等开发环境。
该型号已停产，推荐替代型号为PCIe-6509。
产品参数总线接口：PCI
I/O通道数：96路双向
逻辑电平：5V TTL/CMOS
驱动电流：±24mA/通道
工作温度：0℃ ~ 55℃
总结
NI PCI-6509 以96通道高密度和强驱动能力为特点，适用于工业控制与测试场景
NI PCI-6509 Digital Input/Output Card
NI PCI-6509 is a 96 channel digital I/O data acquisition card launched by National Instruments in the United States, suitable for PCI bus computers and commonly used in industrial control and automation testing. The following are its core characteristics and key parameters.
Product Features
Provide 96 bidirectional digital I/O channels, which can be independently configured with directions based on 8-bit ports.
Compatible with 5V TTL/CMOS logic levels, it can be directly connected to external digital devices.
Each channel has a driving current of ± 24mA and can directly drive multiple actuators.
Support programmable power on status, preset safety output to avoid misoperation.
Built in digital I/O watchdog, automatically switches to a safe state in case of malfunction.
Support change detection function, actively triggering response when the state changes.
Programmable input filter to eliminate signal glitches and switch jitter.
Using a 100 pin SCSI connector, it needs to be used in conjunction with shielded cables and junction boxes.
Equipped with NI DAQmx driver, supporting development environments such as LabVIEW.
This model has been discontinued, and the recommended alternative model is PCIe-6509.
Product Parameters
Bus interface: PCI
Number of I/O channels: 96 bidirectional channels
Logic level: 5V TTL/CMOS
Drive current: ± 24mA/channel
Working temperature: 0 ℃~55 ℃
Summary
The NI PCI-6509 is characterized by 96 channel high-density and strong driving capability, suitable for industrial control and testing scenarios. This product has been discontinued, and a new design can consider PCIe-6509.
