ECOVARIO 414AR-BJ-030-000 控制模块 PDF资料
1.产 品 资 料 介 绍：
ECOVARIO 414AR-BJ-030-000 控制模块
ECOVARIO 414AR-BJ-030-000 是一款单轴伺服放大器，适用于无刷同步电机、直线电机、直流电机及步进电机的精确控制，常用于电子制造、光学设备、包装等自动化领域。以下是其核心特点与关键参数。
产品特点
支持扭矩、速度、位置等多种控制模式，适配多种类型电机。
兼容CANopen、EtherCAT、PROFIBUS、RS232、RS485等多种总线接口。
支持增量编码器和绝对值编码器，可同时处理多路反馈信号。
配备数字滤波与加加速度滤波功能，优化运动轨迹，抑制机械谐振。
标配STO安全转矩关断功能，符合SIL 2 / PL d安全等级。
自带6个数字量输入、3个数字量输出及2个模拟量输入，减少外部I/O需求。
内置短路、过压、过热、编码器故障等多种保护机制。
配套调试软件，含参数向导和示波器功能，调试快速便捷。
结构紧凑，尺寸约62×279×167mm，适合机柜安装。
支持电子齿轮、飞剪、卷绕、色标定位等高级运动功能。
产品参数供电电压：48~360V DC 或 36~265V AC
峰值输出电流：14A
最大功率：7.1kW
控制轴数：单轴
防护等级：IP20
总结
ECOVARIO 414AR-BJ-030-000 以多种控制模式、丰富接口和集成安全功能为特点，适用于对精度和可靠性要求较高的单轴运动控制场景。
ECOVARIO 414AR-BJ-030-000 控制模块 英文介绍
ECOVARIO 414AR-BJ-030-000 Control Module
ECOVARIO 414AR-BJ-030-000 is a single axis servo amplifier suitable for precise control of brushless synchronous motors, linear motors, DC motors, and stepper motors. It is commonly used in automation fields such as electronic manufacturing, optical equipment, and packaging. The following are its core characteristics and key parameters.
Product Features
Supports multiple control modes such as torque, speed, and position, and is compatible with various types of motors.
Compatible with various bus interfaces such as CANopen, EtherCAT, PROFIBUS, RS232, RS485, etc.
Supports incremental encoders and absolute value encoders, capable of processing multiple feedback signals simultaneously.
Equipped with digital filtering and acceleration filtering functions to optimize motion trajectory and suppress mechanical resonance.
Standard STO safety torque cutoff function, compliant with SIL 2/PL d safety level.
Comes with 6 digital inputs, 3 digital outputs, and 2 analog inputs, reducing external I/O requirements.
Built in multiple protection mechanisms such as short circuit, overvoltage, overheating, and encoder failure.
Equipped with debugging software, including parameter guides and oscilloscope functions, for fast and convenient debugging.
Compact structure, with dimensions of approximately 62 × 279 × 167mm, suitable for cabinet installation.
Support advanced motion functions such as electronic gears, flying shears, winding, and color code positioning.
Product Parameters
Supply voltage: 48-360V DC or 36-265V AC
Peak output current: 14A
Maximum power: 7.1kW
Number of control axes: single axis
Protection level: IP20
Summary
ECOVARIO 414AR-BJ-030-000 features multiple control modes, rich interfaces, and integrated safety functions, making it suitable for single axis motion control scenarios that require high precision and reliability.

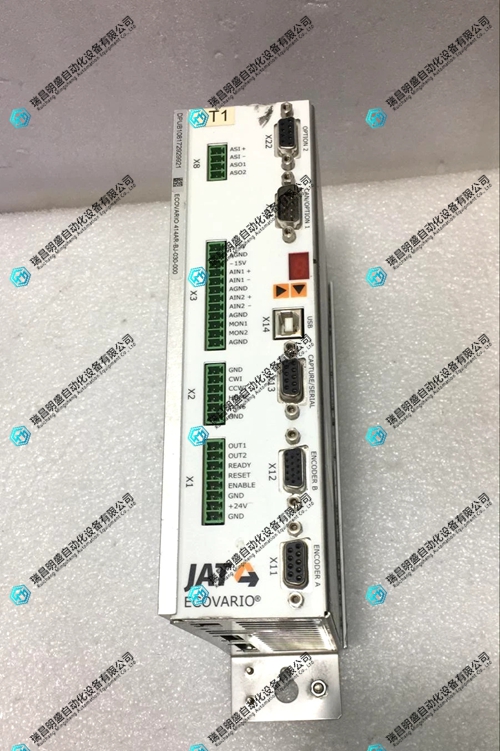

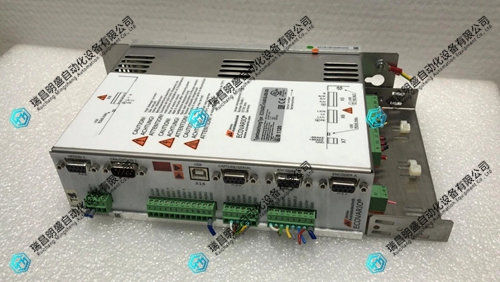

ECOVARIO 414AR-BJ-030-000 控制模块 产品图片
