Advantech PCA-6143P 中央处理器模块 PDF资料
1.产 品 资 料 介 绍：
Advantech PCA-6143P 中央处理器模块
该模块为Advantech（研华）推出的半尺寸ISA总线单板计算机，基于80486处理器平台，专为工业控制、嵌入式系统及传统系统升级等场景设计，具备良好的扩展性与环境适应性。
产品特点
支持80486SX/DX/DX2等多种处理器型号，主频覆盖25MHz至100MHz
采用ALI M1219芯片组，32位数据总线，兼容ISA总线架构
板载2个30-pin SIMM插槽，DRAM内存容量支持1MB至32MB
内置Flash/ROM Disk，可模拟1.44MB软盘驱动器，便于系统引导
提供1个IDE接口和1个FDD接口，支持多存储设备连接
配备2个串行端口及1个增强型并口，满足外围设备连接需求
提供PC/104 16-bit扩展总线，支持功能子卡扩展
内置硬件看门狗定时器，系统异常时可自动复位
半尺寸紧凑设计，适用于空间受限的工业机箱
工业级构造，工作温度范围0°C至60°C，MTBF达64,500小时
产品参数
型号：PCA-6143P
品牌：Advantech（研华）
总线类型：ISA
外形规格：半尺寸单板计算机
供电需求：+5V DC
总之，Advantech PCA-6143P 性能成熟、扩展灵活、工业可靠性高，是传统ISA总线工业控制系统的理想核心组件。
Advantech PCA-6143P 中央处理器模块 英文介绍
Advantech PCA-6143P Central Processing Unit Module
This module is a half-sized ISA bus single-board computer launched by Advantech. It is based on the 80486 processor platform and is specifically designed for industrial control, embedded systems, and traditional system upgrades. It has excellent scalability and environmental adaptability.
Product features
Supports various processor models such as 80486SX/DX/DX2, with frequency ranges from 25MHz to 100MHz.
Uses the ALI M1219 chipset, featuring a 32-bit data bus and compatibility with ISA bus architecture.
Includes 2 30-pin SIMM slots, with DRAM memory capacity ranging from 1MB to 32MB.
Built-in Flash/ROM Disk, capable of simulating a 1.44MB floppy disk drive, facilitating system booting.
Provides 1 IDE interface and 1 FDD interface, supporting multiple storage device connections.
Equipped with 2 serial ports and 1 enhanced parallel port, meeting the requirements for peripheral device connections.
Provides PC/104 16-bit expansion bus, supporting function card expansion.
Includes a hardware watchdog timer, automatically resetting in case of system anomalies.
Compact half-size design, suitable for industrial chassis with limited space.
Industrial-grade construction, operating temperature range of 0°C to 60°C, with an MTBF of 64,500 hours.
Product parameters
Model: PCA-6143P
Brand: Advantech (Research & Technology)
Bus type: ISA
Form factor: Half-size single-board computer
Power supply requirement: +5V DC
In summary, Advantech PCA-6143P is mature in performance, flexible in expansion, and highly reliable in industrial applications, making it an ideal core component for traditional ISA bus industrial control systems.

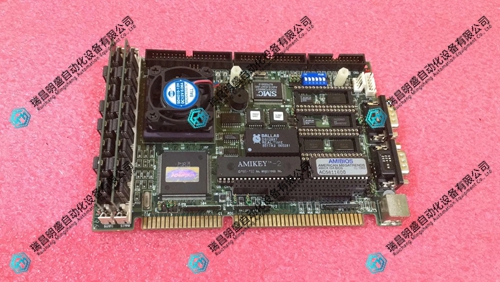

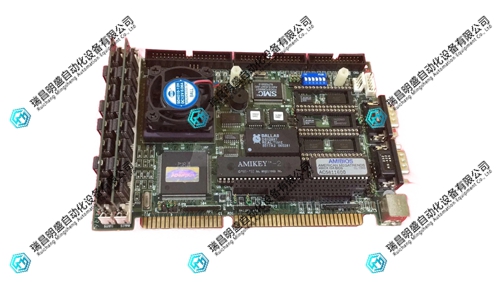

Advantech PCA-6143P 中央处理器模块 产品图片
