Dtims CPB4612-LF 控制板 PDF资料
1.产 品 资 料 介 绍：
Dtims CPB4612-LF 控制板
该控制板为Dtims（Diversified Technology）推出的6U CompactPCI规格单板计算机，基于Intel Pentium M处理器，适用于工业控制、通信设备及嵌入式系统等场景。
产品特点
采用Intel Pentium M处理器，集成1MB二级缓存
配备Intel 855GME芯片组，集成显示控制器
符合CompactPCI规范，6U单槽尺寸
板载DDR内存，容量256MB至2GB可选
双路千兆以太网及前面板百兆以太网接口
支持一个64bit/66MHz PMC扩展槽
前面板提供USB、串口及复位按键
支持IPMI系统环境监控及看门狗定时器
兼容Windows、Linux、VxWorks等操作系统
适用于工业控制、通信、嵌入式系统等领域
产品参数
型号：CPB4612-LF
品牌：Dtims（Diversified Technology）
规格：6U CompactPCI单槽
供电：+5V、+3.3V、+12V
工作温度：需配合风冷散热
总之，Dtims CPB4612-LF 性能稳定、扩展丰富、兼容性强，是CompactPCI平台嵌入式应用的可靠选择。
Dtims CPB4612-LF 控制板 英文介绍
Dtims CPB4612-LF Control Board
This control board is a 6U CompactPCI specification single-board computer launched by Dtims (Diversified Technology). It is based on the Intel Pentium M processor and is suitable for industrial control, communication equipment, and embedded systems, among other applications.
Product features
Equipped with Intel Pentium M processor, featuring 1MB secondary cache
Equipped with Intel 855GME chipset, integrating display controller
Compliant with CompactPCI standard, 6U single-slot size
Board-mounted DDR memory, capacity ranging from 256MB to 2GB selectable
Dual Gigabit Ethernet and front panel 100Mbps Ethernet interface
Supports one 64bit/66MHz PMC expansion slot
Front panel provides USB, serial port and reset button
Supports IPMI system environment monitoring and watchdog timer
Compatible with Windows, Linux, VxWorks and other operating systems
Suitable for industrial control, communication, embedded systems and other fields
Product Specifications
Model: CPB4612-LF
Brand: Dtims (Diversified Technology)
Specification: 6U CompactPCI single slot
Power supply: +5V, +3.3V, +12V
Operating temperature: Requires cooling by forced air
In summary, Dtims CPB4612-LF has stable performance, rich expansion options, and strong compatibility. It is a reliable choice for embedded applications on the CompactPCI platform.

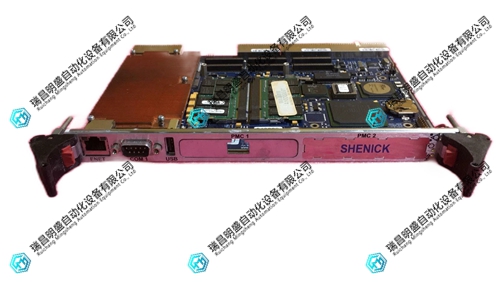

Dtims CPB4612-LF 控制板 产品图片
