ACS DDM3U-2-320V-20A 电机驱动模块 PDF资料
1.产 品 资 料 介 绍：
ACS DDM3U-2-320V-20A 电机驱动模块产品简介：
产品特点：
双轴通用数字驱动模块，支持有刷、无刷、步进及交流感应电机。
每轴连续电流20A，峰值电流40A，满足高扭矩需求。
两轴同时运行时连续功率达8330W，峰值功率11102W。
驱动电源输入范围24Vdc至320Vdc，最高允许再生电压420V。
采用低噪声PWM技术，实现优异的位置抖动和速度平滑度。
由MC4U控制器层专用伺服处理器直接控制，支持MIMO等先进控制算法。
内置过压、欠压、过流、过温及短路多重保护机制。
全数字控制，便于设置和诊断，支持多种电机类型灵活配置。
专为MC4U集成控制系统设计，高密度布局节省机柜空间。
符合CE、UL等国际安全认证标准。
主要参数：
轴数：2轴，轴标识为X、Y（或A、B）。
连续/峰值电流（每轴）：20A / 40A（正弦幅值）。
驱动电源输入：24-320Vdc，控制电源：24Vdc（19-29Vdc）。
最大输出功率（两轴同时）：连续8330W，峰值11102W。
工作温度：0 ~ 55℃（DNV GL认证环境下）。
总结：ACS DDM3U-2-320V-20A 电机驱动模块具备高功率密度、宽电压范围和灵活的多电机适配能力，适用于精密定位、大型龙门台等复杂工业自动化应用场景，是MC4U系统的高性能驱动核心组件。
ACS DDM3U-2-320V-20A 电机驱动模块 英文介绍
ACS DDM3U-2-320V-20A Motor Drive Module Product Introduction:
Product Features:
Dual axis universal digital drive module, supporting brushed, brushless, stepper, and AC induction motors.
Each axis has a continuous current of 20A and a peak current of 40A, meeting high torque requirements.
When two axes run simultaneously, the continuous power reaches 8330W and the peak power is 11102W.
The input range of the driving power supply is 24Vdc to 320Vdc, with a maximum allowable regenerative voltage of 420V.
Adopting low-noise PWM technology to achieve excellent position jitter and speed smoothness.
Directly controlled by a dedicated servo processor at the MC4U controller layer, supporting advanced control algorithms such as MIMO.
Built in multiple protection mechanisms for overvoltage, undervoltage, overcurrent, overtemperature, and short circuit.
Fully digital control, easy to set up and diagnose, supports flexible configuration of multiple motor types.
Specially designed for MC4U integrated control systems, high-density layout saves cabinet space.
Compliant with international safety certification standards such as CE and UL.
Main parameters:
Number of axes: 2 axes, labeled as X, Y (or A, B).
Continuous/peak current (per axis): 20A/40A (sine amplitude).
Drive power input: 24-320VDC, control power: 24Vdc (19-29Vdc).
Maximum output power (two axes simultaneously): continuous 8330W, peak 11102W.
Working temperature: 0~55 ℃ (in DNV GL certified environment).
Summary: The ACS DDM3U-2-320V-20A motor drive module has high power density, wide voltage range, and flexible multi motor adaptability, suitable for complex industrial automation applications such as precision positioning and large gantry platforms. It is the high-performance drive core component of MC4U systems.

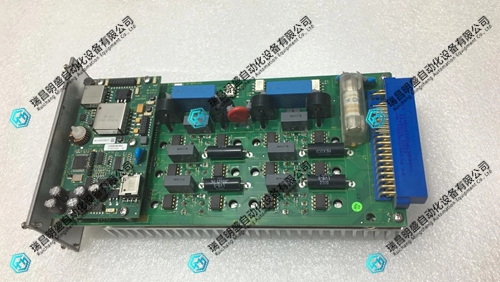

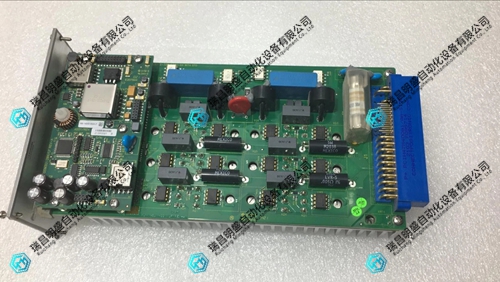

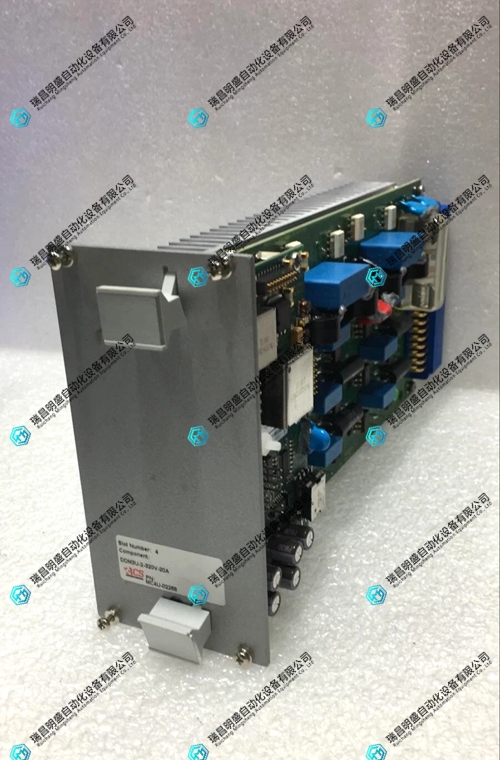

ACS DDM3U-2-320V-20A 电机驱动模块 产品图片
