OLYMPUS IX2-UCB-2 显微镜控制箱 PDF资料

1.产 品 资 料 介 绍：

OLYMPUS IX2-UCB-2 是奥林巴斯IX2系列电动显微镜的核心控制模块，集成了电源供应和驱动控制功能，支持手控或电脑软件操作。

产品特点

• 作为IX2电动显微镜驱动控制的基本模块，内置电源装置。

• 可与IX81S1F-2、IX81S8F-2和IX81F-2三种镜架组合使用。

• 支持通过U-HSTR2手控开关手动操作，也可连接电脑通过软件控制。

• 搭载RS232C接口，支持与PC通信及软件控制。

• 配备10个模块安装检查LED指示灯和ERR错误指示灯，便于状态监控与故障排查。

• 前面板设有通风口用于散热，安装时需在周围留出10厘米以上空间。

• 配备了12V 100W卤素灯照明电源，专为此系统设计。

• 兼容IX2-BSW软件，可自定义按钮功能。

• 不兼容BX2系列部件，请勿混用。

• 输入电压具备自动电压选择功能。

产品参数

• 输入电压为100～120V或220～240VAC，频率50或60赫兹，电流分别为3.5安培或1.5安培。

• 可选模块插槽共3个。

• 单槽供电能力为+5V最大1安培，+15V最大1安培，+24V最大1安培。

• 外形尺寸为宽度125毫米，高度216毫米，深度310毫米，重量约5公斤。

• 工作环境温度为10至35摄氏度，最大相对湿度为80%。

结尾

OLYMPUS IX2-UCB-2 控制箱作为IX2电动显微镜系统的核心控制与供电单元，为电动镜架、物镜切换及荧光滤色块等部件提供集中控制，是构建自动化显微成像系统的基础组件。

OLYMPUS IX2-UCB-2 显微镜控制箱  英文介绍

The Olympus IX2-UCB-2 is the core control module of the Olympus IX2 series electric microscope, integrating power supply and drive control functions, supporting manual control or computer software operation.

Product Features

As the basic module for driving and controlling the IX2 electric microscope, it is equipped with a built-in power supply device.

Can be used in combination with three types of frames: IX81S1F-2, IX81S8F-2, and IX81F-2.

Supports manual operation through the U-HSTR2 manual control switch, or can be connected to a computer for software control.

Equipped with RS232C interface, supporting communication with PC and software control.

Equipped with 10 module installation check LED indicator lights and ERR error indicator lights for easy status monitoring and troubleshooting.

The front panel is equipped with ventilation openings for heat dissipation, and a space of at least 10 centimeters should be left around during installation.

Equipped with a 12V 100W halogen lighting power supply, specifically designed for this system.

Compatible with IX2-BSW software, customizable button functions.

Not compatible with BX2 series components, please do not mix.

The input voltage has an automatic voltage selection function.

Product Parameters

The input voltage is 100-120V or 220-240VAC, the frequency is 50 or 60 Hz, and the current is 3.5 amperes or 1.5 amperes, respectively.

There are a total of 3 optional module slots.

The maximum power supply capacity of a single slot is 1 ampere for+5V, 1 ampere for+15V, and 1 ampere for+24V.

The external dimensions are a width of 125 millimeters, a height of 216 millimeters, a depth of 310 millimeters, and a weight of approximately 5 kilograms.

The working environment temperature ranges from 10 to 35 degrees Celsius, with a maximum relative humidity of 80%.

ending

The OLYMPUS IX2-UCB-2 control box serves as the core control and power supply unit of the IX2 electric microscope system, providing centralized control for components such as the electric frame, objective lens switching, and fluorescence filter block. It is the fundamental component for building an automated microscopy imaging system.

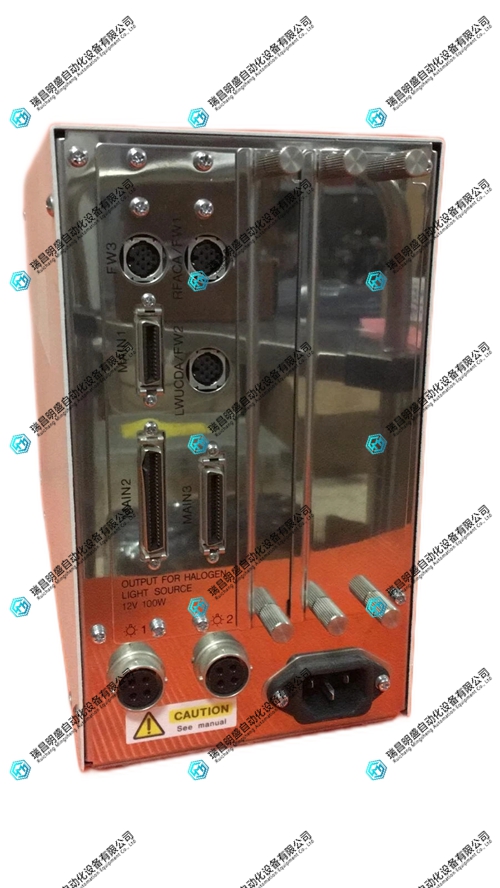

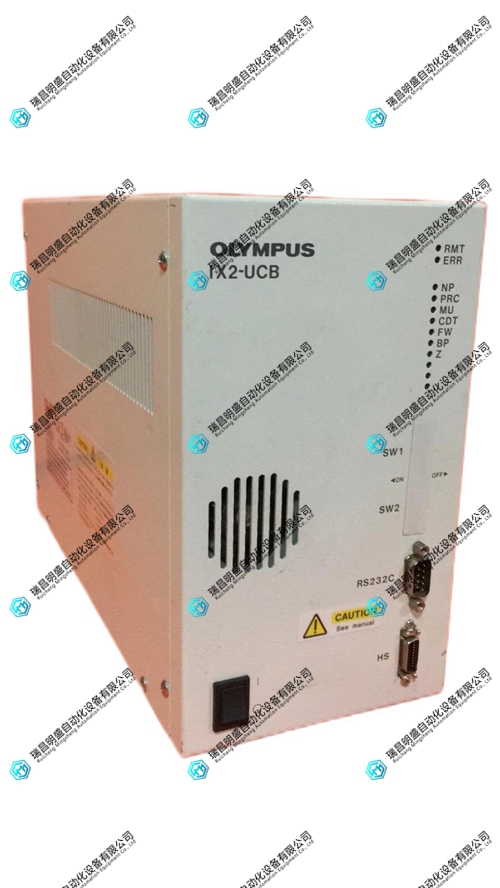

OLYMPUS IX2-UCB-2 显微镜控制箱 产品图片
