Honeywell 900G32-0001 数字输入模块 PDF资料

1.产 品 资 料 介 绍：

Honeywell 900G32-0001 是 ControlEdge HC900 系统的一款32通道数字量输入模块，用于采集现场设备的开关状态信号并转换为控制器可处理的数字量数据。以下是该型号的核心参数与特点。

产品参数

1. 输入通道：32路（灌入型），分2组，每组16个输入点

2. 输入电压范围：10 VDC 至 32 VDC，额定24 VDC

3. 导通/关断电平：导通≥9.5V，关断≤3.5V

4. 输入阻抗：6.9 kΩ（标称值）

5. 功耗：5V背板供电，最大215mA

产品特点

1. 专为HC900系统设计，提供高密度数字量信号采集能力

2. 支持灌入型（NPN）接线方式，适配现场常见传感器类型

3. 分组隔离设计，16个输入为一组，增强抗干扰能力

4. 具备输入滤波功能，可滤除现场信号抖动与噪声

5. 响应时间快速，关断到导通最大5ms

6. 前面板配有LED指示灯，每通道独立显示输入状态

7. 支持带电插拔，可在系统运行状态下更换模块

8. 模块化设计，安装于HC900机架指定槽位

9. 宽温工作范围，适应工业现场环境

10. 适用于石油化工、电力、水处理等需要采集大量开关量信号的工业控制场景

综上所述，Honeywell 900G32-0001 是一款高密度、高可靠性的数字量输入模块，为 HC900 控制系统提供了高效灵活的开关量信号采集能力

Honeywell 900G32-0001 数字输入模块  英文介绍

Honeywell 900G32-0001 is a 32 channel digital input module for the ControlEdge HC900 system, used to collect switch status signals from field devices and convert them into digital data that can be processed by the controller. The following are the core parameters and features of this model.

Product Parameters

Input channel: 32 channels (infusion type), divided into 2 groups, each with 16 input points

Input voltage range: 10 VDC to 32 VDC, rated 24 VDC

On/off level: On ≥ 9.5V, Off ≤ 3.5V

Input impedance: 6.9 k Ω (nominal value)

Power consumption: 5V backplane power supply, maximum 215mA

Product Features

Specially designed for HC900 system, providing high-density digital signal acquisition capability

Support injection type (NPN) wiring method, compatible with common sensor types on site

Group isolation design, with 16 inputs grouped together to enhance anti-interference ability

Equipped with input filtering function, it can filter out on-site signal jitter and noise

Fast response time, with a maximum of 5ms from shutdown to conduction

The front panel is equipped with LED indicator lights, and each channel independently displays the input status

Supports live plugging and unplugging, and can replace modules while the system is running

Modular design, installed in the designated slot of HC900 rack

Wide temperature working range, suitable for industrial site environment

Suitable for industrial control scenarios such as petrochemicals, electricity, water treatment, etc. that require the collection of a large number of switch signals

In summary, Honeywell 900G32-0001 is a high-density and highly reliable digital input module that provides efficient and flexible switch signal acquisition capabilities for the HC900 control system

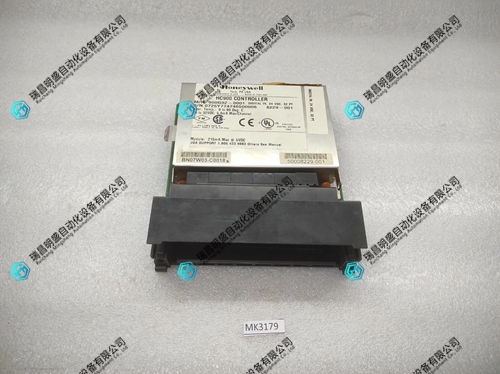

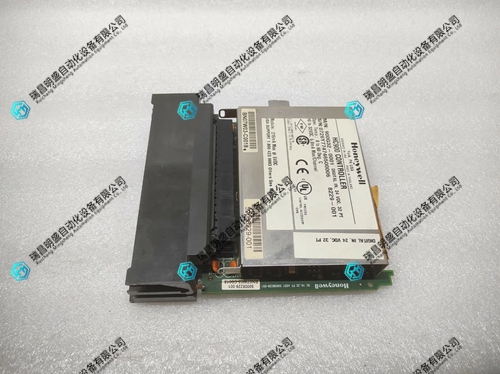

Honeywell 900G32-0001 数字输入模块 产品图片
