HONEYWELL 900A16-0103 模拟输入模块 PDF资料

1.产 品 资 料 介 绍：

Honeywell 900A16-0103 是 ControlEdge HC900 系统的一款16通道高电平模拟量输入模块，用于接收和处理现场仪表传来的电压或电流信号。以下是该型号的核心参数与特点。

产品参数

1. 输入通道：16路隔离模拟量输入

2. 输入信号类型：支持 ±10V、±5V、0-5V、0-10V、1-5V、0-20mA、4-20mA 等

3. 分辨率：15-16位

4. 转换时间：100ms/模块

5. 工作温度：-40°C 至 +70°C

产品特点

1. 支持电流信号测量，内置250Ω分流电阻

2. 16个通道相互隔离，隔离电压高达400VDC

3. 输入阻抗高（电压输入>1MΩ），对信号源影响小

4. 具备良好的噪声抑制能力，保证信号稳定性

5. A/D转换与CPU扫描同步，消除数据延迟

6. 支持工厂校准与现场校准两种模式

7. 前面板配有LED指示灯，显示运行状态与故障信息

8. 支持带电插拔，可在系统运行状态下更换

9. 采用36针欧式接线端子，接线牢固可靠

10. 适用于石油化工、电力、水处理等需要采集多路模拟信号的过程控制场景

综上所述，Honeywell 900A16-0103 是一款高密度、高可靠性的模拟量输入模块，为 HC900 控制系统提供了灵活精准的现场信号采集能力。

HONEYWELL 900A16-0103 模拟输入模块  英文介绍

Honeywell 900A16-0103 is a 16 channel high-level analog input module for the ControlEdge HC900 system, used to receive and process voltage or current signals from field instruments. The following are the core parameters and features of this model.

Product Parameters

Input channel: 16 isolated analog inputs

Input signal type: Supports ± 10V, ± 5V, 0-5V, 0-10V, 1-5V, 0-20mA, 4-20mA, etc

Resolution: 15-16 bits

Conversion time: 100ms/module

Working temperature: -40 ° C to+70 ° C

Product Features

Support current signal measurement, built-in 250 Ω shunt resistor

16 channels are isolated from each other, with an isolation voltage of up to 400VDC

High input impedance (voltage input>1M Ω), with minimal impact on the signal source

Having good noise suppression ability to ensure signal stability

Synchronize A/D conversion with CPU scanning to eliminate data latency

Support two modes of factory calibration and on-site calibration

The front panel is equipped with LED indicator lights, which display the operating status and fault information

Supports live plugging and unplugging, can be replaced while the system is running

Using 36 pin European style terminal blocks, the wiring is firm and reliable

Suitable for process control scenarios such as petrochemicals, electricity, water treatment, etc. that require the collection of multiple analog signals

In summary, Honeywell 900A16-0103 is a high-density and highly reliable analog input module that provides flexible and accurate on-site signal acquisition capabilities for the HC900 control system.

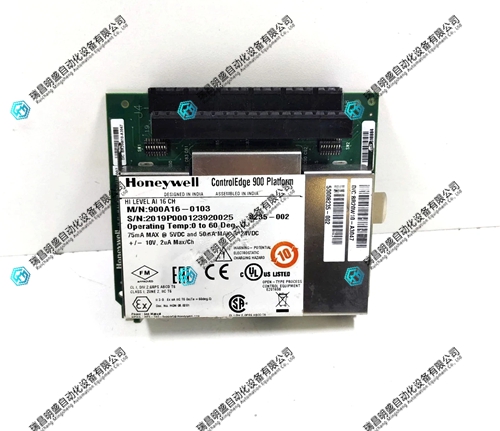

HONEYWELL 900A16-0103 模拟输入模块 产品图片
