Alstom VDG14AF9001ACH 位移继电器 PDF资料
1.产 品 资 料 介 绍：
Alstom VDG14AF9001ACH 位移继电器产品特点
属于VDG14系列电压中性点位移继电器，用于检测电力系统中的电压偏移。
采用重阻尼感应盘结构，具备可调的反时限电压特性。
线圈回路通过串联电抗器和电容器调谐至电源频率，确保测量精准。
由带抽头的自耦变压器供电，可通过插接桥轻松调节电压整定值。
电压超过整定值时，电抗器饱和并失谐，具备较高的连续额定电压能力。
采用独特的线圈绕制方法，确保各电压抽头上的时间/电压特性一致。
配备调谐短路绕组，在电源频率下产生最大转矩，对三次谐波电压敏感度低。
通过旋转刻度底座上的滚花盘可调节动作时间。
为单极继电器，仅提供单极版本。
采用高矫顽力永磁体进行盘面阻尼，可拆卸设计便于维护。
Alstom VDG14AF9001ACH 位移继电器参数
型号VDG14，品牌ALSTOM，配置代码AF9001ACH。
继电器类型为机电式电压保护继电器（位移继电器）。
电压类型为交流（AC）。
应用于中性点位移保护。
产地为印度。
总结：Alstom VDG14AF9001ACH 是一款专用于中性点位移保护的机电式继电器，采用感应盘结构，具备反时限特性和可调整定值，适用于交流电力系统的电压偏移监测与保护。
Alstom VDG14AF9001ACH 位移继电器 英文介绍
Alstom VDG14AF9001ACH displacement relay product features
Belonging to the VDG14 series voltage neutral point displacement relay, it is used to detect voltage offset in power systems.
Adopting a heavy damping induction disk structure with adjustable inverse time voltage characteristics.
The coil circuit is tuned to the power frequency by connecting reactors and capacitors in series, ensuring accurate measurement.
Powered by an autotransformer with taps, the voltage setting value can be easily adjusted through a plug-in bridge.
When the voltage exceeds the set value, the reactor saturates and becomes detuned, possessing a high continuous rated voltage capability.
Adopting a unique coil winding method to ensure consistent time/voltage characteristics on each voltage tap.
Equipped with a tuned short-circuit winding, it generates maximum torque at the power frequency and has low sensitivity to third harmonic voltage.
The action time can be adjusted by rotating the rolling disc on the scale base.
For single pole relays, only single pole versions are available.
High coercivity permanent magnets are used for disk damping, and the detachable design is easy to maintain.
Alstom VDG14AF9001ACH displacement relay parameters
Model VDG14, brand ALSTOM, configuration code AF9001ACH.
The relay type is an electromechanical voltage protection relay (displacement relay).
The voltage type is alternating current (AC).
Applied to neutral point displacement protection.
The place of origin is India.
Summary: Alstom VDG14AF9001ACH is an electromechanical relay specifically designed for neutral point displacement protection. It adopts an induction disk structure, has inverse time characteristics and adjustable settings, and is suitable for voltage offset monitoring and protection in AC power systems.

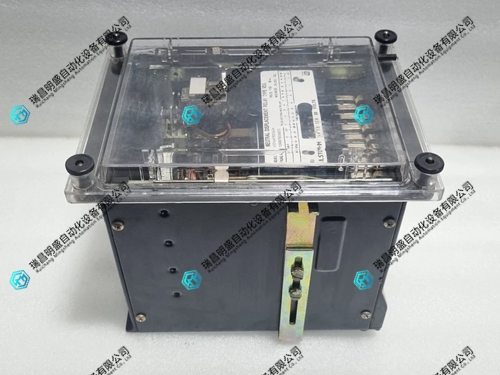

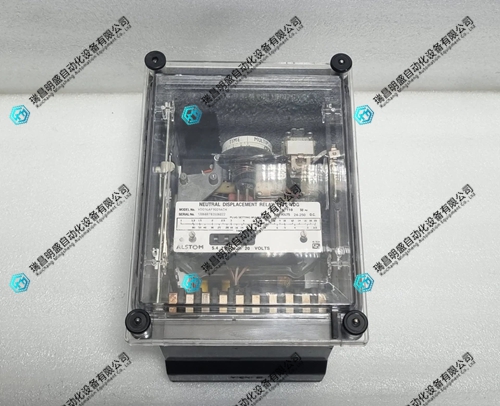

Alstom VDG14AF9001ACH 位移继电器 产品图片
