LAM 853-049542-173 温度控制组件 PDF资料
1.产 品 资 料 介 绍：
LAM 853-049542-173 是泛林半导体（Lam Research）为其等离子体刻蚀设备设计的一款核心射频（RF）控制与功率模块，是匹配器系统中的重要组成部分。
产品参数
产品型号：LAM 853-049542-173
核心功能：13.56MHz 1000W 射频功率放大、阻抗检测与实时调谐
工作频率：13.56 MHz
工作功率：1000 W
工作温度：20℃ 至 80℃
产品特点
集成功率放大与阻抗匹配控制于一体，节省安装空间
满载工作时反射功率极低，保护功放元件不受冲击
射频路径短，能量传输效率高，抗干扰能力强
内置温度补偿，温度变化时输出功率波动极小
支持宽范围直流输入，适配不同工厂电源标准
PCB采用加厚镀金工艺，耐腐蚀，使用寿命长
支持热插拔，日常维护保养方便快捷
平均无故障时间长，适合高产能连续生产
实时阻抗调谐响应快，有效保护射频发生器
专为先进制程刻蚀工艺设计，精度有保障
综上所述，LAM 853-049542-173 性能稳定、可靠性高，是保障高端刻蚀设备高效运行的关键组件。
LAM 853-049542-173 温度控制组件 英文介绍
LAM 853-049542-173 is a core radio frequency (RF) control and power module designed by Lam Research for its plasma etching equipment, and is an important component of the matching system.
Product Specifications
Product model: LAM 853-049542-173
Core functions: 13.56MHz 1000W RF power amplification, impedance detection, and real-time tuning
Operating frequency: 13.56 MHz
Working power: 1000 W
Working temperature: 20 ℃ to 80 ℃
Product Features
Integrated power amplification and impedance matching control, saving installation space
When operating at full load, the reflected power is extremely low, protecting the amplifier components from impact
Short RF path, high energy transmission efficiency, and strong anti-interference ability
Built in temperature compensation, with minimal output power fluctuations during temperature changes
Supports wide range DC input and adapts to different factory power standards
The PCB adopts thick gold plating process, which is corrosion-resistant and has a long service life
Support hot swapping, convenient and fast daily maintenance
Long average time between failures, suitable for high-capacity continuous production
Real time impedance tuning response is fast, effectively protecting the RF generator
Specially designed for advanced etching processes, with guaranteed accuracy
In summary, LAM 853-049542-173 has stable performance and high reliability, and is a key component for ensuring the efficient operation of high-end etching equipment.

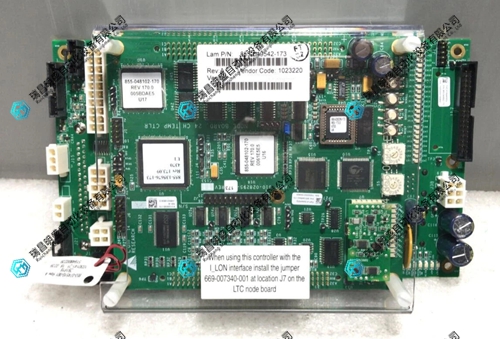

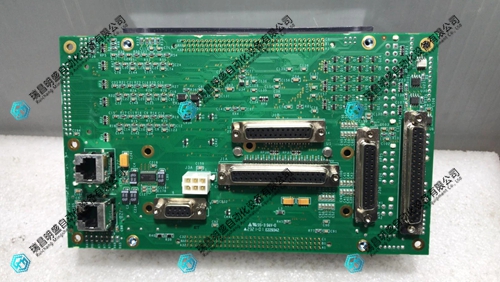

LAM 853-049542-173 温度控制组件 产品图片
