Panasonic MSMA041A1E 交流伺服电机 PDF资料
1.产 品 资 料 介 绍：
Panasonic MSMA041A1E 是松下 MINAS A 系列的一款 400W 交流伺服电机，属于小惯量型号，以高响应速度和紧凑设计为特点，适用于对定位精度和动态性能有要求的工业自动化场景。以下是该型号的核心特点与应用领域：
产品特点
额定功率 400W，额定电压 200V AC。
额定转矩 1.3 N·m，最大转矩 3.8 N·m。
最高转速 3000 r/min，加减速响应快。
小惯量设计，适合高动态响应的应用场合。
编码器分辨率 2500 p/r（增量式）。
防护等级 IP65，具备防尘和防喷射水能力。
适配 MINAS A 系列驱动器，配套使用性能最佳。
该型号属于已停产产品，市场流通多为二手或库存备件。
应用领域
工业机器人与机械手的关节驱动。
数控机床及 PCB 钻孔成型设备。
电子装配线中的精密定位与搬运。
半导体制造设备中的晶圆传输与定位。
包装机械与自动化流水线。
固晶机、焊线机等封装设备。
喷胶机、点胶机等精密流体控制设备。
科研实验及教学用运动控制平台。
结尾
总的来说，Panasonic MSMA041A1E 作为 MINAS A 系列 400W 级小惯量伺服电机，凭借高响应速度、紧凑体积及 IP65 防护等级，在工业机器人、数控机床及电子制造等领域中曾是主流的运动控制选择。由于其已停产，选购时需关注渠道与适配性。
Panasonic MSMA041A1E 交流伺服电机 英文介绍
The Panasonic MSMA041A1E is a 400W AC servo motor from the Panasonic MINAS A series. It belongs to the small inertia model and is characterized by high response speed and compact design. It is suitable for industrial automation scenarios that require positioning accuracy and dynamic performance. The following are the core features and application areas of this model:
Product Features
Rated power 400W, rated voltage 200V AC.
The rated torque is 1.3 N · m, and the maximum torque is 3.8 N · m.
The maximum speed is 3000 r/min, with fast acceleration and deceleration response.
Small inertia design, suitable for applications with high dynamic response.
Encoder resolution 2500 p/r (incremental).
Protection level IP65, with dustproof and anti spray water capabilities.
Suitable for MINAS A series drivers, with the best performance when used in conjunction.
This model belongs to discontinued products, and the market circulation is mostly second-hand or inventory spare parts.
Application Domain
Joint drive of industrial robots and robotic arms.
CNC machine tools and PCB drilling and forming equipment.
Precise positioning and handling in electronic assembly lines.
Wafer transfer and positioning in semiconductor manufacturing equipment.
Packaging machinery and automated assembly lines.
Packaging equipment such as solidification machines and wire bonding machines.
Precision fluid control equipment such as spray glue machines and dispensing machines.
Motion control platform for scientific research experiments and teaching.
ending
Overall, Panasonic MSMA041A1E, as a MINAS A series 400W class small inertia servo motor, was once the mainstream motion control choice in industrial robots, CNC machine tools, and electronic manufacturing due to its high response speed, compact size, and IP65 protection level. Due to its discontinuation, attention should be paid to channels and adaptability when purchasing.

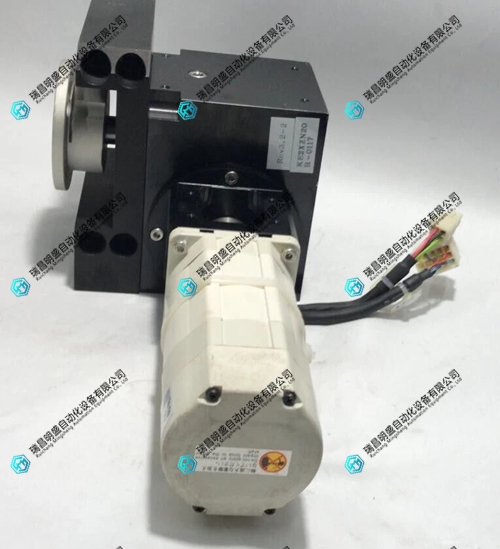

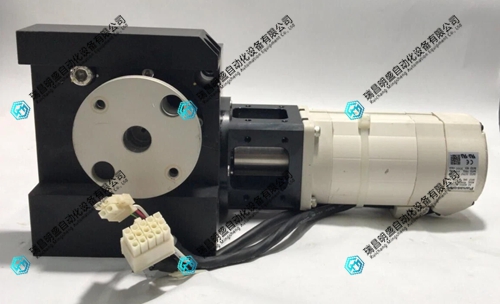

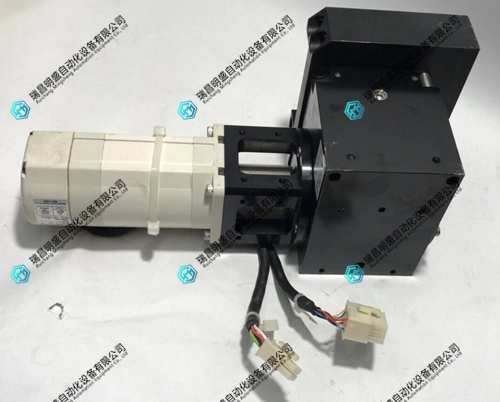

Panasonic MSMA041A1E 交流伺服电机 产品图片
