MC07B0008-5A3- 4-S0频率转换器 PDF资料
1.产 品 资 料 介 绍：

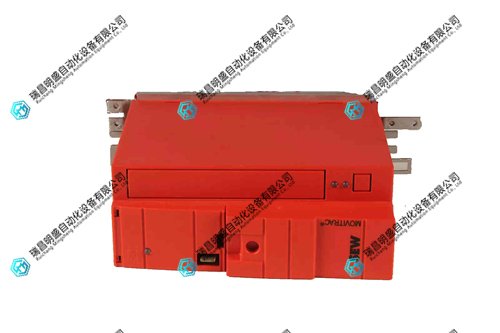

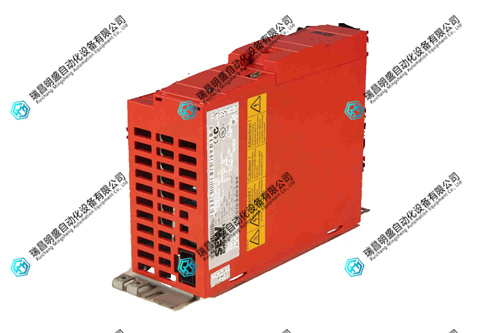

SEW MC07B0008-5A3-4-S0 是 MOVITRAC® B 系列的一款中小功率频率转换器（变频器），主要用于控制交流异步电机。下面是它的主要参数和应用概述：
基本参数
系列：MOVITRAC® B
额定功率：0.75 kW
额定电流：约 2.4 A（400 V 三相）
输入电压：三相 380–480 V AC
输出频率：可调，适用于 V/f 控制
防护等级：IP20（适合控制柜安装）
机框尺寸：紧凑型，便于系统集成
功能与特性
支持异步电机调速，采用 V/f 控制方式
内置制动斩波器，支持四象限运行，可实现制动和反向操作
提供过载保护、过流保护、过压/欠压保护和过热保护
可与 PLC 或 HMI 系统配合，通过数字/模拟 I/O 接口进行控制
支持速度曲线设置，可满足多段速度调节需求
适用场景
小型泵、风机、压缩机等工业设备
输送系统、包装机械、自动化生产线
需要可调速、启停控制及制动功能的异步电机应用
工业控制环境中，需要与 PLC 或自动化系统集成的场合
使用注意事项
驱动器为 IP20，仅适合安装在控制柜内或有防护的环境中
输出电流和功率需与所驱动电机匹配，避免过载
不适用于闭环矢量或高精度位置控制要求的场合
调试和参数设置需根据电机类型、负载特性和工艺要求进行
SEW MC07B0008-5A3-4-S0 is MOVITRAC ® A small to medium power frequency converter (inverter) in the B series, mainly used for controlling AC asynchronous motors. Here are its main parameters and application overview:
Basic Parameters
Series: MOVITRAC ® B
Rated power: 0.75 kW
Rated current: approximately 2.4 A (400 V three-phase)
Input voltage: three-phase 380-480V AC
Output frequency: adjustable, suitable for V/f control
Protection level: IP20 (suitable for control cabinet installation)
Frame size: Compact, easy to integrate system
Features and Functions
Support asynchronous motor speed regulation, using V/f control mode
Built in brake chopper, supports four quadrant operation, can achieve braking and reverse operation
Provide overload protection, overcurrent protection, overvoltage/undervoltage protection, and overheating protection
Can be coordinated with PLC or HMI systems and controlled through digital/analog I/O interfaces
Support speed curve setting to meet multi-stage speed adjustment requirements
Applicable scenarios
Industrial equipment such as small pumps, fans, compressors, etc
Conveyor system, packaging machinery, automated production line
Application of asynchronous motors requiring adjustable speed, start stop control, and braking functions
In industrial control environments, where integration with PLC or automation systems is required
Precautions for use
The driver is IP20 and is only suitable for installation in control cabinets or protected environments
The output current and power need to be matched with the driven motor to avoid overload
Not suitable for situations requiring closed-loop vector or high-precision position control
Debugging and parameter settings should be based on the motor type, load characteristics, and process requirements
