EVS9321-EP伺服驱动逆变器 PDF资料
1.产 品 资 料 介 绍：
LENZE EVS9321-EP 伺服驱动逆变器简介
LENZE EVS9321-EP 属于 9300 系列伺服驱动器中的紧凑型单轴型号，专为高性能位置控制、速度控制和扭矩控制而设计。这一系列以可靠性强、调试灵活、支持广泛的伺服和异步电机而在自动化行业广泛应用。
EVS9321-EP 适合中小功率应用，拥有丰富的扩展接口，是包装机械、输送系统以及高速工站设备典型的驱动方案。
主要特性
三种控制模式一体化
支持伺服控制、矢量控制及 U/f 曲线控制，适配各种机械传动需求。可驱动多类电机
包括同步伺服电机、异步电机及部分永磁电机，适用于设备改造或混合驱动系统。内置位置控制功能
可独立完成定位、电子齿轮、电子凸轮等运动任务，减少外部控制器负担。EP 版本扩展能力强
“EP” 型号通常带有特定通信与扩展配置，可支持更广的系统集成需求。参数调试便捷
配合 Lenze Global Drive Control（GDC）软件，可快速完成电机辨识、调试与诊断。
典型技术参数（9300 系列 9321 档参考）
9321 属于较小功率段型号，如需精确的额定电流与功率，我可帮你进一步确认。
输入电源：三相 400V 级
功率等级：通常在 0.75～1.5 kW 范围
控制方式：伺服矢量控制 / 速度控制 / V/f 控制
编码器接口：支持增量编码器、旋变等（视配置）
通讯接口：EP 版本可选 Lenze 专属现场总线或扩展模块
保护功能：过流、短路、过温、欠压、编码器故障、过载保护
冷却方式：自然风冷或外部风冷
环境温度：一般 0…+40 °C（满载）
EVS9321-EP伺服驱动逆变器 英文介绍
Introduction to LENZE EVS9321-EP Servo Drive Inverter
The LENZE EVS9321-EP is a compact single axis model in the 9300 series servo drives, designed specifically for high-performance position control, speed control, and torque control. This series is widely used in the automation industry due to its strong reliability, flexible debugging, and support for a wide range of servo and asynchronous motors.
EVS9321-EP is suitable for small and medium power applications, with rich expansion interfaces, and is a typical driving solution for packaging machinery, conveyor systems, and high-speed station equipment.
Key Features
Integration of three control modes
Supports servo control, vector control, and U/f curve control, adapting to various mechanical transmission requirements.
Can drive multiple types of motors
Including synchronous servo motors, asynchronous motors, and some permanent magnet motors, suitable for equipment modification or hybrid drive systems.
Built in position control function
It can independently complete motion tasks such as positioning, electronic gears, and electronic camshafts, reducing the burden on external controllers.
EP version has strong scalability
The "EP" model usually comes with specific communication and expansion configurations, which can support a wider range of system integration requirements.
Convenient parameter debugging
Combined with Lenze Global Drive Control (GDC) software, motor identification, debugging, and diagnosis can be quickly completed.
Typical Technical Parameters (9300 Series 9321 Grade Reference)
9321 belongs to the smaller power range model. If you need accurate rated current and power, I can help you further confirm.
Input power supply: three-phase 400V level
Power level: usually in the range of 0.75 to 1.5 kW
Control mode: servo vector control/speed control/V/f control
Encoder interface: supports incremental encoders, rotary encoders, etc. (depending on configuration)
Communication interface: EP version can choose Lenze exclusive fieldbus or expansion module
Protection functions: overcurrent, short circuit, over temperature, under voltage, encoder fault, overload protection
Cooling method: natural air cooling or external air cooling
Environmental temperature: generally 0...+40 ° C (full load)

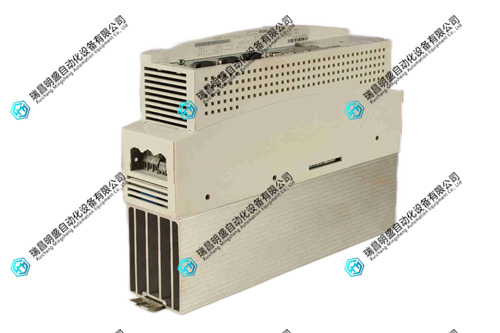

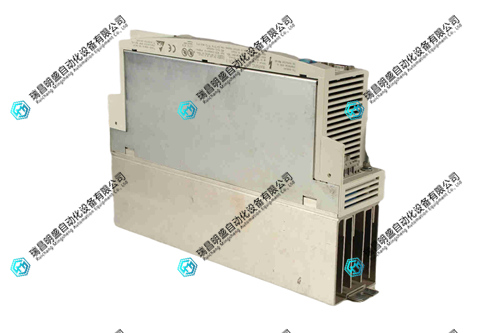

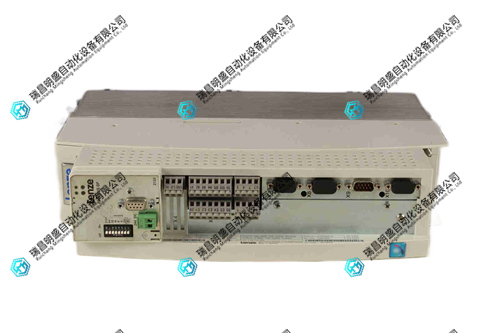

EVS9321-EP伺服驱动逆变器 产品展示
