NF1250-SEW塑壳断路器  PDF资料

1.产 品 资 料 介 绍：

Mitsubishi NF1250-SEW 塑壳断路器简介

NF1250-SEW 属于三菱电机（Mitsubishi Electric）NF 系列的大容量塑壳断路器（MCCB），用于低压配电系统中的主回路保护。
此系列以高分断能力、稳定可靠和适应性强著称，常用于工业级电力系统、工厂配电柜以及大功率设备的主保护回路。

型号中的 “1250” 表示该断路器的壳架等级电流为 1250A，能满足中大型负载回路的保护需求。

主要特点

• 大容量保护能力：适用于高电流回路，可保护负载及配电线路免受过载、短路损害。

• 高分断能力设计：可承受大电流故障条件，适用于高要求工业环境。

• 结构坚固耐用：采用工业级材料制造，机械寿命和电气寿命长。

• 脱扣器配置灵活：SEW 型通常配备电子式脱扣单元，可对长延时、短延时和瞬时保护进行设定。

• 安装简便：支持面板或柜内安装，适用于多种配电系统架构。

• 安全性能优良：具备绝缘保护、防接触设计，增强设备及人员安全。

典型技术参数范围（NF1250 类常规参考）

实际参数因具体脱扣单元配置略有差异，以下为常见范围：

• 壳架等级电流：1250A

• 额定电流：视脱扣器设定范围可调整

• 极数：常见为 3 极（3P）

• 脱扣单元：电子式（长延时/短延时/瞬时可设）

• 额定电压：一般为低压 AC（如 AC400/690V）

• 分断能力：依据版本可能为中—高分断等级

• 安装方式：面板安装或螺栓固定安装

• 应用：主进线、分段保护、大功率设备回路保护

典型应用

• 工厂主配电柜

• 大型生产设备主电源保护

• 配电系统分段/馈线保护

• 商业、工业建筑低压配电系统

• 高功率电机、压缩机、泵类设备的电源保护

NF1250-SEW塑壳断路器 英文介绍

Introduction to Mitsubishi NF1250-SEW Molded Case Circuit Breaker

NF1250-SEW is a high-capacity molded case circuit breaker (MCCB) belonging to Mitsubishi Electric's NF series, used for main circuit protection in low-voltage distribution systems.

This series is known for its high breaking capacity, stability, reliability, and strong adaptability. It is commonly used in industrial power systems, factory distribution cabinets, and main protection circuits for high-power equipment.

The "1250" in the model indicates that the shell level current of the circuit breaker is 1250A, which can meet the protection requirements of medium and large load circuits.

Main Features

Large capacity protection capability: Suitable for high current circuits, it can protect loads and distribution lines from overload and short circuit damage.

High breaking capacity design: capable of withstanding high current fault conditions, suitable for high demand industrial environments.

Durable and sturdy structure: Made of industrial grade materials, it has a long mechanical and electrical lifespan.

Flexible release configuration: SEW models are usually equipped with electronic release units, which can be set for long delay, short delay, and instantaneous protection.

Easy to install: Supports panel or cabinet installation, suitable for various distribution system architectures.

Excellent safety performance: equipped with insulation protection and anti contact design, enhancing equipment and personnel safety.

Typical technical parameter range (NF1250 standard reference)

The actual parameters may vary slightly due to the specific configuration of the trip unit, and the following are common ranges:

Shell level current: 1250A

Rated current: adjustable according to the setting range of the release device

Pole number: commonly 3 poles (3P)

Release unit: electronic (long delay/short delay/instantaneous adjustable)

Rated voltage: generally low voltage AC (such as AC400/690V)

Breaking ability: Depending on the version, it may have a medium to high breaking level

Installation method: panel installation or bolt fixed installation

Application: Main incoming line, segmented protection, high-power equipment circuit protection

Typical Applications

Factory main distribution cabinet

Main power protection for large-scale production equipment

Distribution system segmentation/feeder protection

Low voltage distribution system for commercial and industrial buildings

Power protection for high-power motors, compressors, and pumps

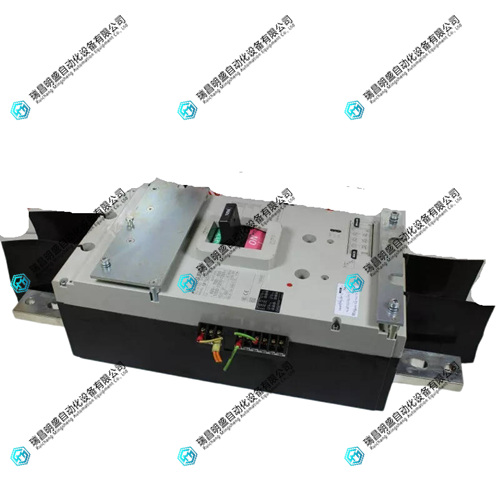

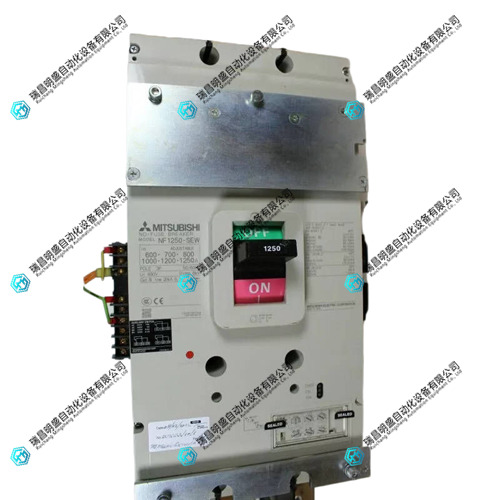

NF1250-SEW塑壳断路器 产品展示
