EVS9322-EP伺服驱动器 PDF资料
1.产 品 资 料 介 绍：
Lenze EVS9322-EP 伺服驱动器简介
EVS9322-EP 属于 Lenze 9300 系列的一款伺服定位驱动器，用于实现位置、速度、扭矩三种控制方式。该型号适合中小功率伺服系统，特别是对精度、动态响应有较高要求的工业设备。
主要性能与特点
定位控制功能完善
内置伺服定位控制器，可直接执行点位、跟随、插补等动作控制逻辑。高动态响应
驱动器支持快速电流环和速度环调节，能显著提升系统响应速度与稳定度。支持多种编码器反馈
兼容常见增量式编码器、绝对值编码器等，可实现高精度闭环控制。可扩展通信接口
可根据系统需求添加现场总线模块，用于与 PLC、运动控制器集成。多重保护功能
对过流、过温、过压、接地故障以及电机堵转均具备保护能力。
额定参数范围（EVS9322-EP 典型配置）
输入电源：三相 400–480 V AC
额定输出功率：约 0.75 kW
额定输出电流：约 2.5 A
运行频率范围：0–数百 Hz（视应用设定）
冷却方式：自然散热 / 风道散热（安装在控制柜内）
防护等级：IP20
安装方式：面板式安装，适合控制柜内部布局
适用场景
包装、装配、电子制造设备
中小型定位机构
搬运机械、送料系统
对重复定位精度有要求的自动化设备
EVS9322-EP伺服驱动器 英文介绍
Introduction to Lenze EVS9322-EP servo drive
EVS9322-EP is a servo positioning driver belonging to the Lenze 9300 series, used to achieve three control modes: position, speed, and torque. This model is suitable for small and medium power servo systems, especially industrial equipment with high requirements for accuracy and dynamic response.
Main Performance and Characteristics
Complete positioning control function
Built in servo positioning controller, which can directly execute action control logic such as point positioning, following, interpolation, etc.
High dynamic response
The driver supports fast current loop and speed loop regulation, which can significantly improve system response speed and stability.
Support multiple encoder feedback
Compatible with common incremental encoders, absolute value encoders, etc., it can achieve high-precision closed-loop control.
Scalable communication interface
Fieldbus modules can be added according to system requirements for integration with PLCs and motion controllers.
Multiple protection functions
It has the ability to protect against overcurrent, overheating, overvoltage, grounding faults, and motor stalling.
Rated parameter range (typical configuration of EVS9322-EP)
Input power supply: three-phase 400-480 V AC
Rated output power: approximately 0.75 kW
Rated output current: approximately 2.5 A
Operating frequency range: 0-100 Hz (depending on application settings)
Cooling method: natural heat dissipation/air duct heat dissipation (installed inside the control cabinet)
Protection level: IP20
Installation method: panel installation, suitable for internal layout of control cabinets
Applicable scenarios
Packaging, assembly, and electronic manufacturing equipment
Small and medium-sized positioning mechanisms
Handling machinery, feeding system
Automated equipment with requirements for repeated positioning accuracy

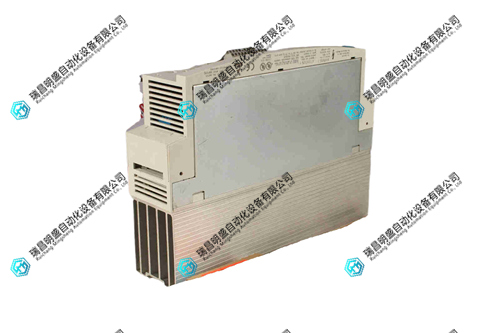

EVS9322-EP伺服驱动器 产品展示
