AEG MODICON 6051-042.23964模拟输入输出模块 PDF资料
1.产 品 资 料 介 绍：
AEG Modicon 6051-042.23964 模拟输入输出模块简介
AEG Modicon 6051-042.23964 是一款集 模拟量输入与输出 于一体的双功能 I/O 模块，主要用于中大型自动化系统中需要高精度数据采集与控制输出的场合。它适合安装在 Modicon 控制平台的专用机架上，通过背板总线与主 CPU 通讯。
主要性能特点
1. 多通道模拟量处理
同时具备输入与输出功能，可减少单独模块数量
支持常见的工业模拟信号，例如电流型（如 4–20 mA）、电压型（如 0–10 V）
通道之间具备良好的隔离与抗干扰能力
2. 高精度采集能力
输入部分具备较高分辨率，能够稳定采集压力、温度、流量、位移等连续信号
内部采用稳定的 ADC/转换电路，在工业噪声环境下依然保持低漂移与低噪声
3. 输出控制平滑稳定
输出通道可用于驱动变送器、调节阀、变频器等模拟控制设备
输出信号稳定，不易跳变，有利于精密调节过程
4. 与 Modicon 系统深度兼容
模块通过机架背板与主处理器通信，无需额外接口
支持系统自诊断、通道状态监视等基础功能
模块设计遵循 Modicon 控制框架的规格，可长期稳定运行
AEG MODICON 6051-042.23964模拟输入输出模块 英文介绍
Introduction to AEG Modicon 6051-042.23964 Analog Input/Output Module
AEG Modicon 6051-04.23964 is a dual function I/O module that integrates analog input and output. It is mainly used in situations where high-precision data acquisition and control output are required in medium to large automation systems. It is suitable for installation on a dedicated rack of the Modicon control platform and communicates with the main CPU through a backplane bus.
Main performance characteristics
1. Multi channel analog processing
Simultaneously possessing input and output functions, it can reduce the number of individual modules
Support common industrial analog signals, such as current type (e.g. 4-20 mA), voltage type (e.g. 0-10 V)
Good isolation and anti-interference ability between channels
2. High precision acquisition capability
The input part has high resolution and can stably collect continuous signals such as pressure, temperature, flow rate, displacement, etc
Internally, stable ADC/conversion circuits are used to maintain low drift and low noise even in industrial noise environments
3. Smooth and stable output control
The output channel can be used to drive analog control devices such as transmitters, regulating valves, and frequency converters
The output signal is stable and not prone to jumping, which is beneficial for precise adjustment process
4. Deeply compatible with Modicon system
The module communicates with the main processor through the rack backplane without the need for additional interfaces
Support basic functions such as system self diagnosis and channel status monitoring
The module design follows the specifications of the Modicon control framework and can run stably for a long time

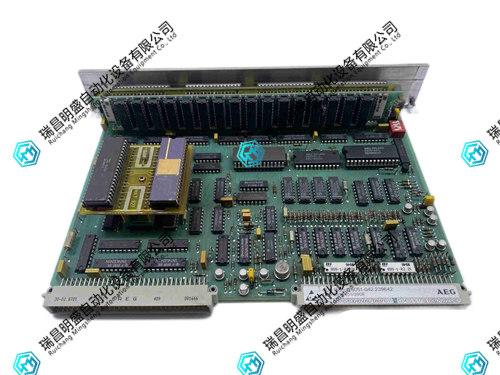

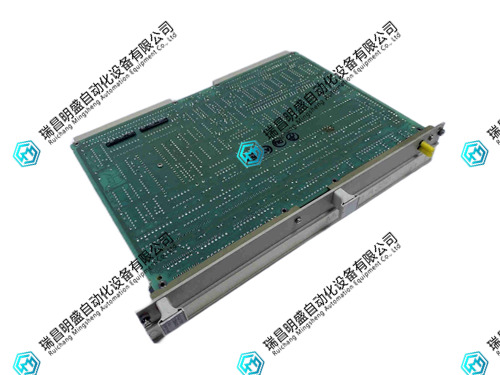

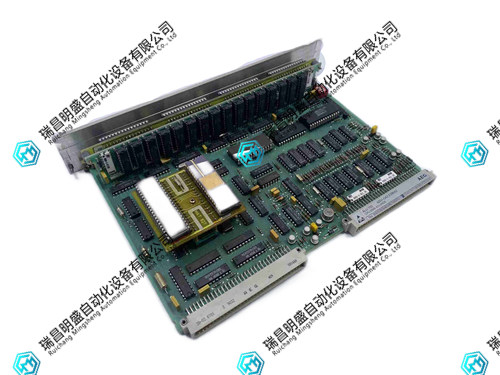

AEG MODICON 6051-042.23964模拟输入输出模块 产品展示
