AEG MODICON AS-J812-000远程 I/O 适配器 PDF资料
1.产 品 资 料 介 绍：
AEG MODICON AS-J812-000 远程 I/O 适配器简介
AS-J812-000 属于早期 AEG / Modicon 的 Remote I/O 系列，用来把分布在生产线各处的 I/O 模块整合到主控制器系统中。它承担的是“远程站点的通信桥梁”角色，为 PLC 提供稳定的远程数据通道。
主要功能与特性
1. Remote I/O 站接口
负责在主 PLC 与远端 I/O 机架之间进行数据交换，使远端模块表现得像本地 I/O 一样可被扫描与控制。
2. 支持 800 系列远程 I/O 架构
常搭配 800 系列 I/O 模块使用，用于构建分布式 I/O 系统，让 I/O 点可以部署在不同区域，减少布线长度与复杂度。
3. 稳定的现场通信能力
具备工业级抗干扰能力，适用于噪声较强的电气现场，适配器在完成地址识别、数据刷新、模块状态管理等方面表现可靠。
4. 独立供电与背板安装
模块通常安装在远程 I/O 的背板上，并由独立 24V DC 电源支持；工作时可同时管理多个 I/O 模块。
典型应用场景
大型设备的远程开关量与模拟量采集
车间不同区域之间的分布式 I/O 布置
PLC 主站与多个远程子站的数据通讯
老旧 AEG / Modicon 系统扩展远程 I/O
工厂改造中保持旧系统兼容性
产品特点总结
为远程 I/O 架构提供主干接口
适用于多模块、多点位的扩展应用
通信稳定、适应工业场合
能够在遗留系统中继续使用，维护价值高
AEG MODICON AS-J812-000远程 I/O 适配器 英文介绍
Introduction to AEG MODICON AS-J812-000 Remote I/O Adapter
AS-J812-000 belongs to the early AEG/Modicon Remote I/O series, which is used to integrate I/O modules distributed throughout the production line into the main controller system. It plays the role of a "communication bridge for remote sites" and provides a stable remote data channel for PLCs.
Main functions and features
1. Remote I/O station interface
Responsible for data exchange between the main PLC and remote I/O racks, making remote modules behave like local I/O that can be scanned and controlled.
2. Support 800 series remote I/O architecture
Often used in conjunction with 800 series I/O modules to build distributed I/O systems, allowing I/O points to be deployed in different areas, reducing wiring length and complexity.
3. Stable on-site communication capability
Equipped with industrial grade anti-interference capability, suitable for electrical sites with strong noise, the adapter performs reliably in completing address recognition, data refreshing, module status management, and other aspects.
4. Independent power supply and backplane installation
The module is usually installed on the backplane of remote I/O and supported by an independent 24V DC power supply; Multiple I/O modules can be managed simultaneously during work.
Typical application scenarios
Remote switch and analog acquisition of large equipment
Distributed I/O layout between different areas of the workshop
Data communication between PLC master station and multiple remote sub stations
Extended remote I/O for old AEG/Modicon systems
Maintain compatibility with old systems during factory renovation
Summary of Product Features
Provide backbone interface for remote I/O architecture
Suitable for multi module and multi-point expansion applications
Stable communication and adaptability to industrial environments
Can continue to be used in legacy systems with high maintenance value

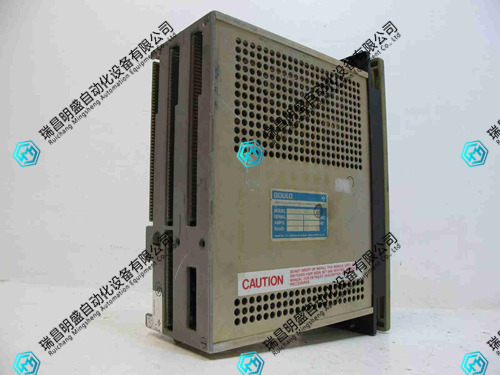

AEG MODICON AS-J812-000远程 I/O 适配器 产品展示
