AEG MODICON BLC6S9机箱 PDF资料
1.产 品 资 料 介 绍：

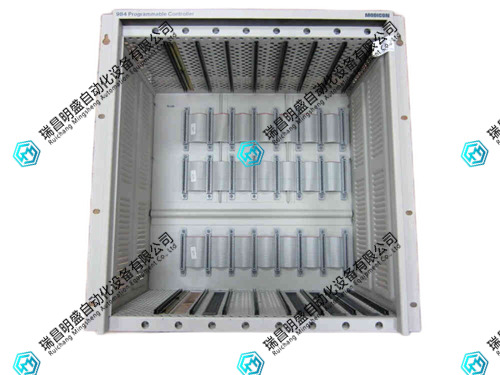

AEG MODICON BLC6S9 机箱
BLC6S9 是 Modicon 系列中用于安装与承载控制模块的标准机箱（底座/机架），为 PLC 系统提供稳定的机械支撑、电气连接与背板通信环境。它是整个控制系统的基础结构之一，负责为 CPU、输入输出模块、通信模块等提供插槽、电源分配和数据总线通道，是构建完整控制站点的核心硬件平台。
主要作用
模块安装载体
为各类控制模块提供固定位置与标准插槽，保证模块安全、稳固地安装。背板通信支持
机箱内部集成数据总线，使 CPU 与所有 I/O 模块之间能够实现高速、同步的数据交换。电源分配
为模块提供统一的电源分布通道，确保各插槽获得稳定的工作电压。系统扩展基础
可作为主机箱或扩展机箱，与其他模块共同组成完整的控制系统。
结构与特性
采用工业结构设计，具有较强抗震、抗干扰和耐用性。
插槽布局清晰，兼容 Modicon 系列的多种功能模块。
背板通信线路经过专门设计，确保数据传输的同步性与可靠性。
接线整齐、维护方便，有利于现场快速更换模块或扩点。
支持连续运行环境，适用于长期使用的工业控制系统。
典型应用场景
中大型自动化控制柜内部的核心安装平台
工厂生产线的主控制站点
需要多点扩展的分布式控制系统
老旧 Modicon 系统的改造、扩容或维保项目
电力、化工、冶金、制造等行业的集中控制区域
AEG MODICON BLC6S9机箱 英文介绍
AEG MODICON BLC6S9 chassis
BLC6S9 is a standard chassis (base/rack) in the Modicon series used for installing and carrying control modules, providing stable mechanical support, electrical connections, and backplane communication environment for PLC systems. It is one of the fundamental structures of the entire control system, responsible for providing slots, power distribution, and data bus channels for CPU, input/output modules, communication modules, etc. It is the core hardware platform for building a complete control station.
main function
Module installation carrier
Provide fixed positions and standard slots for various control modules to ensure safe and stable installation.
Backplane communication support
The integrated data bus inside the chassis enables high-speed and synchronous data exchange between the CPU and all I/O modules.
Power distribution
Provide a unified power distribution channel for the module to ensure stable operating voltage for each slot.
System Expansion Fundamentals
It can be used as a host box or expansion box to form a complete control system together with other modules.
Structure and Characteristics
Adopting industrial structural design, it has strong seismic resistance, anti-interference and durability.
The slot layout is clear and compatible with various functional modules of the Modicon series.
The backplane communication line is specially designed to ensure the synchronization and reliability of data transmission.
Neat wiring and easy maintenance facilitate quick module replacement or expansion on site.
Supports continuous operation environment and is suitable for industrial control systems that are used for a long time.
Typical application scenarios
Core installation platform inside large and medium-sized automation control cabinets
The main control station of the factory production line
Distributed control system requiring multi-point expansion
Renovation, expansion, or maintenance projects for old Modicon systems
Centralized control areas for industries such as electricity, chemical, metallurgy, and manufacturing
