AEG MODICON B805-016输入输出模块 PDF资料
1.产 品 资 料 介 绍：
AEG MODICON B805-016 输入输出模块
B805-016 是 Modicon 系统中常见的综合型 I/O 模块，集输入与输出功能于一体，用于在控制器与现场设备之间建立双向信号通道。它适合用于点数适中、动作与检测需求并存的工况，为系统提供可靠的数据采集与动作驱动能力，是老式自动化系统中常用的通用 I/O 单元。
模块主要功能
输入信号采集
能够接收来自传感器、按钮、限位开关、保护触点等设备的信号，并实时传输给 CPU。输出动作控制
根据 PLC 程序逻辑输出指令，驱动继电器、电磁阀、小型执行机构等设备执行动作。双向数据同步
输入状态和输出状态均可通过背板与控制器保持同步，用于监控或逻辑判断。节省机架空间
将多种 I/O 功能整合在单一模块中，适合点数有限又需双向联动的场合。
结构与特性
输入与输出通道数量均衡，可满足一般工业点位需求。
输入端具备抗干扰设计，可适应现场复杂电磁环境。
输出端驱动能力稳定，适合频繁动作或周期性设备控制。
模块采用标准插槽结构，与 Modicon 800/984 等系列机架兼容。
接线端子布局清晰，方便安装、维护与快速替换。
典型应用场景
中小型设备的本地控制
同一区域内既有检测信号又需执行动作的工艺点
包装、机械加工、输送系统等节奏性设备
化工、建材、食品加工等行业的常规控制环节
老旧 Modicon 系统的点位扩展与维保
AEG MODICON B805-016输入输出模块 英文介绍
AEG MODICON B805-016 Input/Output Module
B805-016 is a common integrated I/O module in Modicon systems, which integrates input and output functions and is used to establish bidirectional signal channels between controllers and field devices. It is suitable for working conditions with moderate point count and simultaneous action and detection requirements, providing reliable data acquisition and action driving capabilities for the system. It is a commonly used general-purpose I/O unit in old-fashioned automation systems.
Main functions of the module
Input signal acquisition
Capable of receiving signals from sensors, buttons, limit switches, protective contacts, and other devices, and transmitting them in real-time to the CPU.
Output action control
According to the PLC program logic output instructions, drive relays, solenoid valves, small actuators and other equipment to perform actions.
Bidirectional data synchronization
Both input and output states can be synchronized with the controller through the backplane for monitoring or logical judgment.
Save rack space
It integrates multiple I/O functions in a single module, which is suitable for occasions where the number of points is limited and two-way linkage is required.
Structure and Characteristics
The number of input and output channels is balanced, which can meet the general industrial site requirements.
The input end has anti-interference design and can adapt to complex electromagnetic environments on site.
The output drive capability is stable and suitable for frequent or periodic device control.
The module adopts a standard slot structure and is compatible with series racks such as Modicon 800/984.
The wiring terminal layout is clear, convenient for installation, maintenance, and quick replacement.
Typical application scenarios
Local control of small and medium-sized devices
Process points within the same area that require both detection signals and execution of actions
Rhythmic equipment such as packaging, mechanical processing, and conveying systems
Conventional control processes in industries such as chemical, building materials, and food processing
Point expansion and maintenance of the old Modicon system

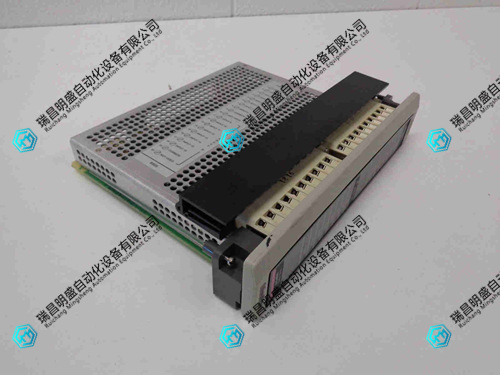

AEG MODICON B805-016输入输出模块 产品展示
