AEG MODICON DAP216N输出模块 PDF资料
1.产 品 资 料 介 绍：
AEG MODICON DAP216N 输出模块
DAP216N 属于 Modicon 系列中较为常用的输出类模块，用于将 PLC 的逻辑结果转换成现场设备能够直接执行的电气控制信号。它通常安装在 I/O 机架上，为继电器、接触器、电磁阀以及其他执行机构提供可靠的输出通道，是工业自动化系统中不可或缺的动作控制单元。
主要功能
输出控制信号
根据 CPU 程序运行结果生成通断或动作指令，驱动各种执行设备。负载驱动能力
适用于标准工业负载，能够长期保持稳定输出。动作隔离保护
内置隔离结构，有助于减少来自负载侧的干扰对系统的影响。状态同步与反馈
输出端状态可通过背板同步到 CPU，便于监控和逻辑诊断。
结构与性能特点
拥有多通道输出，可满足一机架内多点动作需求。
输出响应速度稳定，可维护一致的系统节奏。
与 AEG/Modicon 体系兼容度高，支持 800 系列和相关旧式平台。
适用于连续性运行的场景，能承受较高频次的动作切换。
接线端子布置明确，方便维护与现场更换。
典型应用场景
驱动电磁阀、继电器线圈、接触器等常规执行元件
机械设备的启动、停止、分段动作控制
汽车制造、食品加工、化工/能源、水处理等自动化产线
老旧 Modicon 系统的维保、扩点与替代项目
多点同步控制、顺序逻辑动作执行
AEG MODICON DAP216N输出模块 英文介绍
AEG MODICON DAP216N output module
DAP216N is a commonly used output module in the Modicon series, used to convert the logical results of PLC into electrical control signals that can be directly executed by field devices. It is usually installed on the I/O rack, providing reliable output channels for relays, contactors, solenoid valves, and other actuators, and is an indispensable action control unit in industrial automation systems.
Main functions
Output control signal
Generate on/off or action instructions based on the running results of CPU programs to drive various execution devices.
Load driving capability
Suitable for standard industrial loads, able to maintain stable output for a long time.
Action isolation protection
Built in isolation structure helps reduce the impact of interference from the load side on the system.
Status synchronization and feedback
The output status can be synchronized to the CPU through the backplane for easy monitoring and logical diagnosis.
Structure and Performance Characteristics
Having multi-channel output, it can meet the multi-point action requirements within one rack.
The output response speed is stable and can maintain a consistent system rhythm.
High compatibility with AEG/Modicon system, supporting 800 series and related legacy platforms.
Suitable for continuous operation scenarios, able to withstand frequent action switching.
The wiring terminal layout is clear, facilitating maintenance and on-site replacement.
Typical application scenarios
Drive conventional actuators such as solenoid valves, relay coils, contactors, etc
Control of starting, stopping, and segmented actions of mechanical equipment
Automated production lines for automobile manufacturing, food processing, chemical/energy, water treatment, etc
Maintenance, expansion, and replacement projects for the old Modicon system
Multi point synchronous control, sequential logic action execution

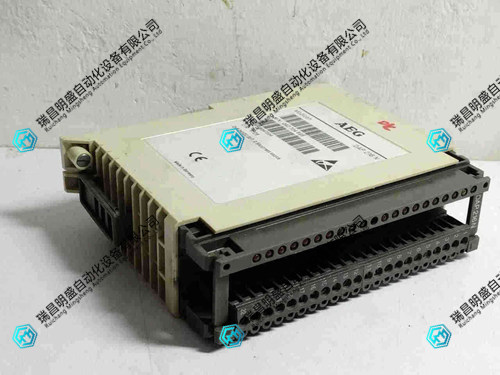

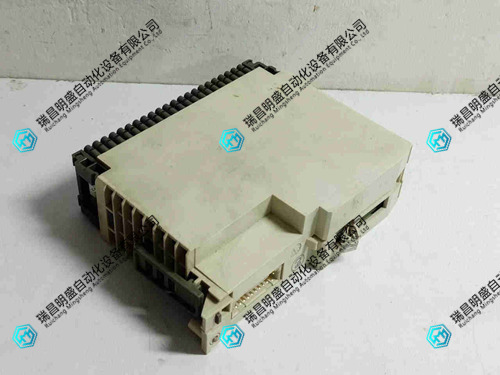

AEG MODICON DAP216N输出模块 产品展示
