AEG MODICON DR-D020-001无刷伺服驱动器 PDF资料
1.产 品 资 料 介 绍：
AEG Modicon DR-D020-001 无刷伺服驱动器简介
DR-D020-001 是 AEG Modicon 系列专为工业自动化运动控制设计的无刷伺服驱动器。它用于驱动无刷伺服电机，将控制器输出的逻辑指令转化为高精度电机运动信号，实现位置、速度和扭矩的精确控制。该模块常用于要求高动态响应和精密控制的工业应用中。
功能定位
接收运动控制器或 PLC 的指令，对无刷伺服电机进行驱动控制。
支持闭环控制，实现高精度位置、速度和扭矩控制。
提供运动状态反馈，便于控制器实现实时调整。
可在多轴运动系统中与其他驱动器同步协调，实现复杂动作控制。
技术特点
高性能无刷电机驱动，效率高、寿命长、维护需求低。
支持 PWM 或脉冲控制模式，实现精确定位。
内置保护功能，如过流、过压、过温和短路保护，提高系统安全性。
低噪声、低振动设计，适合精密机械和高要求工业环境。
与 Modicon 系列运动控制模块兼容，可快速集成到现有控制系统。
结构与使用特点
模块采用标准工业安装方式，便于在控制柜或机架中固定。
接线端口布局合理，便于与电机及控制器连接。
LED 状态指示灯显示驱动器运行状态及报警信息，便于现场调试和维护。
工业级设计，耐振动、耐灰尘、抗电磁干扰，适应复杂工业环境。
AEG MODICON DR-D020-001无刷伺服驱动器 英文介绍
Introduction to AEG Modicon DR-D020-001 Brushless Servo Drive
DR-D020-001 is a brushless servo drive designed by AEG Modicon series specifically for industrial automation motion control. It is used to drive brushless servo motors, converting the logic instructions output by the controller into high-precision motor motion signals, achieving precise control of position, speed, and torque. This module is commonly used in industrial applications that require high dynamic response and precision control.
functional positioning
Receive instructions from the motion controller or PLC to drive and control the brushless servo motor.
Support closed-loop control to achieve high-precision position, speed, and torque control.
Provide motion status feedback to facilitate real-time adjustment of the controller.
It can synchronize and coordinate with other drivers in a multi axis motion system to achieve complex motion control.
Technical Features
High performance brushless motor drive, high efficiency, long lifespan, and low maintenance requirements.
Support PWM or pulse control mode to achieve precise positioning.
Built in protection functions, such as overcurrent, overvoltage, overtemperature, and short-circuit protection, enhance system safety.
Low noise and low vibration design, suitable for precision machinery and high demand industrial environments.
Compatible with Modicon series motion control modules, it can be quickly integrated into existing control systems.
Structure and usage characteristics
The module adopts standard industrial installation method, which is easy to fix in the control cabinet or rack.
The layout of the wiring ports is reasonable, making it easy to connect with motors and controllers.
The LED status indicator light displays the running status and alarm information of the driver, which is convenient for on-site debugging and maintenance.
Industrial grade design, resistant to vibration, dust, and electromagnetic interference, suitable for complex industrial environments.

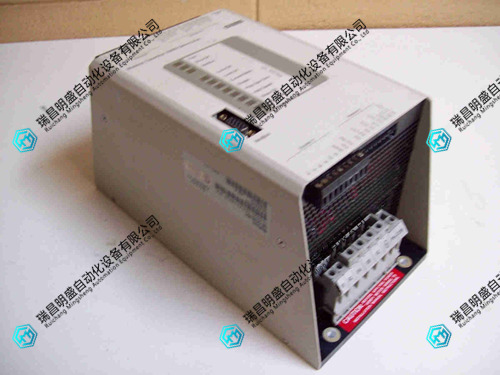

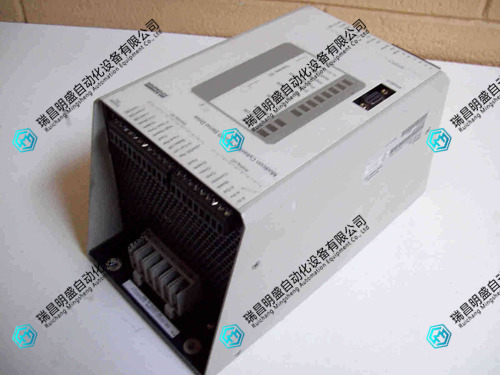

AEG MODICON DR-D020-001无刷伺服驱动器 产品展示
