AEG MODICON AS-B573-005输出模块 PDF资料
1.产 品 资 料 介 绍：

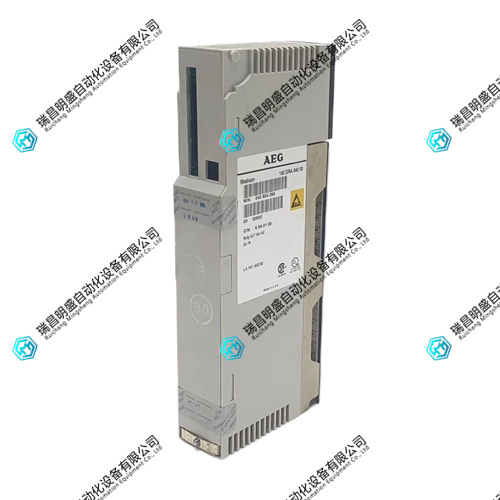

AEG Modicon 140DRA84000 继电器输出模块简介
140DRA84000 是 AEG Modicon 系列的继电器输出模块，主要用于将控制器的逻辑信号转换为可驱动现场执行装置的开关量输出。它在自动化系统中负责驱动电磁阀、接触器、小型电机及指示灯等设备，是工业控制系统中重要的输出接口单元。
功能定位
将控制器输出信号转换为独立的继电器动作，驱动外部设备。
支持多路独立输出通道，可同时控制多个负载。
提供状态指示和基础保护功能，便于运行监控与维护。
可与 Modicon 系列输入模块和控制器协同工作，实现完整的控制闭环。
技术特点
每路输出独立，支持多种电气负载类型。
内置保护功能，防止短路或过载对模块或控制系统造成影响。
输出响应稳定，适合工业环境中连续或频繁动作的负载控制。
采用工业级继电器，保证高可靠性和长期使用寿命。
结构与使用特点
模块采用标准插卡式设计，方便安装于 Modicon 控制架或机柜中。
端子布局清晰，便于现场接线与维护。
LED 指示灯显示每路通道状态，方便故障排查和运行监控。
结构紧凑，适合分布式 I/O 系统或控制柜集成。
AEG MODICON AS-B573-005输出模块 英文介绍
Introduction to AEG Modicon 140DRA84000 Relay Output Module
140DRA84000 is a relay output module of the AEG Modicon series, mainly used to convert the logic signals of the controller into switch outputs that can drive on-site execution devices. It is responsible for driving equipment such as solenoid valves, contactors, small motors, and indicator lights in automation systems, and is an important output interface unit in industrial control systems.
functional positioning
Convert the controller output signal into independent relay actions to drive external devices.
Supports multiple independent output channels and can control multiple loads simultaneously.
Provide status indication and basic protection functions for easy operation monitoring and maintenance.
Can work in conjunction with Modicon series input modules and controllers to achieve a complete control loop.
Technical Features
Each output is independent and supports multiple types of electrical loads.
Built in protection function to prevent short circuits or overloads from affecting modules or control systems.
Stable output response, suitable for continuous or frequent load control in industrial environments.
Adopting industrial grade relays to ensure high reliability and long-term service life.
Structure and usage characteristics
The module adopts a standard plug-in card design, making it easy to install in Modicon control racks or cabinets.
The terminal layout is clear and convenient for on-site wiring and maintenance.
The LED indicator light displays the status of each channel, facilitating troubleshooting and operation monitoring.
Compact structure, suitable for distributed I/O systems or control cabinet integration.

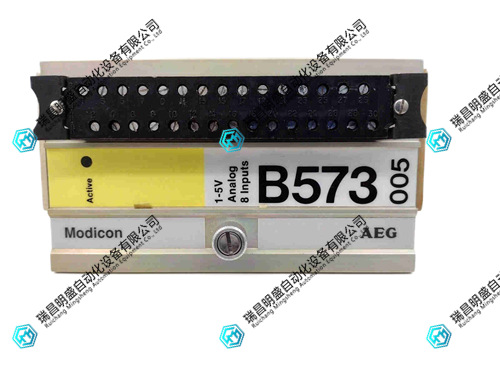

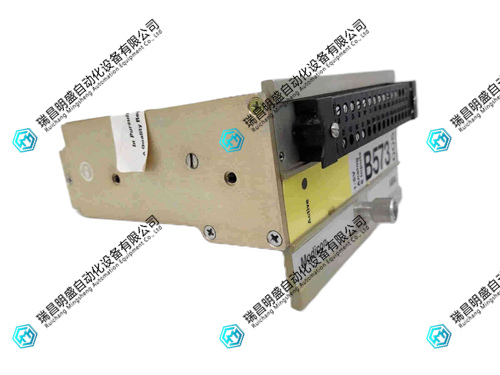

AEG MODICON AS-B573-005输出模块 产品展示
