AEG MODICON 239639控制器模块 PDF资料
1.产 品 资 料 介 绍：
产品名称： AEG MODICON 239639 控制器模块
产品类型： 控制器模块（Controller Module）
所属系列： Modicon PLC 工业控制系统
一、产品概述
239639 是 Modicon 系列中的控制器模块，负责处理逻辑运算、数据采集与输出控制。作为控制系统的核心单元，该模块可以管理多个 I/O 模块和外围设备，实现自动化设备的集中控制。它广泛应用于工业生产线、过程控制和设备监控系统中。
二、主要功能
执行用户逻辑程序，实现顺序控制、逻辑运算和数据处理。
通过系统总线与 I/O 模块通信，实现数字量和模拟量的采集与输出。
提供系统状态监控功能，包括运行状态、故障诊断与报警输出。
支持参数存储与任务调度，保证系统长期稳定运行。
兼容 Modicon 系列 I/O 模块，适合系统扩展和升级。
三、产品特点
工业级设计，保证长期连续运行的可靠性。
模块化结构，可轻松插装至 Modicon 机架系统中。
配有状态指示灯，便于快速判断运行状态和故障诊断。
稳定性能高，可满足中大型自动化系统的控制需求。
兼容性强，适合老系统维护与扩展。
四、典型应用
工厂自动化生产线的集中控制与监控。
电力、能源、化工、冶金等连续生产过程的核心控制。
机械自动化设备的逻辑控制和数据处理。
生产线状态监控与报警系统。
老旧 Modicon 系统的核心控制单元替换或升级。
五、使用环境要求
工业环境温度范围内使用，干燥且无凝露。
安装于机架或控制柜内，保证散热条件良好。
电源与接线应符合系统规范，保证可靠运行。
AEG MODICON 239639控制器模块 英文介绍
Product Name: AEG MODICON 239639 Controller Module
Product type: Controller Module
Series: Modicon PLC Industrial Control System
1、 Product Overview
239639 is a controller module in the Modicon series, responsible for processing logical operations, data acquisition, and output control. As the core unit of the control system, this module can manage multiple I/O modules and peripheral devices, achieving centralized control of automation equipment. It is widely used in industrial production lines, process control, and equipment monitoring systems.
2、 Main functions
Execute user logic programs to achieve sequential control, logical operations, and data processing.
Communicate with the I/O module through the system bus to achieve the acquisition and output of digital and analog signals.
Provide system status monitoring functions, including operational status, fault diagnosis, and alarm output.
Support parameter storage and task scheduling to ensure long-term stable operation of the system.
Compatible with Modicon series I/O modules, suitable for system expansion and upgrade.
3、 Product Features
Industrial grade design ensures reliability for long-term continuous operation.
Modular structure, easy to plug into Modicon rack system.
Equipped with status indicator lights for quick assessment of operational status and fault diagnosis.
High stability performance, capable of meeting the control requirements of medium and large-scale automation systems.
Strong compatibility, suitable for maintaining and expanding old systems.
4、 Typical applications
Centralized control and monitoring of factory automation production lines.
The core control of continuous production processes such as electricity, energy, chemical industry, metallurgy, etc.
Logic control and data processing of mechanical automation equipment.
Production line status monitoring and alarm system.
Replace or upgrade the core control unit of the old Modicon system.
5、 Environmental requirements for use
Used within the temperature range of industrial environment, dry and without condensation.
Installed in the rack or control cabinet to ensure good heat dissipation conditions.
The power supply and wiring should comply with system specifications to ensure reliable operation.

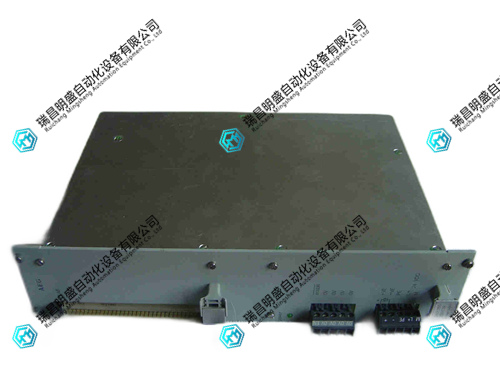

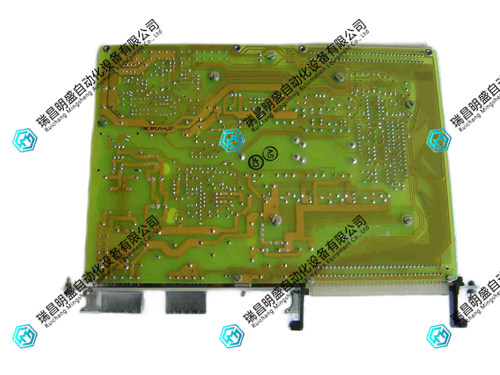

AEG MODICON 239639控制器模块 产品展示
