AEG MODICON 110-0092-1无刷伺服控制器 PDF资料
1.产 品 资 料 介 绍：
产品名称： AEG MODICON 110-0092-1 无刷伺服控制器
产品类型： 无刷电机伺服控制器（Brushless Servo Controller）
所属系列： AEG Modicon 工业伺服与运动控制平台
一、产品概述
110-0092-1 是一款专用于驱动无刷伺服电机的工业控制器，负责实现电机的速度、转矩与位置控制。它适配多种 Modicon 工控系统结构，经常用于对运动精度与响应速度有较高要求的自动化设备。该控制器以稳定性和动态性能著称，是众多老式自动化设备维保中的关键部件之一。
二、主要功能
驱动无刷伺服电机，实现速度、转矩与位置闭环控制。
内置功率驱动电路，直接向电机输出稳定三相驱动信号。
支持编码器反馈，用于形成高速闭环调节。
提供过载、过压、欠压、过温等保护机制。
与上位 Modicon 系统通信，实现运动参数设定与状态监控。
可执行启动、停止、急停与加减速控制任务。
三、产品特点
动态响应快，适用于高频动作或高精度定位工况。
控制稳定性强，运行平稳，噪音低。
支持多种模式切换（速度模式、位置模式、转矩模式）。
模块化设计，便于集成到现有控制柜或 Modicon 系统。
强化电气保护机制，有助于延长伺服电机与控制器寿命。
对老式 AEG Modicon 伺服平台兼容性好，易于替换维护。
四、典型应用
自动化生产线中的精确定位与重复动作控制。
包装机械的高速同步与张力控制。
CNC、机械臂等要求高响应速度的运动设备。
卷材设备、传输机构、移动平台等伺服驱动应用。
老旧 Modicon 运动控制系统的备件替换与维保工程。
AEG MODICON 110-0092-1无刷伺服控制器 英文介绍
Product Name: AEG MODICON 110-0092-1 Brushless Servo Controller
Product type: Brushless Servo Controller
Series: AEG Modicon Industrial Servo and Motion Control Platform
1、 Product Overview
110-0092-1 is an industrial controller specifically designed for driving brushless servo motors, responsible for achieving speed, torque, and position control of the motor. It is compatible with various Modicon industrial control system architectures and is often used in automation equipment that requires high motion accuracy and response speed. This controller is known for its stability and dynamic performance, and is one of the key components in the maintenance of many old-fashioned automation equipment.
2、 Main functions
Drive brushless servo motors to achieve closed-loop control of speed, torque, and position.
Built in power drive circuit, directly outputs stable three-phase drive signals to the motor.
Support encoder feedback for forming high-speed closed-loop regulation.
Provide protection mechanisms such as overload, overvoltage, undervoltage, and overheating.
Communicate with the upper Modicon system to achieve motion parameter setting and status monitoring.
Capable of executing start, stop, emergency stop, and acceleration/deceleration control tasks.
3、 Product Features
Fast dynamic response, suitable for high-frequency actions or high-precision positioning conditions.
Strong control stability, smooth operation, and low noise.
Support multiple mode switching (speed mode, position mode, torque mode).
Modular design facilitates integration into existing control cabinets or Modicon systems.
Strengthening electrical protection mechanisms can help extend the lifespan of servo motors and controllers.
Good compatibility with the old AEG Modicon servo platform, easy to replace and maintain.
4、 Typical applications
Accurate positioning and repetitive action control in automated production lines.
High speed synchronization and tension control of packaging machinery.
CNC、 Mechanical arms and other motion equipment that require high response speed.
Servo drive applications for coil equipment, transmission mechanisms, mobile platforms, etc.
Replacement and maintenance of spare parts for the old Modicon motion control system.

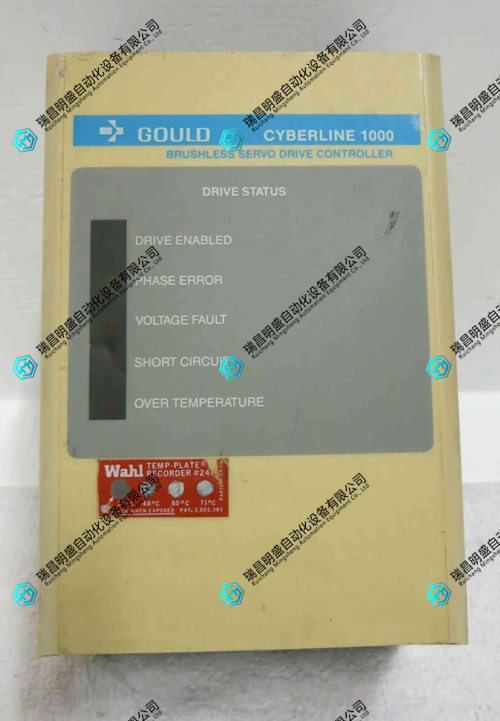

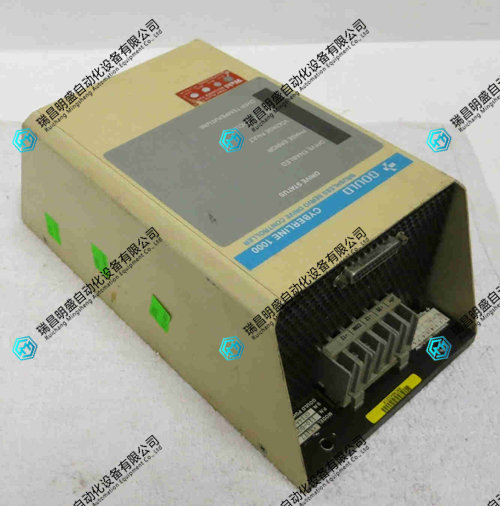

AEG MODICON 110-0092-1无刷伺服控制器 产品展示
