AEG MODICON AS-BDEO-21模拟输入模块 PDF资料
1.产 品 资 料 介 绍：
产品名称： AEG MODICON AS-BDEO-21 模拟输入模块
产品类型： 模拟量输入模块
所属系列： AEG Modicon 800 系列控制系统
一、产品概述
AS-BDEO-21 是一款用于采集现场模拟量信号的输入模块，能够将外部传感器输出的电压或电流模拟信号转换成控制器可处理的数字量。该型号常用于过程监控、设备运行值测量及自动化生产线的模拟量数据采集，是 AEG Modicon 800 系列中常见的模拟量接口模块。
二、主要功能
支持模拟量输入，可接收电压、温度、压力、流量等传感器输出信号。
内置 A/D 转换电路，将模拟信号转换成数字数据上传到 CPU。
提供基础信号处理能力，如滤波、稳定化处理等。
输入通道具备一定隔离与抗干扰能力，提高数据可靠性。
可实时监测输入状态，为控制系统提供准确的过程参数。
三、产品特点
多通道模拟采集，适用于多点测量需求。
转换精度稳定，可支持较宽范围的模拟量信号。
模块化设计，方便插装、替换与维护。
拥有输入状态指示功能，便于现场调试与监控。
与 AEG Modicon 系统完全兼容，可直接装入机架使用。
四、典型应用
温度、压力、液位、速度等现场模拟量采集。
工业过程控制与实时监测系统。
化工、能源、电力行业的连续生产设备监控。
自动化生产线数据采集和分析。
旧版 Modicon 控制系统的备件更换与维护。
五、使用环境要求（常规）
适应工业环境温度范围运行。
使用环境需保持无凝露、无强腐蚀气体。
模块以机架插装方式安装。
采用标准端子接线，现场布线简便。
AEG MODICON AS-BDEO-21模拟输入模块 英文介绍
Product Name: AEG MODICON AS-BDEO-21 Analog Input Module
Product type: Analog input module
Series: AEG Modicon 800 Series Control System
1、 Product Overview
AS-BDEO-21 is an input module used for collecting on-site analog signals, which can convert the voltage or current analog signals output by external sensors into digital quantities that can be processed by the controller. This model is commonly used for process monitoring, equipment operating value measurement, and analog data acquisition in automated production lines. It is a common analog interface module in the AEG Modicon 800 series.
2、 Main functions
Supports analog input and can receive sensor output signals such as voltage, temperature, pressure, and flow rate.
Built in A/D conversion circuit, converts analog signals into digital data and uploads it to the CPU.
Provide basic signal processing capabilities, such as filtering, stabilization processing, etc.
The input channel has certain isolation and anti-interference capabilities to improve data reliability.
Real time monitoring of input status can provide accurate process parameters for the control system.
3、 Product Features
Multi channel analog acquisition, suitable for multi-point measurement needs.
Stable conversion accuracy, capable of supporting a wide range of analog signals.
Modular design, convenient for insertion, replacement, and maintenance.
Equipped with input status indication function, convenient for on-site debugging and monitoring.
Fully compatible with AEG Modicon system, it can be directly installed in the rack for use.
4、 Typical applications
On site analog data collection of temperature, pressure, liquid level, speed, etc.
Industrial process control and real-time monitoring system.
Continuous production equipment monitoring in the chemical, energy, and power industries.
Automated production line data collection and analysis.
Replacement and maintenance of spare parts for the old Modicon control system.
5、 Environmental requirements for use (general)
Adapt to operating within the temperature range of industrial environments.
The usage environment should be kept free of condensation and strong corrosive gases.
The module is installed in a rack mounted manner.
Standard terminal wiring is used for easy on-site wiring.

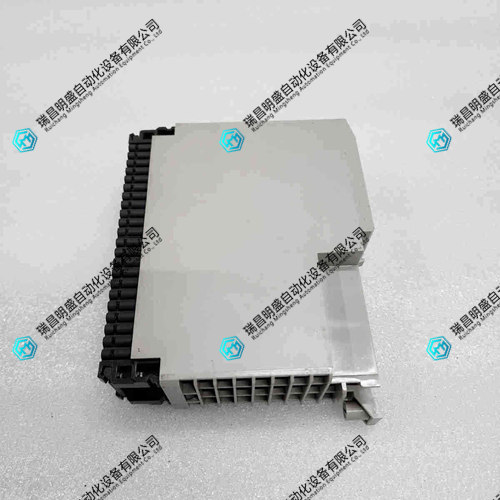

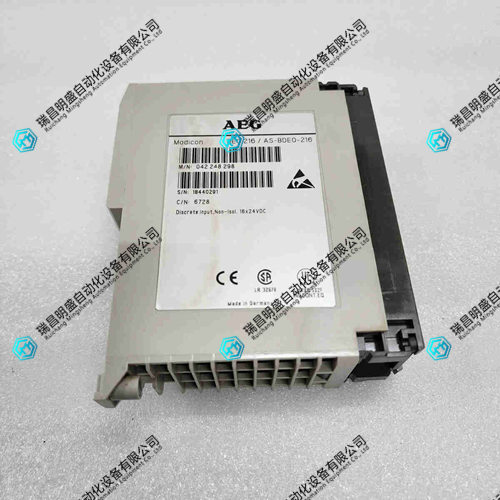

AEG MODICON AS-BDEO-21模拟输入模块 产品展示
