GIDINGS&LEWIS 501-03281-02机器控制模块 PDF资料

1.产 品 资 料 介 绍：

GIDINGS&LEWIS 501-03281-02 机器控制模块

产品概述

Giddings & Lewis 501-03281-02 机器控制模块是一种用于数控机床和工业自动化系统的核心控制单元。它主要负责协调机床各轴运动、执行机构动作和外围设备操作，将来自 CPU 板或上位控制系统的指令转化为具体的机械动作信号，实现机床或自动化设备的精确运行。

技术特点

• 多轴协调控制：支持多轴同步操作，实现复杂工件加工。

• 实时动作执行：快速处理控制指令，保证机床动作及时和精确。

• 闭环控制兼容：可与编码器、旋转变压器等反馈装置协作，实现高精度闭环控制。

• 模块化设计：可安装于控制机架或控制柜，方便维护和替换。

• 工业适应性强：抗干扰、耐振动，适应恶劣工业环境。

应用领域

1. 数控镗床与铣床
   控制工作台、刀架及主轴的动作，实现高精度加工。

2. 立式车床及复合加工中心
   协调多轴动作，实现车削、铣削、钻削等复合加工工序。

3. 自动化生产线
   控制机械手、输送装置或执行单元，实现动作同步和精确控制。

4. 机床升级与改造
   在老旧设备数控化改造中，作为核心控制模块，提高系统精度和稳定性。

5. 机器人及精密机械设备
   提供高精度控制信号，支持高速、高精度机械动作。

英文资料：

GIDINGS&LEWIS 501-03281-02 Machine Control Module

Product Overview

The Giddings&Lewis 501-03281-02 machine control module is a core control unit used for CNC machine tools and industrial automation systems. It is mainly responsible for coordinating the movements of various axes, actuator actions, and peripheral device operations of the machine tool, converting instructions from the CPU board or upper control system into specific mechanical action signals, and achieving precise operation of the machine tool or automation equipment.

Technical Features

Multi axis coordinated control: supports multi axis synchronous operation to achieve complex workpiece processing.

Real time action execution: Quickly process control instructions to ensure timely and accurate machine tool actions.

Closed loop control compatibility: It can cooperate with feedback devices such as encoders and rotary transformers to achieve high-precision closed-loop control.

Modular design: Can be installed on control racks or cabinets for easy maintenance and replacement.

Strong industrial adaptability: anti-interference, vibration resistant, and adaptable to harsh industrial environments.

Application field

CNC boring and milling machines

Control the movements of the worktable, tool holder, and spindle to achieve high-precision machining.

Vertical lathe and composite machining center

Coordinate multi axis actions to achieve composite machining processes such as turning, milling, and drilling.

Automatic production line

Control the robotic arm, conveying device, or execution unit to achieve synchronized and precise control of actions.

Machine tool upgrade and renovation

In the numerical control transformation of old equipment, as the core control module, it improves system accuracy and stability.

Robots and precision mechanical equipment

Provide high-precision control signals and support high-speed and high-precision mechanical actions.

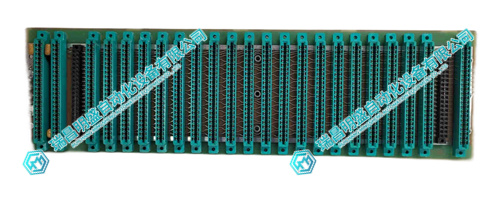

2.产      品      展      示
