1.产 品 资 料 介 绍：

GIDINGS&LEWIS NSM2302 步进电机

产品概述

Giddings & Lewis NSM2302 步进电机是一种高精度电机，用于数控机床和自动化设备的运动控制系统。它通过分步旋转实现精确位置控制，通常配合步进驱动器或伺服控制系统使用。该电机适用于对定位精度要求高、启动/停止频繁、负载变化大的工业应用场景。

技术特点

• 高精度定位：每步角度精准，确保机械动作的重复定位精度。

• 开环或闭环驱动：可与步进驱动器配合实现开环控制，也可配编码器实现闭环控制。

• 高扭矩输出：在低速、中速运转时提供稳定扭矩，满足负载要求。

• 耐用可靠：工业级设计，抗振动、耐高温，适应恶劣工况。

• 易于集成：标准法兰安装，可与各类机床或自动化装置直接对接。

• 低维护需求：无刷设计减少磨损，适合长期运行。

应用领域

1. 数控机床
   用于控制工作台、刀架或转台的精确定位，实现高精度加工。

2. 立式车床及复合加工中心
   协调多轴步进控制，实现复杂工件的车削和铣削动作。

3. 自动化生产线
   用于机械手、输送装置或定位平台，实现精确步进运动。

4. 测试与测量设备
   控制样品移动或仪器定位，实现高精度重复操作。

5. 机床升级与改造
   在老旧设备数控化改造中替换或补充定位电机，提高系统精度与可靠性。

英文资料：

GIDINGS&LEWIS NSM2302 stepper motor

Product Overview

Giddings&Lewis NSM2302 stepper motor is a high-precision motor used in motion control systems for CNC machine tools and automation equipment. It achieves precise position control through step-by-step rotation and is usually used in conjunction with stepper drivers or servo control systems. This motor is suitable for industrial applications that require high positioning accuracy, frequent starting/stopping, and large load changes.

Technical Features

High precision positioning: Accurate angle at each step ensures the repeated positioning accuracy of mechanical actions.

Open loop or closed-loop drive: It can be combined with a stepper driver to achieve open-loop control, or with an encoder to achieve closed-loop control.

High torque output: Provides stable torque at low and medium speeds to meet load requirements.

Durable and reliable: Industrial grade design, resistant to vibration, high temperature, and suitable for harsh working conditions.

Easy to integrate: standard flange installation, can be directly connected to various machine tools or automation devices.

Low maintenance requirements: Brushless design reduces wear and is suitable for long-term operation.

Application field

CNC machine tool

Used to control the precise positioning of workbenches, tool holders, or turntables, achieving high-precision machining.

Vertical lathe and composite machining center

Coordinate multi axis step control to achieve turning and milling actions for complex workpieces.

Automatic production line

Used for robotic arms, conveyors, or positioning platforms to achieve precise step movements.

Testing and measuring equipment

Control sample movement or instrument positioning to achieve high-precision repetitive operations.

Machine tool upgrade and renovation

Replace or supplement positioning motors in the numerical control transformation of old equipment to improve system accuracy and reliability.

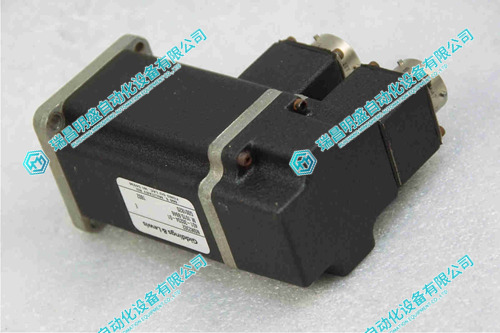

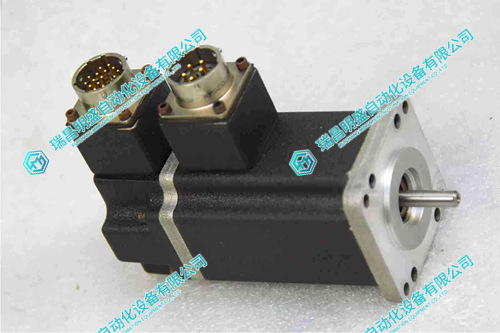

2.产      品      展      示
